HMC232 Series

HMC232 / HMC232LP4 / HMC232G8 / HMC232G7 / HMC232C8

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

HMC232 / HMC232LP4 / HMC232G8 / HMC232G7 / HMC232C8

Part	Test Frequency	Circuit	Supplier Device Package	Frequency Range [Max]	Frequency Range [Min]	Impedance	Topology	RF Type	Mounting Type	P1dB	Isolation	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Insertion Loss	IIP3 [Min]	IIP3	Supplied Contents	For Use With/Related Products	Utilized IC / Part	Contents	Frequency [Max]	Frequency [Min]	Type
Analog Devices Inc./Maxim Integrated HMC232LP4TR	12 GHz	SPDT	24-QFN (4x4)	12 GHz	0 Hz	50 Ohms	Absorptive	General Purpose	Surface Mount	27 dB	42 dB	24-VFQFN Exposed Pad	85 °C	-40 C	2.7 dB	50 dBm
Analog Devices Inc./Maxim Integrated HMC232ALP4ETR	6 GHz	SPDT	24-QFN (4x4)	12 GHz	0 Hz	50 Ohms	Absorptive	Radar	Surface Mount		50 dB	24-VFQFN Exposed Pad	85 °C	-40 C	1.5 dB		48 dBm
Analog Devices Inc./Maxim Integrated HMC232C8	6 GHz	SPDT	8-CSMD	8 GHz	0 Hz	50 Ohms		General Purpose		26 dBm	43 dB	8-SMD Gull Wing Exposed Pad	85 °C	-40 C	1.6 dB		46 dBm
Analog Devices Inc./Maxim Integrated HMC232G7	4 GHz	SPDT	7-SMD	6 GHz	0 Hz	50 Ohms	Absorptive	VSAT		27 dB	46 dB	7-SMD Gull Wing	85 °C	-40 C	1.4 dB		49 dBm
Analog Devices Inc./Maxim Integrated HMC232LP4E	12 GHz	SPDT	24-QFN (4x4)	12 GHz	0 Hz	50 Ohms	Absorptive	General Purpose	Surface Mount	27 dB	42 dB	24-VFQFN Exposed Pad	85 °C	-40 C	2.7 dB		50 dBm
Analog Devices Inc./Maxim Integrated HMC232	10 GHz	SPDT	Die	15 GHz	0 Hz	50 Ohms	Absorptive	VSAT		26 dBm	50 dB	Die	85 °C	-55 C	2.2 dB		49 dBm
Analog Devices Inc./Maxim Integrated HMC232C8TR	6 GHz	SPDT	8-CSMD	8 GHz	0 Hz	50 Ohms		General Purpose		26 dBm	43 dB	8-SMD Gull Wing Exposed Pad	85 °C	-40 C	1.6 dB		46 dBm

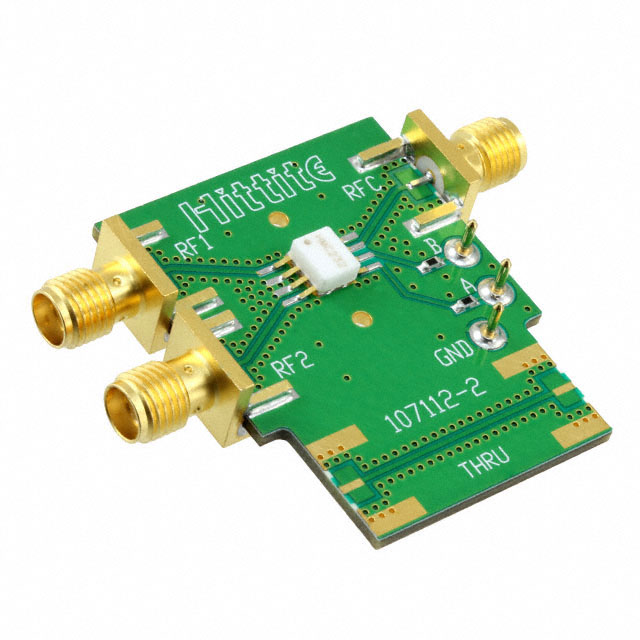

Analog Devices Inc./Maxim Integrated 107261-HMC232C8																		Board(s)	HMC232C8	HMC232C8	Board(s)	8 GHz	0 Hz	Switch SPDT
Analog Devices Inc./Maxim Integrated HMC232LP4	12 GHz	SPDT	24-QFN (4x4)	12 GHz	0 Hz	50 Ohms	Absorptive	General Purpose	Surface Mount	27 dB	42 dB	24-VFQFN Exposed Pad	85 °C	-40 C	2.7 dB	50 dBm
Analog Devices Inc./Maxim Integrated HMC232LP4ETR	12 GHz	SPDT	24-QFN (4x4)	12 GHz	0 Hz	50 Ohms	Absorptive	General Purpose	Surface Mount	27 dB	42 dB	24-VFQFN Exposed Pad	85 °C	-40 C	2.7 dB		50 dBm

Catalog

HMC232 / HMC232LP4 / HMC232G8 / HMC232G7 / HMC232C8

Description

The HMC232A is a nonreflective, SPDT, RF switch manufactured in the gallium arsenide (GaAs) process.The HMC232A operates from 100 MHz to 12 GHz with better than 1.5 dB insertion loss and 50 dB of isolation at 6 GHz and better than 2.5 dB insertion loss and 45 dB of isolation at 12 GHz. The HMC232A has a nonreflective design, and the RF ports are internally terminated to 50 Ω.The HMC232A switch operates using complementary negative control voltage logic lines of −7 V to −3 V and requires no bias supply.The HMC232A comes in a 24-lead, 4 mm × 4 mm LFCSP and operates from −40°C to +85°C.APPLICATIONSTest instrumentationMicrowave radios and very small aperture terminals (VSATs)Military radios, radars, and electronic counter measures (ECMs)Telecommunication infrastructure
