MS3102E16 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

RECEPT

Part	Fastening Type	Color	Shell Material	Insert Material	Shell Size - Insert	Connector Type	Grade	Voltage Rating (DC)	Voltage Rating (AC)	Termination	Mounting Feature	Primary Material	Current Rating	Shell Finish	Orientation	Mounting Type	Number of Positions	Ingress Protection	Applications	Shielding	Contact Material	Contact Finish - Mating	Qualification	Operating Temperature (Max)	Operating Temperature (Min)	Cable Opening	Shell Size - Insert Width	Shell Size - Insert Length	Current Rating Options
Amphenol Aerospace Operations MS3102E16-13P
Amphenol Aerospace Operations MS3102E16S-4P	Threaded	Olive Drab	Aluminum Alloy	Neoprene	16S-4	Male Pins Receptacle	Military	1250 VDC	900 VAC	Solder Cup	Flange	Metal	13 A	Cadmium Olive Drab Chromate	N (Normal)	Panel Mount	2	Environment Resistant	Marine Military	Unshielded	Copper Alloy	Silver	MIL-DTL-5015	125 °C	-55 °C
Amphenol Aerospace Operations MS3102E16S-8PX	Threaded	Olive Drab	Aluminum Alloy	Neoprene	16S-8	Male Pins Receptacle				Solder Cup	Flange	Metal		Cadmium Olive Drab Chromate	X	Panel Mount	5	Environment Resistant	Marine Military	Unshielded	Copper Alloy	Silver	MIL-5015	125 °C	-55 °C	0.875 in
Amphenol Aerospace Operations MS3102E16S-5P	Threaded	Olive Drab	Aluminum Alloy	Neoprene	16S-5	Male Pins Receptacle	Military			Solder Cup	Flange	Metal	13 A	Cadmium Olive Drab Chromate	N (Normal)	Panel Mount	3	Environment Resistant	Marine Military	Unshielded	Copper Alloy	Silver	MIL-DTL-5015	125 °C	-55 °C
Amphenol Aerospace Operations MS3102E16S-1PW

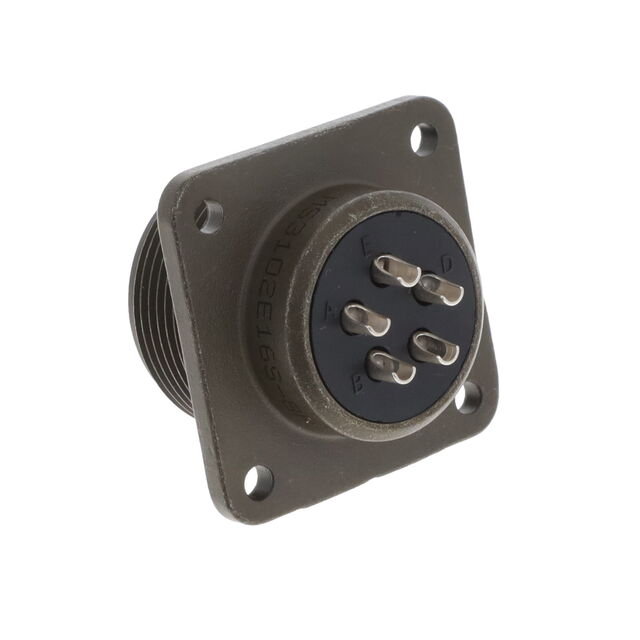

Amphenol Aerospace Operations MS3102E16S-8P	Threaded	Olive Drab	Aluminum Alloy	Neoprene	16S-8	Male Pins Receptacle				Solder Cup	Flange	Metal		Cadmium Olive Drab Chromate	N (Normal)	Panel Mount	5	Environment Resistant	Marine Military	Unshielded	Copper Alloy	Silver	MIL-5015	125 °C	-55 °C	0.875 in
Amphenol Aerospace Operations MS3102E16S-4SW
Amphenol Aerospace Operations MS3102E16-10P	Threaded	Olive Drab	Aluminum Alloy	Neoprene		Male Pins Receptacle				Solder Cup	Flange	Metal		Cadmium Olive Drab Chromate	N (Normal)	Panel Mount	3	Environment Resistant	Marine Military	Unshielded	Copper Alloy	Silver	MIL-5015	125 °C	-55 °C	0.875 in	10 mm	16 mm
Amphenol Aerospace Operations MS3102E16-12S
Amphenol Aerospace Operations MS3102E16-9P	Threaded	Olive Drab	Aluminum Alloy	Neoprene		Male Pins Receptacle	Military			Solder Cup	Flange	Metal		Cadmium Olive Drab Chromate	N (Normal)	Panel Mount	4	Environment Resistant	Marine Military	Unshielded	Copper Alloy	Silver	MIL-DTL-5015	125 °C	-55 °C		9 mm	16 mm	13A 23A
