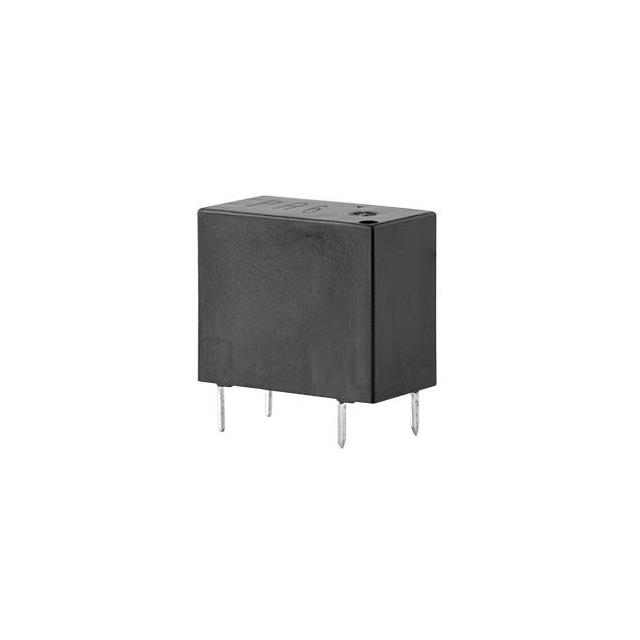

PR6-5V Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
RELAY GEN PURPOSE SPST 10A 5V
| Part | Relay Type | Contact Form | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Must Operate Voltage | Coil Voltage | Contact Rating (Current) | Operate Time | Load - Max Switching | Switching Voltage [Max] | Must Release Voltage | Contact Material | Termination Style | Mounting Type | Coil Type | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | General Purpose | SPST-NO (1 Form A) | 89.9 mA | 85 °C | -40 C | 5 ms | 3.5 VDC | 5 VDC | 10 A | 10 ms | 300 W 2770 VA | 30 VDC 277 VAC | 0.5 VDC | Silver Alloy | PC Pin | Through Hole | Non Latching | |
Same Sky (Formerly CUI Devices) | General Purpose | SPST-NO (1 Form A) | 89.9 mA | 85 °C | -40 C | 5 ms | 3.5 VDC | 5 VDC | 10 A | 10 ms | 300 W 2770 VA | 30 VDC 277 VAC | 0.5 VDC | Silver Alloy | PC Pin | Through Hole | Non Latching | 55.6 Ohms |
