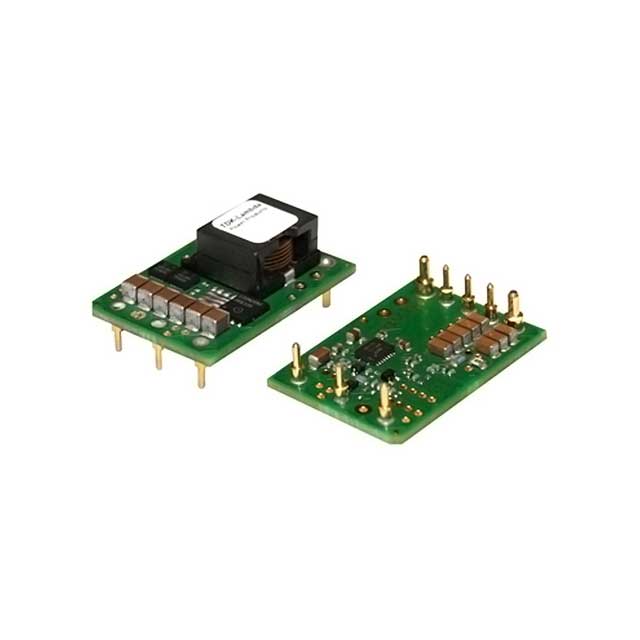

I6A24014 Series

Catalog

NON ISOLATED POL DC/DC CONVERTER, ITE, SIXTEENTH BRICK, 250 W, 3.3 V, 24 V, 14 A

Part	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Efficiency	Package / Case	Applications	Voltage - Output 1 [Max] [custom]	Voltage - Output 1 [Min] [custom]	Supplier Device Package	Mounting Type	Power (Watts)	Control Features	Voltage - Input (Min) [Min]	Features	Number of Outputs
TDK Corporation I6A24014A033V-003-R	14 A	12.7 mm	22.86 mm	1.3 in	12.7 mm	33 mm	22.9 mm	125 °C	-40 C	Non-Isolated PoL Module	98 %	Sixteenth Brick	ITE (Commercial)	24 V	3.3 V	Sixteenth Brick	Through Hole	250 W	Active Low Enable	9 V	OCP OTP Remote On/Off SCP	1
TDK Corporation I6A24014A033V-002-R	14 A	12.7 mm	22.86 mm	1.3 in	12.7 mm	33 mm	22.9 mm	125 °C	-40 C	Non-Isolated PoL Module	98 %	Sixteenth Brick	ITE (Commercial)	24 V	3.3 V	Sixteenth Brick	Through Hole	250 W	Active High Enable	9 V	OCP OTP Remote On/Off SCP	1
