WP57 Series

Catalog

LED RED/YLW DIFFUSED T-1 3/4 T/H

Part	Lens Style	Mounting Type	Height (Max) [Max] [z]	Millicandela Rating	Viewing Angle	Configuration	Color	Current - Test	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Wavelength - Dominant	Package / Case	Size / Dimension [diameter]	Lens Transparency	Lens Color	Wavelength - Peak	Lens Size	Lens Size	Wavelength - Dominant	Wavelength - Peak	Current - Test [custom]	Current - Test [custom]

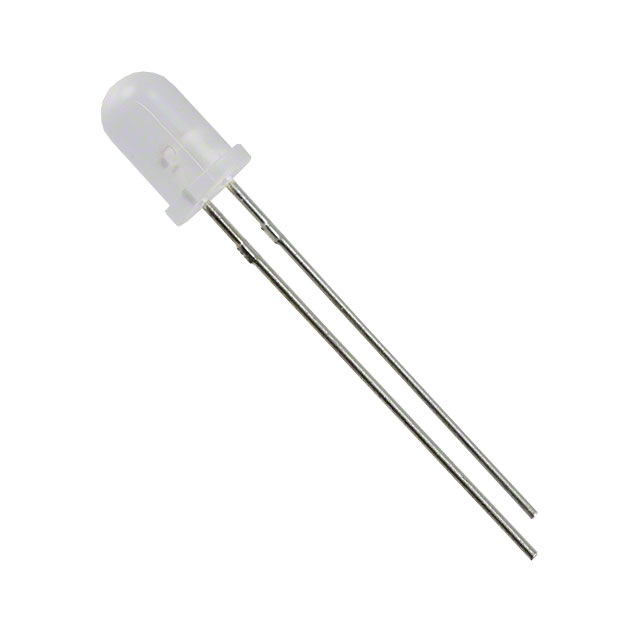

Kingbright WP57EYW	Round with Domed Top	Through Hole	8.6 mm	10 mcd 14 mcd	60 °	Bidirectional	Red Yellow	20 mA 20 mA	2 V 2.1 V	T-1 3/4	588nm Yellow 617nm Red	Radial	5 mm	Diffused	White	590 nm 627 nm	5 mm	T-1 3/4
Kingbright WP57GGD	Round with Domed Top	Through Hole	8.6 mm	20 mcd	60 °	Standard	Green	20 mA	2.2 V	T-1 3/4		Radial	5 mm	Diffused	Green	565 nm	5 mm	T-1 3/4	568 nm
Kingbright WP57IID	Round with Domed Top	Through Hole	8.6 mm	12 mcd	60 °	Standard	Red	20 mA	2 V	T-1 3/4		Radial	5 mm	Diffused	Red	627 nm	5 mm	T-1 3/4	617 nm
Kingbright WP57GYW	Round with Domed Top	Through Hole	8.6 mm	10 mcd 30 mcd	60 °	Bidirectional	Green Yellow	20 mA 20 mA	2.1 V 2.2 V	T-1 3/4	568nm Green 588nm Yellow	Radial	5 mm	Diffused	White		5 mm	T-1 3/4		565nm Green 590nm Yellow

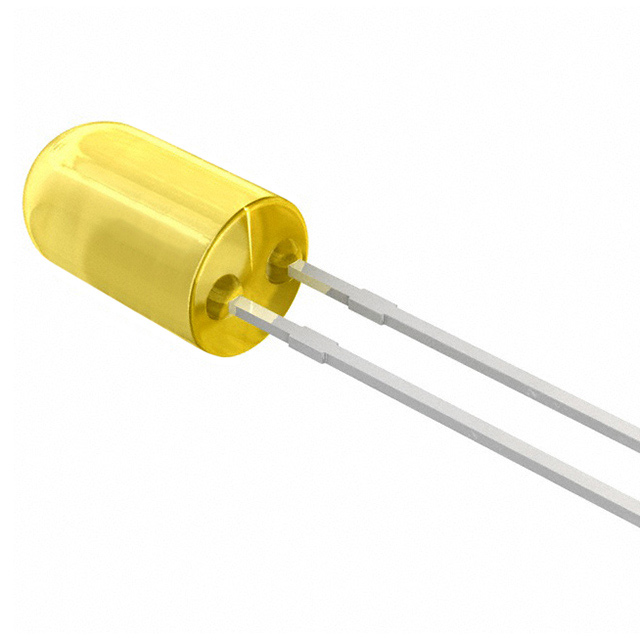

Kingbright WP57YYD	Round with Domed Top	Through Hole	8.6 mm	12 mcd	60 °	Standard	Yellow	20 mA	2.1 V	T-1 3/4		Radial	5 mm	Diffused	Yellow	590 nm	5 mm	T-1 3/4	588 nm

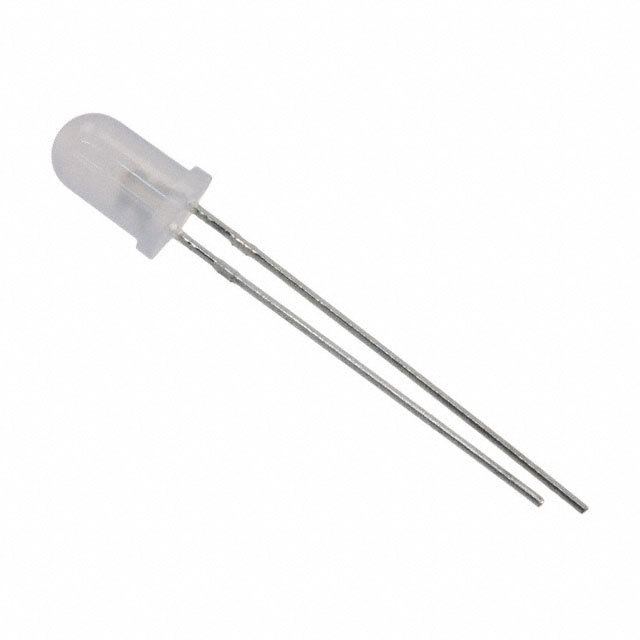

Kingbright WP57EGW	Round with Domed Top	Through Hole	8.6 mm	14 mcd 30 mcd	30 °	Bidirectional	Green Red		2 V 2.2 V	T-1 3/4		Radial	5 mm	Diffused	White	565 nm 627 nm	5 mm	T-1 3/4	568 nm 617 nm		20 mA	20 mA
