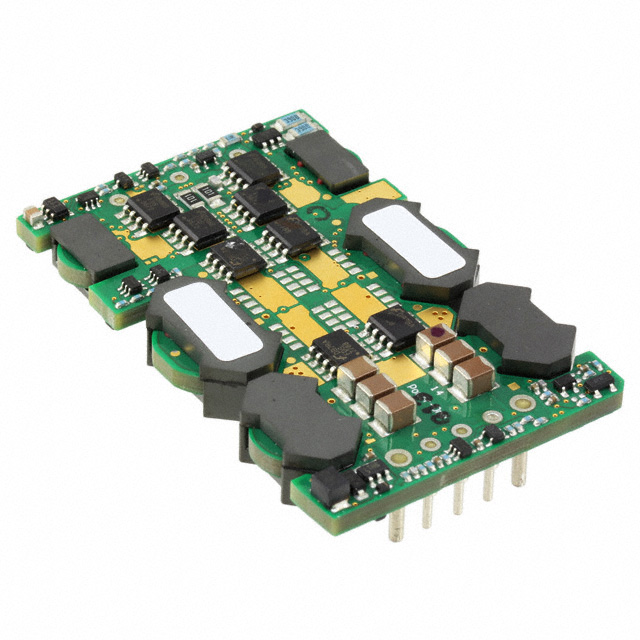

QM48T40033 Series

Catalog

DC DC CONVERTER 3.3V 132W

Part	Applications	Voltage - Input (Max) [Max]	Mounting Type	Control Features	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Output 1	Features	Package / Case	Voltage - Input (Min) [Min]	Efficiency	Type	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]
Bel Fuse Inc. QM48T40033-PBC0G	ITE (Commercial)	75 V	Through Hole	Active High Enable	1	85 °C	-40 C	132 W	3.3 V	OCP OTP OVP Remote On/Off SCP UVLO	8-DIP Module 1/4 Brick	36 V	90.5 %	Isolated Module	2000 V	2.3 in	9.1 mm	58.4 mm	1.45 in	0.36 in	36.8 mm	40 A
Bel Fuse Inc. QM48T40033-NDB0	ITE (Commercial)	75 V	Through Hole	Active Low Enable	1	85 °C	-40 C	132 W	3.3 V	OCP OTP OVP Remote On/Off SCP UVLO	8-DIP Module 1/4 Brick	36 V	90.5 %	Isolated Module	2000 V	2.3 in	10.7 mm	58.4 mm	1.45 in	0.42 "	36.8 mm	40 A
Bel Fuse Inc. QM48T40033-PDB0	ITE (Commercial)	75 V	Through Hole	Active High Enable	1	85 °C	-40 C	132 W	3.3 V	OCP OTP OVP Remote On/Off SCP UVLO	8-DIP Module 1/4 Brick	36 V	90.5 %	Isolated Module	2000 V	2.3 in	10.7 mm	58.4 mm	1.45 in	0.42 "	36.8 mm	40 A
Bel Fuse Inc. QM48T40033-NBB0G	ITE (Commercial)	75 V	Through Hole	Active Low Enable	1	85 °C	-40 C	132 W	3.3 V	OCP OTP OVP Remote On/Off SCP UVLO	8-DIP Module 1/4 Brick	36 V	90.5 %	Isolated Module	2000 V	2.3 in	9.1 mm	58.4 mm	1.45 in	0.36 in	36.8 mm	40 A
Bel Fuse Inc. QM48T40033-NBC0G	ITE (Commercial)	75 V	Through Hole	Active Low Enable	1	85 °C	-40 C	132 W	3.3 V	OCP OTP OVP Remote On/Off SCP UVLO	8-DIP Module 1/4 Brick	36 V	90.5 %	Isolated Module	2000 V	2.3 in	9.1 mm	58.4 mm	1.45 in	0.36 in	36.8 mm	40 A
Bel Fuse Inc. QM48T40033-NBA0G	ITE (Commercial)	75 V	Through Hole	Active Low Enable	1	85 °C	-40 C	132 W	3.3 V	OCP OTP OVP Remote On/Off UVLO	8-DIP Module 1/4 Brick	36 V	90.5 %	Isolated Module	2000 V	2.3 in	9.1 mm	58.4 mm	1.45 in	0.36 in	36.8 mm	40 A
Bel Fuse Inc. QM48T40033-NBA0G-S100	ITE (Commercial)	75 V	Through Hole	Active Low Enable	1	85 °C	-40 C	132 W	3.3 V	OCP OTP OVP Remote On/Off SCP UVLO	8-DIP Module 1/4 Brick	36 V	90.5 %	Isolated Module	2000 V	2.3 in	9.1 mm	58.4 mm	1.45 in	0.36 in	36.8 mm	40 A
