IGB20N65 Series
Manufacturer: INFINEON
Beta
⌘K

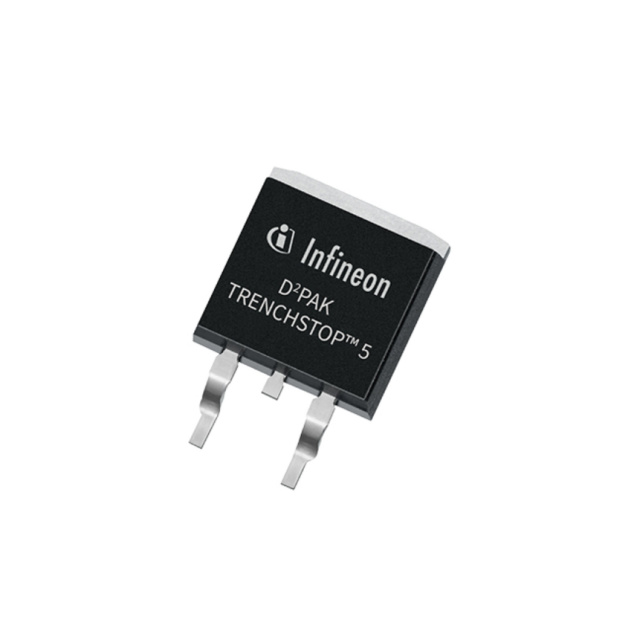

650 V, 28 A TRENCHSTOP™ IGBT IN TO263 HOUSING. WITH A SWITCHING FREQUENCY RANGE FROM 2 KHZ TO 20 KHZ IT PERFECTLY MATCHES APPLICATIONS LIKE HOME APPLIANCES, MOTOR CONTROL AND DRIVES OR UNITERRUPTIBLE POWER SUPPLY.
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Collector Emitter Breakdown (Max) [Max] | Package / Case | Current - Collector Pulsed (Icm) | IGBT Type | Td (on/off) @ 25°C [Min] | Td (on/off) @ 25°C [Max] | Switching Energy | Test Condition | Supplier Device Package | Mounting Type | Current - Collector (Ic) (Max) [Max] | Gate Charge | Vce(on) (Max) @ Vge, Ic |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 175 °C | -40 °C | 650 V | D2PAK (2 Leads + Tab) TO-263-3 TO-263AB | 80 A | Trench Field Stop | 13 ns | 115 ns | 150 µJ 360 µJ | 15 V 20 Ohm 20 A 400 V | PG-TO263-3-2 | Surface Mount | 40 A | 48 nC | 1.7 V |
