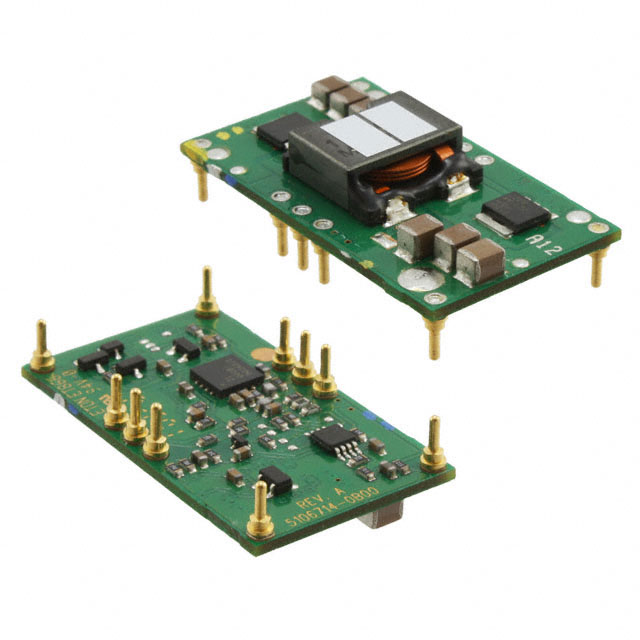

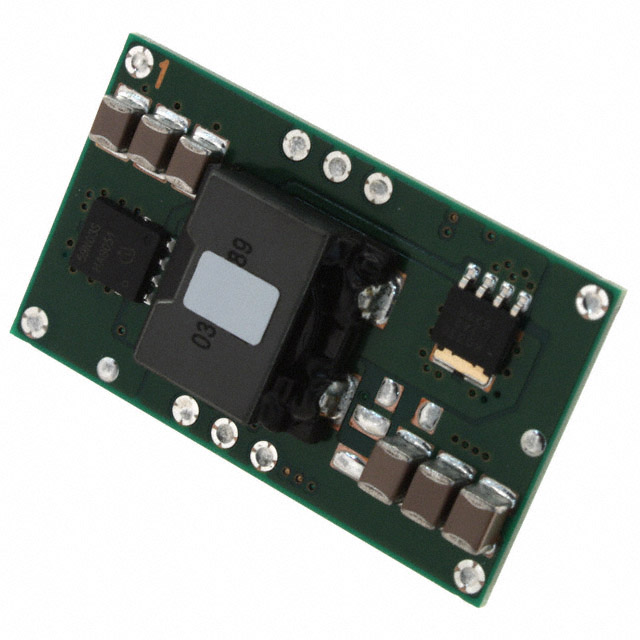

PTH12020L Series

0.8 to 1.8 V 18-A, 12-V Input Non-Isolated Wide-Adjust Module

Catalog

0.8 to 1.8 V 18-A, 12-V Input Non-Isolated Wide-Adjust Module

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Applications	Type	Voltage - Input (Max) [Max]	Mounting Type	Package / Case	Current - Output (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Features	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Efficiency
Texas Instruments PTH12020LAZT	1.5 in	22.1 mm	38.1 mm	9.7 mm	0.87 in	0.38 in	ITE (Commercial)	Non-Isolated PoL Module	13.2 V	Surface Mount	10-SMD Module	18 A	1.8 V	0.8 V	OCP OTP Remote On/Off UVLO	1	85 °C	-40 °C	10.8 V	89 %
Texas Instruments PTH12020WAH	1.5 in	22.1 mm	38.1 mm	8.9 mm	0.87 in	0.35 "	ITE (Commercial)	Non-Isolated PoL Module	13.2 V	Through Hole	10-DIP Module	18 A	5.5 V	1.2 V		1	85 °C	-40 °C	10.8 V	95 %
Texas Instruments PTH12020WAZ	1.49 in	22.1 mm	38 mm	9.6 mm	0.87 in	0.38 in	ITE (Commercial)	Non-Isolated PoL Module	13.2 V	Surface Mount	10-SMD Module	18 A	5.5 V	1.2 V	OCP OTP Remote On/Off UVLO	1	85 °C	-40 °C	10.8 V	95 %
Texas Instruments PTH12020WAST	1.5 in	22.1 mm	38.1 mm	9.7 mm	0.87 in	0.38 in	ITE (Commercial)	Non-Isolated PoL Module	13.2 V	Surface Mount	10-SMD Module	18 A	5.5 V	1.2 V	OCP OTP Remote On/Off UVLO	1	85 °C	-40 °C	10.8 V	95 %
Texas Instruments PTH12020LAST	1.5 in	22.1 mm	38.1 mm	9.7 mm	0.87 in	0.38 in	ITE (Commercial)	Non-Isolated PoL Module	13.2 V	Surface Mount	10-SMD Module	18 A	1.8 V	0.8 V	OCP OTP Remote On/Off UVLO	1	85 °C	-40 °C	10.8 V	89 %
Texas Instruments PTH12020LAZ	1.5 in	22.1 mm	38.1 mm	9.6 mm	0.87 in	0.38 in	ITE (Commercial)	Non-Isolated PoL Module	13.2 V	Surface Mount	10-SMD Module	18 A	1.8 V	0.8 V	OCP OTP Remote On/Off UVLO	1	85 °C	-40 °C	10.8 V	89 %
Texas Instruments PTH12020LAH	1.5 in	22.1 mm	38.1 mm	8.9 mm	0.87 in	0.35 "	ITE (Commercial)	Non-Isolated PoL Module	13.2 V	Through Hole	10-DIP Module	18 A	1.8 V	0.8 V		1	85 °C	-40 °C	10.8 V	89 %
Texas Instruments PTH12020LAG

Catalog

0.8 to 1.8 V 18-A, 12-V Input Non-Isolated Wide-Adjust Module

Key Features

• Up to 18 A Output Current12-V Input VoltageWide-Output Voltage Adjust(1.2 V to 5.5 V/(0.8 V to 1.8 V)Efficiencies up to 95%195 W/in3Power DensityOn/Off InhibitOutput Voltage SensePre-Bias StartupUnder-Voltage LockoutAuto-Track™ SequencingMargin Up/Down ControlsOutput Over-Current Protection(Non-Latching, Auto-Reset)Over-Temperature ProtectionOperating Temperature: –40°C to 85°CPoint-of-Load Alliance (POLA™) CompatibleSafety Agency Approvals:UL/IEC/CSA-22.2 60950-1APPLICATIONSComplex multi-voltage, multi-processor systemsPOLA, TMS320 are trademarks of Texas Instruments.Up to 18 A Output Current12-V Input VoltageWide-Output Voltage Adjust(1.2 V to 5.5 V/(0.8 V to 1.8 V)Efficiencies up to 95%195 W/in3Power DensityOn/Off InhibitOutput Voltage SensePre-Bias StartupUnder-Voltage LockoutAuto-Track™ SequencingMargin Up/Down ControlsOutput Over-Current Protection(Non-Latching, Auto-Reset)Over-Temperature ProtectionOperating Temperature: –40°C to 85°CPoint-of-Load Alliance (POLA™) CompatibleSafety Agency Approvals:UL/IEC/CSA-22.2 60950-1APPLICATIONSComplex multi-voltage, multi-processor systemsPOLA, TMS320 are trademarks of Texas Instruments.

Description

The PTH12020 series of non-isolated power modules offers OEM designers a combination of high performance, small footprint, and industry leading features. As part of a new class of power modules, these products provide designers with the flexibility to power the most complex multi-processor digital systems using off-the-shelf catalog parts. The series employs double-sided surface mount construction and provides highperformance step-down power conversion for up to 18A of output current from a 12-V input bus voltage. The output voltage of the W-suffix parts can be set to any value over the range, 1.2V to 5.5V. The L-suffix parts have an adjustment range of 0.8V to 1.8V. The output voltage is set using a single resistor. This series includes Auto-Track™ sequencing. Auto-Track sequencing simplifies the task of supply voltage sequencing in a power system by enabling modules to track each other, or any external voltage, during power up and power down. Other operating features include an on/off inhibit, output voltage adjust (trim), margin up/down controls, and the ability to start up into an existing output voltage or prebias. For improved load regulation, an output voltage sense is provided. A non-latching over-current trip and overtemperature shutdown feature protects against load faults. Target applications include complex multivoltage, multiprocessor systems that incorporate the industry's high-speed DSPs, microprocessors and bus drivers. For start-up into a non-prebiased output, review page 14 in the Application Information section. For start-up into a prebiased output, review page 18 in the Application Information section. The PTH12020 series of non-isolated power modules offers OEM designers a combination of high performance, small footprint, and industry leading features. As part of a new class of power modules, these products provide designers with the flexibility to power the most complex multi-processor digital systems using off-the-shelf catalog parts. The series employs double-sided surface mount construction and provides highperformance step-down power conversion for up to 18A of output current from a 12-V input bus voltage. The output voltage of the W-suffix parts can be set to any value over the range, 1.2V to 5.5V. The L-suffix parts have an adjustment range of 0.8V to 1.8V. The output voltage is set using a single resistor. This series includes Auto-Track™ sequencing. Auto-Track sequencing simplifies the task of supply voltage sequencing in a power system by enabling modules to track each other, or any external voltage, during power up and power down. Other operating features include an on/off inhibit, output voltage adjust (trim), margin up/down controls, and the ability to start up into an existing output voltage or prebias. For improved load regulation, an output voltage sense is provided. A non-latching over-current trip and overtemperature shutdown feature protects against load faults. Target applications include complex multivoltage, multiprocessor systems that incorporate the industry's high-speed DSPs, microprocessors and bus drivers. For start-up into a non-prebiased output, review page 14 in the Application Information section. For start-up into a prebiased output, review page 18 in the Application Information section.
