UTS01 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT MALE 7POS GOLD SOLDER

Part	Voltage Rating	Contact Material	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Features	Fastening Type	Number of Positions	Position Types	Termination	Material Flammability Rating	Mounting Type	Primary Material	Shell Size - Insert Width	Shell Size - Insert Length	Current Rating	Applications	Shell Material	Ingress Protection Description	Ingress Protection IP Rating	Contact Finish Thickness - Mating	Mounting Feature	Color	Insert Material	Contact Finish - Mating	Orientation	Shielding	Housing Color	Note	Contact Shape	Contact Size	Contact Type	Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)
Amphenol Aerospace Operations UTS014D7P	500 V	Brass	Male Pins Receptacle	-40 °C	105 °C	UV Resistant	Bayonet Lock	7	PE	Solder	UL94 V-0	Panel Mount Through Hole	Plastic	7 mm	14 mm	10 A	Energy Instrumentation Lighting Telecommunications	Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 µin	Flange	Black	Polychloroprene	Gold	N (Normal)	Unshielded

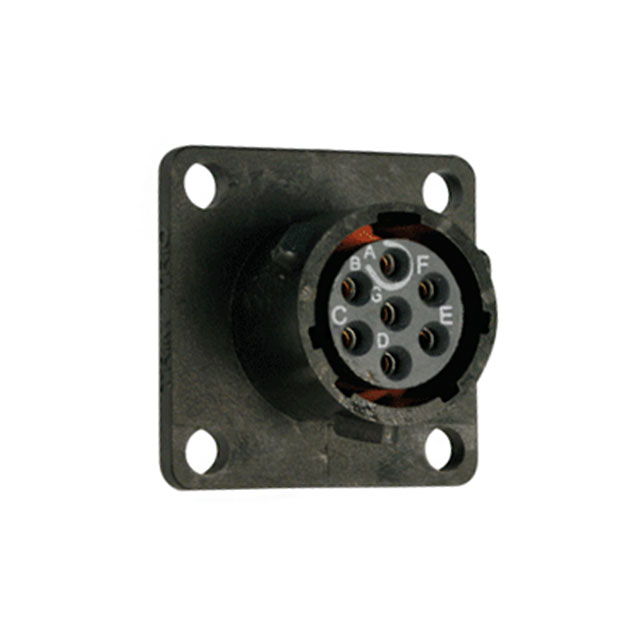

Amphenol Aerospace Operations UTS010D7S	250 V	Brass	Female Sockets Receptacle	-40 °C	105 °C	UV Resistant	Bayonet Lock	7		Solder	UL94 V-0	Panel Mount Through Hole	Plastic	7 mm	10 mm	6 A	Energy Instrumentation Lighting Telecommunications	Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 µin	Flange	Black	Polychloroprene	Gold	N (Normal)	Unshielded

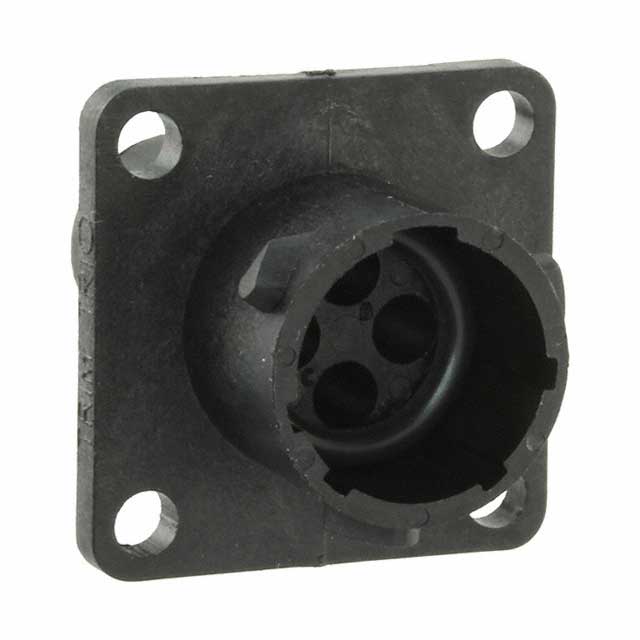

Amphenol Aerospace Operations UTS0104P			Receptacle Housing	-40 °C	105 °C		Bayonet Lock	4			UL94 V-0	Panel Mount		4 mm	10 mm			Nylon Polyamide (PA)	Dust Tight Water Resistant Waterproof	IP67 IP69K		Flange				N (Normal)	Unshielded	Black	Contacts Not Included	Circular	16 S	Crimp	For Male Pins

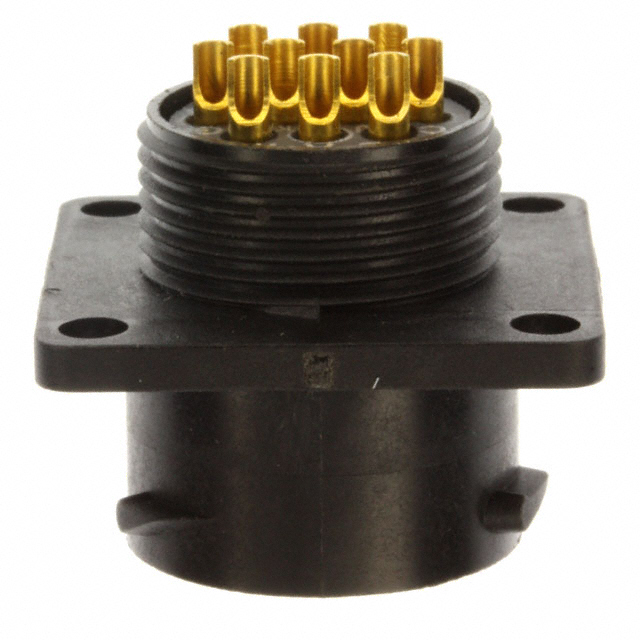

Amphenol Aerospace Operations UTS012E10P	250 V	Brass	Male Pins Receptacle	-40 °C	105 °C	UV Resistant	Bayonet Lock	10		Solder Cup	UL94 V-0	Panel Mount	Plastic	10 mm	12 mm	4.5 A	Energy Instrumentation Lighting Telecommunications	Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 µin	Flange	Black	Polychloroprene	Gold	N (Normal)	Unshielded

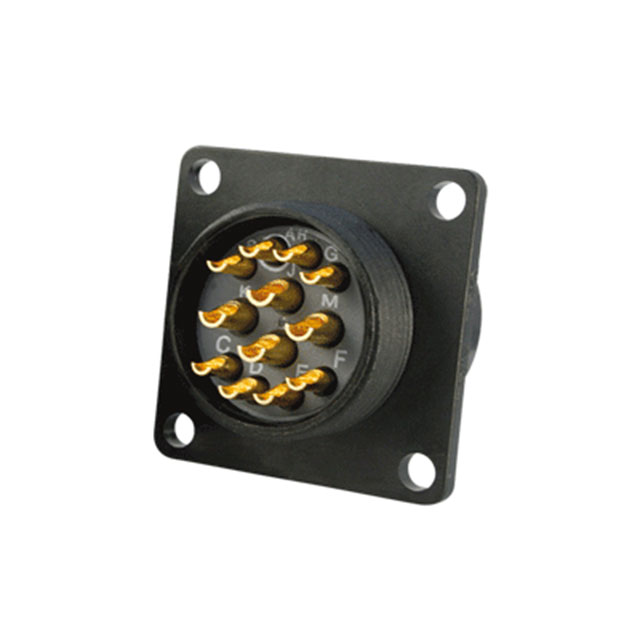

Amphenol Aerospace Operations UTS014E12S	250 V	Brass	Female Sockets Receptacle	-40 °C	105 °C	UV Resistant	Bayonet Lock	12		Solder Cup	UL94 V-0	Panel Mount	Plastic	12 mm	14 mm	4.5 A	Energy Instrumentation Lighting Telecommunications	Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 µin	Flange	Black	Polychloroprene	Gold	N (Normal)	Unshielded

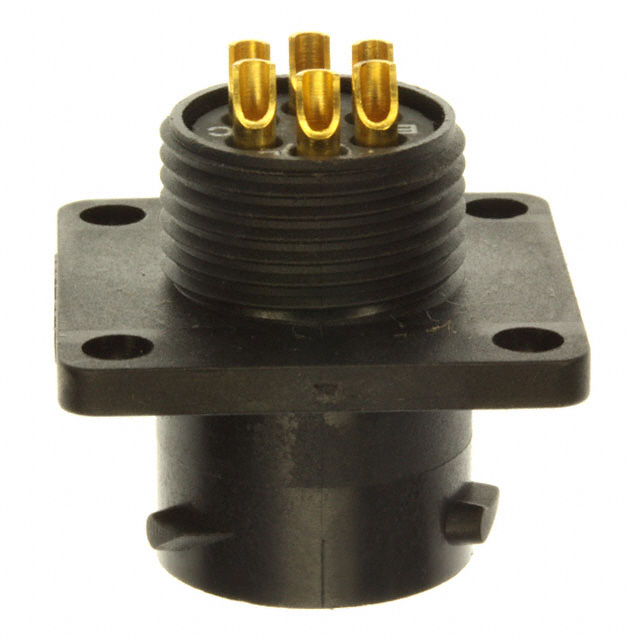

Amphenol Aerospace Operations UTS010E6S	250 V	Brass	Female Sockets Receptacle	-40 °C	105 °C	UV Resistant	Bayonet Lock	6		Solder Cup	UL94 V-0	Panel Mount	Plastic	6 mm	10 mm	6 A	Energy Instrumentation Lighting Telecommunications	Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 µin	Flange	Black	Polychloroprene	Gold	N (Normal)	Unshielded
Amphenol Aerospace Operations UTS010E7S	250 V	Brass	Female Sockets Receptacle	-40 °C	105 °C	UV Resistant	Bayonet Lock	7		Solder Cup	UL94 V-0	Panel Mount	Plastic	7 mm	10 mm	6 A	Energy Instrumentation Lighting Telecommunications	Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 µin	Flange	Black	Polychloroprene	Gold	N (Normal)	Unshielded
Amphenol Aerospace Operations UTS014D7S	500 V	Brass	Female Sockets Receptacle	-40 °C	105 °C	UV Resistant	Bayonet Lock	7	PE	Solder	UL94 V-0	Panel Mount Through Hole	Plastic	7 mm	14 mm	10 A	Energy Instrumentation Lighting Telecommunications	Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 µin	Flange	Black	Polychloroprene	Gold	N (Normal)	Unshielded

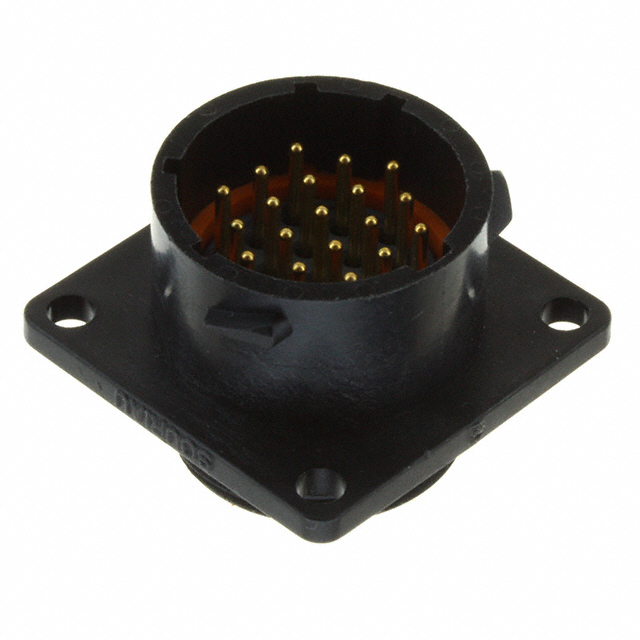

Amphenol Aerospace Operations UTS014E19P	250 V	Brass	Male Pins Receptacle	-40 °C	105 °C	UV Resistant	Bayonet Lock	19		Solder Cup	UL94 V-0	Panel Mount	Plastic			4 A	Energy Instrumentation Lighting Telecommunications	Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 µin	Flange	Black	Polychloroprene	Gold	N (Normal)	Unshielded							19	14 S
Amphenol Aerospace Operations UTS014D19PX	250 V	Brass	Male Pins Receptacle	-40 °C	105 °C	UV Resistant	Bayonet Lock	19		Solder	UL94 V-0	Panel Mount Through Hole	Plastic			4 A	Energy Instrumentation Lighting Telecommunications	Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 µin	Flange	Black	Polychloroprene	Gold	X	Unshielded							19	14 S
