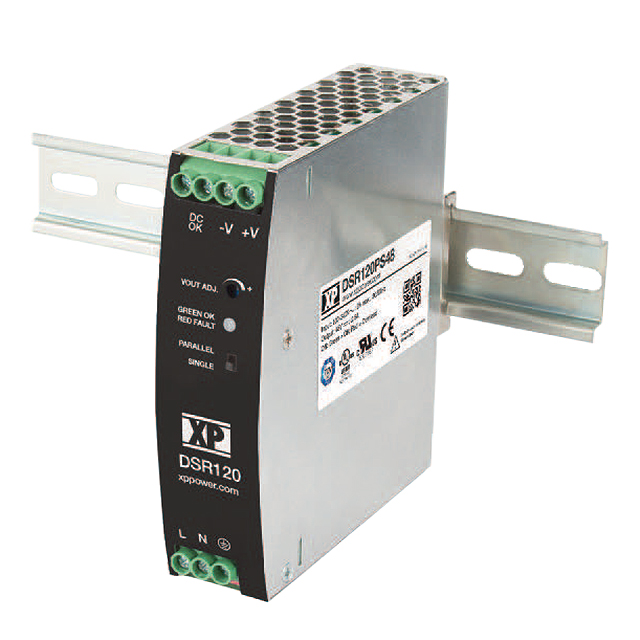

DSR120 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC DIN RAIL SUPPLY 12V 120W
| Part | Minimum Load Required | Input Type | Applications | Features | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Approval Agency | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Standard Number | Number of Outputs | Voltage - Output 1 | Current - Output (Max) [Max] | Current - Output (Max) | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | AC | Industrial ITE (Commercial) | Adjustable Output Universal Input | 264 VAC | 85 VAC | 1.26 in | 32 mm | 113.5 mm | 124 mm | 4.88 in | 4.47 " | CB CE cULus cURus TUV | 3000 V | 70 °C | -25 °C | 120 W | 62368-1 | 1 | 12 V | 10 A | |||
XP Power | AC | Industrial ITE (Commercial) | Adjustable Output Universal Input | 264 VAC | 85 VAC | 1.26 in | 32 mm | 113.5 mm | 124 mm | 4.88 in | 4.47 " | CB CE cULus cURus TUV | 3000 V | 70 °C | -25 °C | 120 W | 62368-1 | 1 | 24 V | 5 A | 91 % | ||
XP Power | AC | Industrial ITE (Commercial) | Adjustable Output Universal Input | 264 VAC | 85 VAC | 1.26 in | 32 mm | 113.5 mm | 124 mm | 4.88 in | 4.47 " | CB CE cULus cURus TUV | 3000 V | 70 °C | -25 °C | 120 W | 62368-1 | 1 | 48 V | 2.5 A | 92 % |
