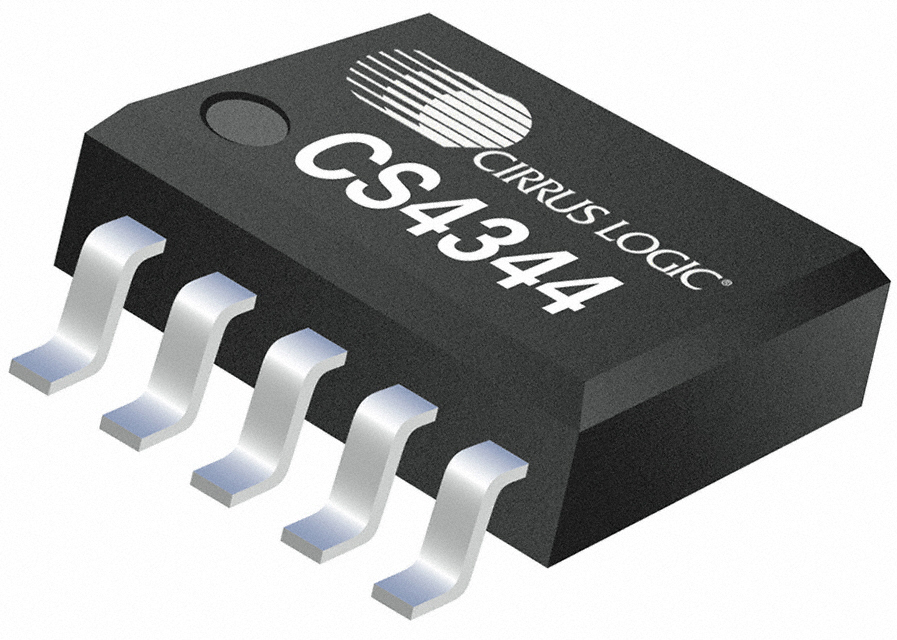

CS4344 Series

Catalog

EVAL BOARD FOR CS4344

Part	Type	Contents	Primary Attributes [custom]	Utilized IC / Part	Function	Resolution (Bits)	Sampling Rate (Per Second)	Data Interface	Package / Case	Voltage - Supply [Min]	Voltage - Supply	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels [custom]	Mounting Type	Voltage Supply Source	Supplier Device Package	Number of Channels	Supplied Contents
Cirrus Logic Inc. CDB-4344	Audio	Board(s)	2-Channel (Dual)	CS4344	Audio/Stereo DAC
Cirrus Logic Inc. CS4344-DZZR	DAC Audio					24 b	192k	SPI	10-TFSOP 10-MSOP (0.118" 3.00mm Width)	3 V	5 VDC	3.47 V	85 °C	-40 C	1	Surface Mount	Single Supply	10-TSSOP
Cirrus Logic Inc. CS4344-DZZ	DAC Audio					24 b	192k	SPI	10-TFSOP 10-MSOP (0.118" 3.00mm Width)	3 V	5 VDC	3.47 V	85 °C	-40 C	1	Surface Mount	Single Supply	10-TSSOP
Cirrus Logic Inc. CS4344-CZZR	DAC Audio					24 b	192k	I2S	10-TFSOP 10-MSOP (0.118" 3.00mm Width)	3 V	5 VDC	3.47 V	70 °C	-10 °C		Surface Mount	Single Supply	10-SSOP	2

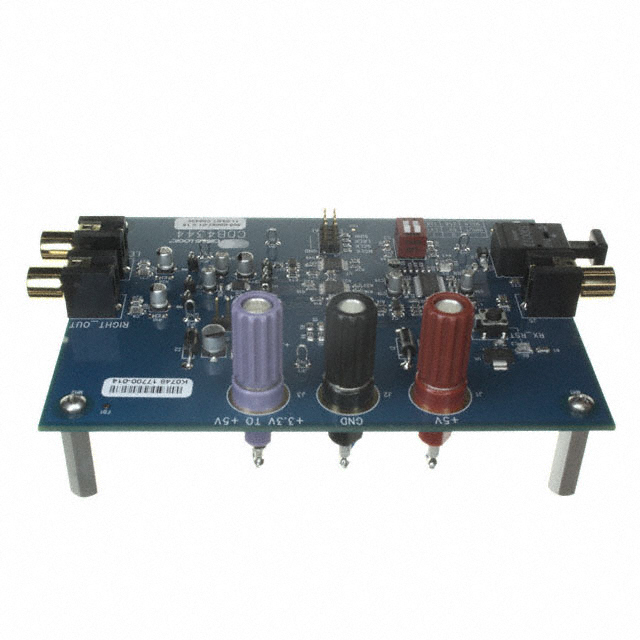

Cirrus Logic Inc. CDB4344	Audio	Board(s)	2-Channel (Dual)	CS4344	Audio/Stereo DAC															Board(s)
Cirrus Logic Inc. CS4344-CZZ	DAC Audio					24 b	192k	I2S	10-TFSOP 10-MSOP (0.118" 3.00mm Width)	3 V	5 VDC	3.47 V	70 °C	-10 °C		Surface Mount	Single Supply	10-TSSOP	2
