A-DS 25 Series

Catalog

CONN D-SUB PLUG 25POS VERT SLDR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Color	Voltage Rating	Dielectric Material	Current Rating (Amps)	Material Flammability Rating	Contact Type	Connector Type	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Number of Rows [custom]	Contact Finish	Termination	Mounting Type	Features	Connector Style	Flange Feature	Contact Finish Thickness	Number of Positions	Ingress Protection	Wire Gauge [Max]	Wire Gauge [Min]	Backset Spacing	Backset Spacing	Flange Feature

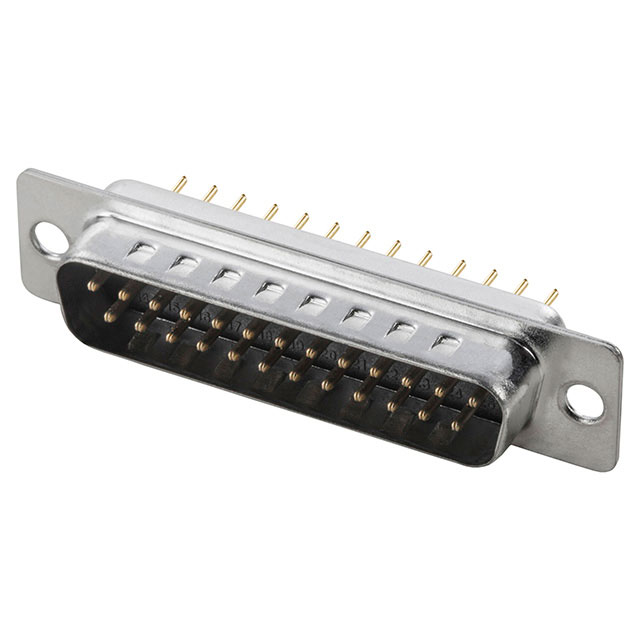

Assmann WSW Components A-DS 25 PP/Z-BK	-55 C	105 ░C	Copper Alloy	Black	250 VAC	Polybutylene Terephthalate (PBT) Glass Filled	3 A	UL94 V-0	Signal	Plug Male Pins	B DB	3	2	Gold	Solder	Through Hole	Grounding Indents	D-Sub	Housing/Shell (Unthreaded)	Flash	25

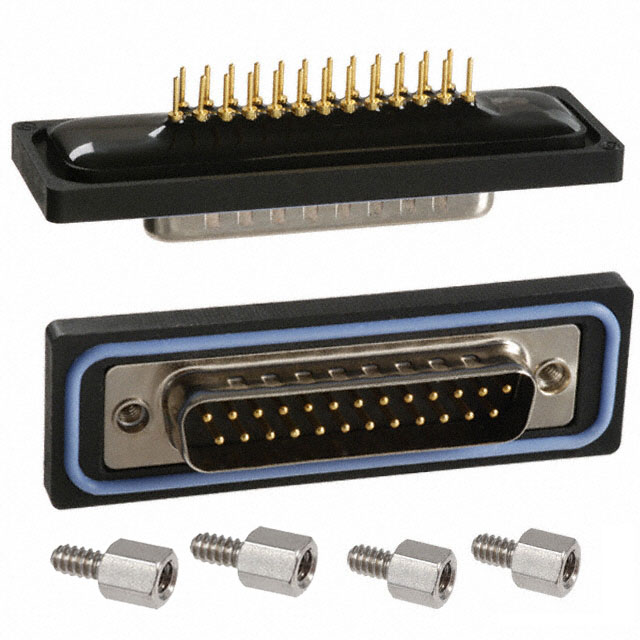

Assmann WSW Components A-DS 25 PP-WP				Black					Signal	Plug Male Pins	B DB	3	2		Solder	Panel Mount Through Hole	Grounding Indents	D-Sub	Female Screwlock Mating Side		25	IP68 - Dust Tight Waterproof

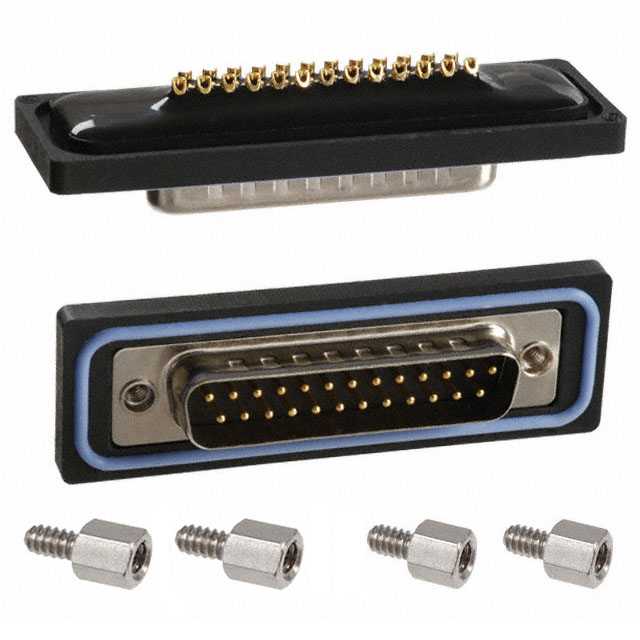

Assmann WSW Components A-DS 25 LL-WP			Copper Alloy	Black					Signal	Plug Male Pins	B DB	3	2	Gold		Panel Mount	Grounding Indents	D-Sub	Female Screwlock Mating Side		25	IP68 - Dust Tight Waterproof	26 AWG	22 AWG

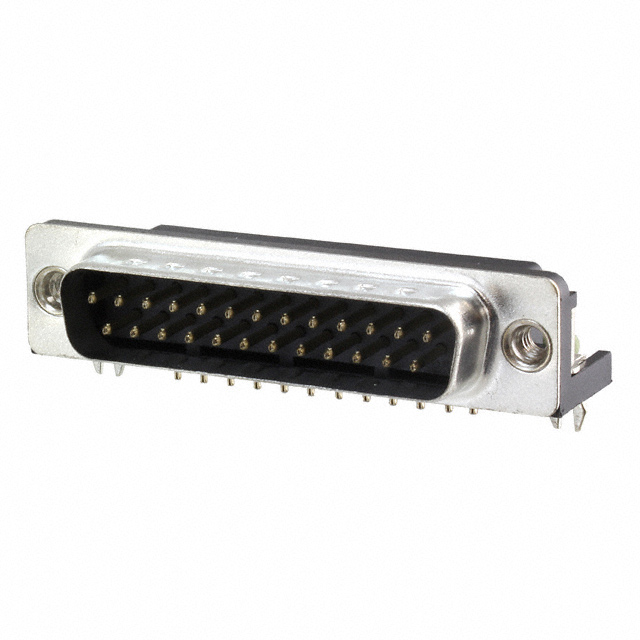

Assmann WSW Components A-DS 25 A/KG-T4S	-55 C	105 ░C	Brass	Black	250 V	Polybutylene Terephthalate (PBT) Glass Filled	3 A	UL94 V-0	Signal	Plug Male Pins	B DB	3	2	Gold	Solder	Right Angle Through Hole	Board Lock Grounding Indents	D-Sub	Housing/Shell	Flash	25				0.319 in	8.1 mm	4-40
