725-092 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 92POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Number of Positions	Contact Material	Termination	Card Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Rows [custom]	Pitch	Pitch	Contact Finish	Mounting Type	Gender
EDAC Inc. 725-092-520-201	2	Polyester Thermoplastic	-40 C	105 ░C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	46	92	Copper Alloy	Press-Fit	Non Specified - Dual Edge	Cantilever	30 Áin	0.76 Ám	Black	2	0.1 "	2.54 mm	Gold	Through Hole	Female

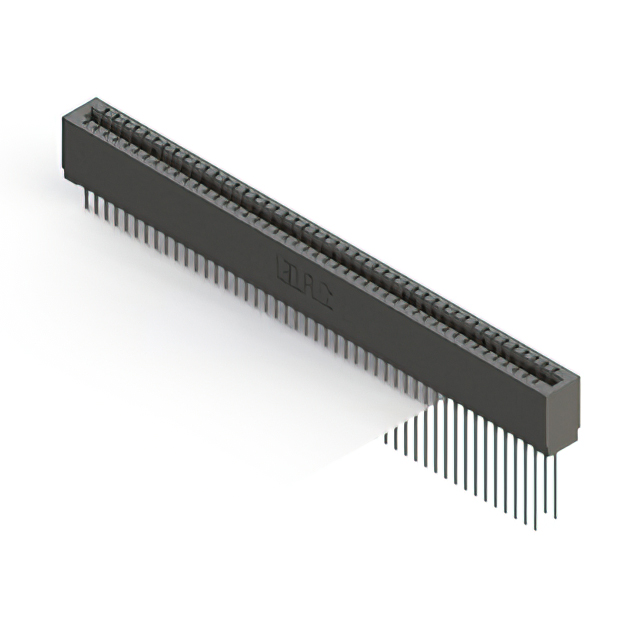

EDAC Inc. 725-092-541-201	2	Polyester Thermoplastic	-40 C	105 ░C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	46	92	Copper Alloy	Press-Fit Wire Wrap	Non Specified - Dual Edge	Cantilever	30 Áin	0.76 Ám	Black	2	0.1 "	2.54 mm	Gold	Through Hole	Female
EDAC Inc. 725-092-525-201	2	Polyester Thermoplastic	-40 C	105 ░C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	46	92	Copper Alloy	Press-Fit	Non Specified - Dual Edge	Cantilever	30 Áin	0.76 Ám	Black	2	0.1 "	2.54 mm	Gold	Through Hole	Female
EDAC Inc. 725-092-560-201	2	Polyester Thermoplastic	-40 C	105 ░C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	46	92	Copper Alloy	Press-Fit	Non Specified - Dual Edge	Cantilever Make Before Break	30 Áin	0.76 Ám	Black	2	0.1 "	2.54 mm	Gold	Through Hole	Female
EDAC Inc. 725-092-522-201	2	Polyester Thermoplastic	-40 C	105 ░C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	46	92	Copper Alloy	Press-Fit	Non Specified - Dual Edge	Cantilever	30 Áin	0.76 Ám	Black	2	0.1 "	2.54 mm	Gold	Through Hole	Female
