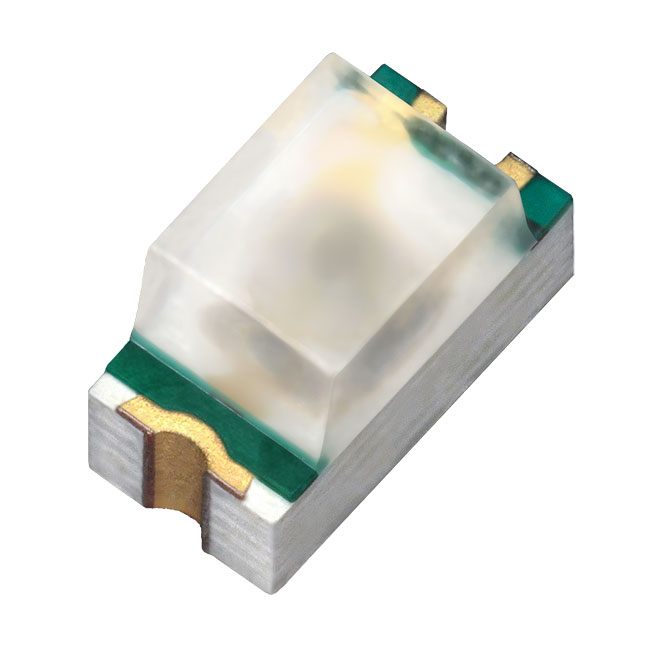

CSL1002R3T Series

Small 1608size surface mount type, 940nm NIR (Near Infrared) LED

Catalog

Small 1608size surface mount type, 940nm NIR (Near Infrared) LED

Part	Wavelength	Wavelength [Max]	Wavelength [Min]	Orientation	Voltage - Forward (Vf) (Typ)	Type	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Radiant Intensity (Ie) Min @ If	Mounting Type
Rohm Semiconductor CSL1002R3T1	940 nm	960 nm	920 nm	Top View	1.4 V	Infrared (IR)	30 mA	85 °C	-40 °C	0603 (1608 Metric)	1.4 mW/sr	Surface Mount

Small 1608size surface mount type, 940nm NIR (Near Infrared) LED

• Light source for sensor application

CSL1002R3T is a NIR (Near Infrared) LED with a wavelength of 940nm. It is a high profile, compact product of industry standard 1608 Size.
