PSU8200 Series
Manufacturer: Siemens
Beta
⌘K

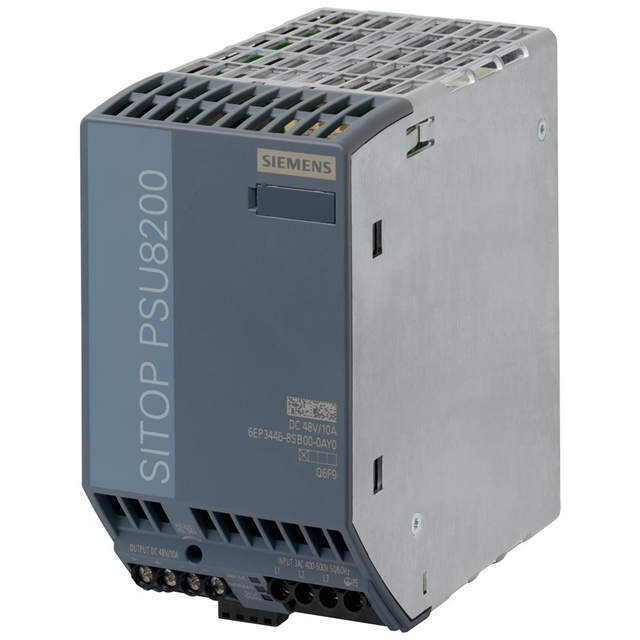

DIN RAIL POWER SUPPLIES SITOP PSU8200, 48V/10A
| Part | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Type | Approval Agency | Applications | Efficiency | Power (Watts) | Voltage - Input [Max] | Voltage - Input [Min] | Mounting Type | Number of Outputs | Voltage - Output 1 | Standard Number | Features | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output 1 | Input Type | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Siemens | 4.92 in | 125 mm | 70 mm | 125 mm | 2.76 " | 4.92 in | Enclosed | CB cCSAus CE CSA cULus FM UL | ITE (Commercial) | 94 % | 480 W | 575 VAC | 320 VAC | Chassis Mount | 1 | 48 V | 60950-1 | Adjustable Output | 70 °C | -25 °C | 10 A | ||||
 Siemens | 5.71 in | 145 mm | 135 mm | 150 mm | 5.31 in | 5.91 in | cCSAus CE CSA cULus EAC UL | Industrial ITE (Commercial) | 94 % | 1 | 48 V | 60950-1; UL 508 | Adjustable Output IP20 | 70 °C | -25 °C | AC | 320 VAC | 575 VAC | 20 A |
