896-026 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 26POS 0.125
| Part | Termination Rows | Material - Insulation | Number of Positions | Contact Type | Color | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Mounting Type | Card Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Number of Rows | Pitch | Pitch | Gender | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Number of Positions/Bay/Row | Contact Finish Thickness | Contact Finish Thickness | Termination Rows [custom] | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

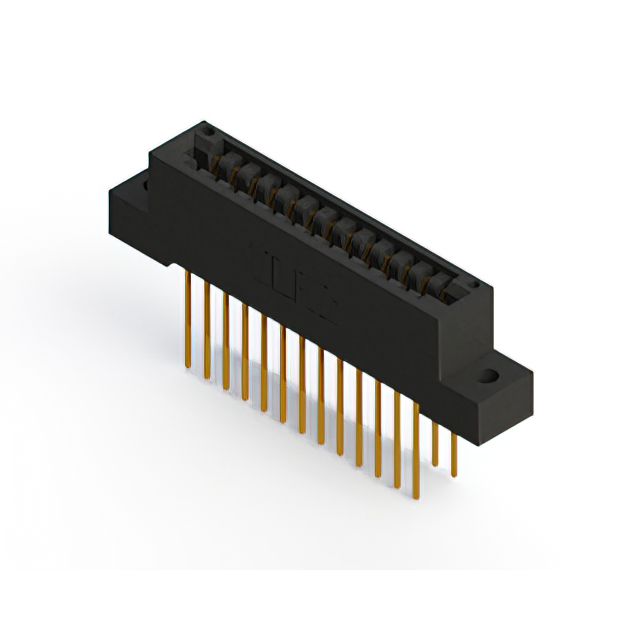

 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 26 | Cantilever | Black | Copper Alloy | 125 °C | -40 C | Single | Through Hole | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Wire Wrap | 1 | 3.18 mm | 0.125 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 26 | 0.25 Ám | 10 Áin | ||

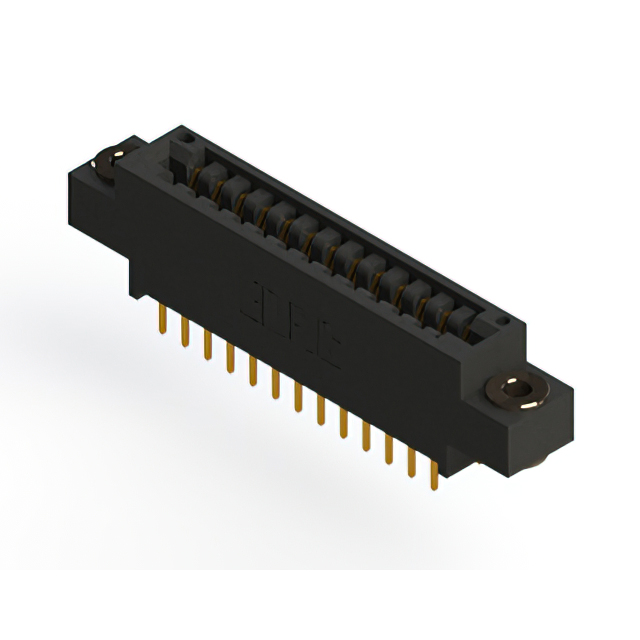

 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 26 | Cantilever | Black | Copper Alloy | 125 °C | -40 C | Single | Through Hole | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 1 | 3.18 mm | 0.125 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 26 | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 26 | Cantilever | Black | Copper Alloy | 125 °C | -40 C | Single | Through Hole | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Solder | 1 | 3.18 mm | 0.125 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 26 | 0.25 Ám | 10 Áin | ||||

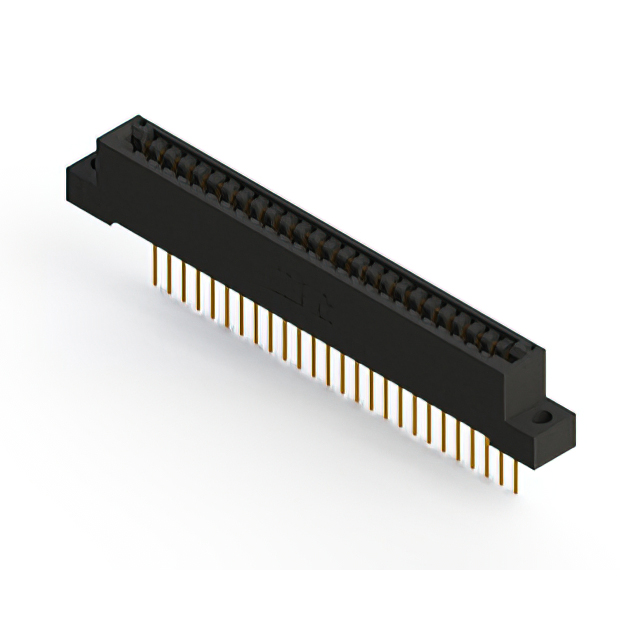

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 26 | Cantilever | Black | Copper Alloy | 125 °C | -40 C | Dual | Through Hole | Non Specified - Dual Edge | 0.128 " | 3.25 mm | Solder | 3.18 mm | 0.125 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 13 | 0.25 Ám | 10 Áin | 2 | 2 | |||

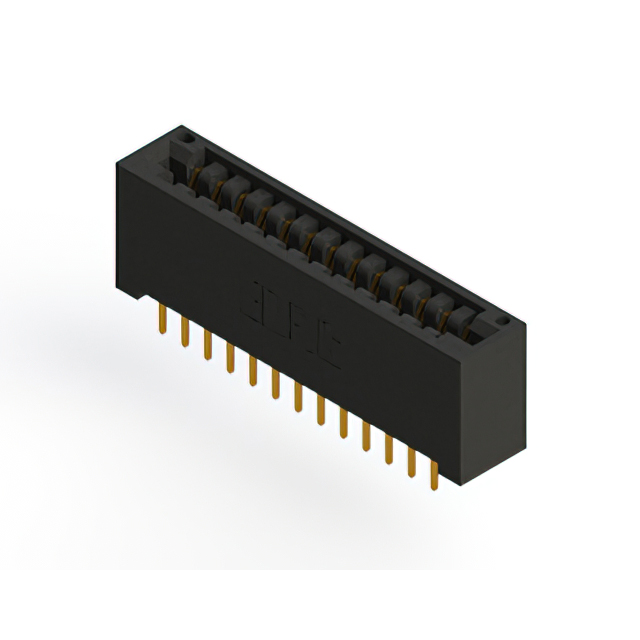

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 26 | Cantilever | Black | Copper Alloy | 125 °C | -40 C | Dual | Through Hole | Non Specified - Dual Edge | Solder | 3.18 mm | 0.125 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 13 | 0.25 Ám | 10 Áin | 2 | 2 | |||||

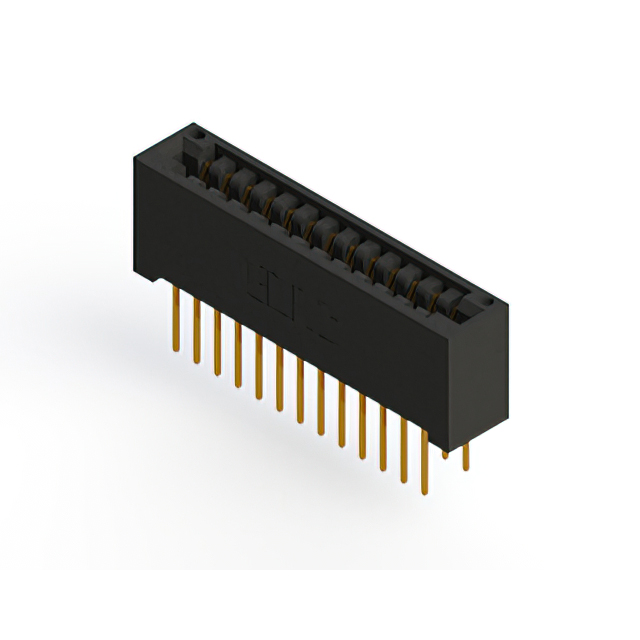

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 26 | Cantilever | Black | Copper Alloy | 125 °C | -40 C | Dual | Through Hole | Non Specified - Dual Edge | Solder | 3.18 mm | 0.125 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 13 | 0.25 Ám | 10 Áin | 2 | 2 | |||||
EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 26 | Cantilever | Black | Copper Alloy | 125 °C | -40 C | Single | Through Hole | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | Solder | 1 | 3.18 mm | 0.125 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 26 | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 26 | Cantilever | Black | Copper Alloy | 125 °C | -40 C | Single | Through Hole | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Solder | 1 | 3.18 mm | 0.125 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 26 | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 26 | Cantilever | Black | Copper Alloy | 125 °C | -40 C | Single | Through Hole | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | Solder | 1 | 3.18 mm | 0.125 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 26 | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 26 | Cantilever | Black | Copper Alloy | 125 °C | -40 C | Single | Through Hole | Non Specified - Single Edge | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Solder | 1 | 3.18 mm | 0.125 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 26 | 0.25 Ám | 10 Áin |
