M24308/4 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K

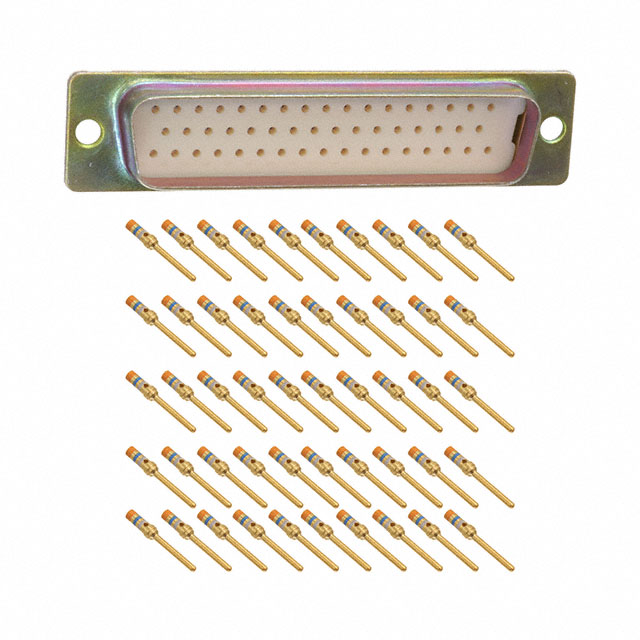

DSUB 37 P CRIMP G50 YLW ZN
| Part | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Termination | Connector Style | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Contact Type | Flange Feature | Connector Type | Features | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Number of Positions | Contact Finish | Number of Rows [custom] | Mounting Type | Shell Size, Connector Layout | Shell Size, Connector Layout | Note | Mating Cycles | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Material, Finish | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | Brass | Diallyl Phthalate (DAP) Glass Filled | -65 ░C | 125 °C | Green | Crimp | D-Sub | Yellow Chromate Plated Zinc | Steel | Signal | Housing/Shell (Unthreaded) | Plug Male Pins | Tools Included | 50 µin | 1.27 µm | 5 A | 37 | Gold | 2 | Panel Mount | 4 | DC C | |||||||
Cinch Connectivity Solutions | Diallyl Phthalate (DAP) Glass Filled | -65 ░C | 125 °C | Green | D-Sub | Yellow Chromate Plated Zinc | Steel | Signal | Housing/Shell (Unthreaded) | Plug for Male Contacts | 37 | 2 | Free Hanging (In-Line) | 4 | DC C | Contacts Not Included | 500 | ||||||||||||
Cinch Connectivity Solutions | Diallyl Phthalate (DAP) Glass Filled | -65 ░C | 125 °C | Green | D-Sub | Yellow Chromate Plated Zinc | Steel | Signal | Housing/Shell (Unthreaded) | Plug for Male Contacts | 50 | 3 | Free Hanging (In-Line) | Contacts Not Included | 500 | 5 | D DD | ||||||||||||
Cinch Connectivity Solutions | Brass | Diallyl Phthalate (DAP) Glass Filled | -65 ░C | 125 °C | Green | Crimp | D-Sub | Signal | Housing/Shell (Unthreaded) | Plug Male Pins | Tools Included | 50 µin | 1.27 µm | 5 A | 15 | Gold | 2 | Panel Mount | 2 | Steel Yellow Chromate Plated Cadmium | |||||||||
 Cinch Connectivity Solutions | Brass | Diallyl Phthalate (DAP) Glass Filled | -65 ░C | 125 °C | Green | Crimp | D-Sub | Signal | Housing/Shell (Unthreaded) | Plug Male Pins | 50 µin | 1.27 µm | 5 A | 15 | Gold | 2 | Panel Mount | 2 | Steel Yellow Chromate Plated Cadmium | ||||||||||
 Cinch Connectivity Solutions | Thermoplastic | -55 C | 125 °C | Black | D-Sub | Yellow Chromate Plated Zinc | Steel | Signal | Housing/Shell (Unthreaded) | Plug for Male Contacts | 9 | 2 | Free Hanging (In-Line) | Contacts Not Included | 500 | 1 | DE E | MIL-DTL-24308 | Military | ||||||||||
Cinch Connectivity Solutions | Brass | Diallyl Phthalate (DAP) Glass Filled | -65 ░C | 125 °C | Green | Crimp | D-Sub | Yellow Chromate Plated Zinc | Steel | Signal | Housing/Shell (Unthreaded) | Plug Male Pins | 50 µin | 1.27 µm | 5 A | 50 | Gold | 3 | Panel Mount | 5 | D DD | ||||||||
Cinch Connectivity Solutions | Diallyl Phthalate (DAP) Glass Filled | -65 ░C | 125 °C | Green | D-Sub | Signal | Housing/Shell (Unthreaded) | Plug for Male Contacts | 9 | 2 | Free Hanging (In-Line) | Contacts Not Included | 500 | 1 | DE E | Steel Yellow Chromate Plated Cadmium | |||||||||||||
Cinch Connectivity Solutions | Brass | Diallyl Phthalate (DAP) Glass Filled | -65 ░C | 125 °C | Green | Crimp | D-Sub | Signal | Housing/Shell (Unthreaded) | Plug Male Pins | 50 µin | 1.27 µm | 5 A | 9 | Gold | 2 | Panel Mount | 1 | DE E | Steel Yellow Chromate Plated Cadmium | |||||||||
 Cinch Connectivity Solutions | Brass | Diallyl Phthalate (DAP) Glass Filled | -65 ░C | 125 °C | Green | Crimp | D-Sub | Signal | Housing/Shell (Unthreaded) | Plug Male Pins | 50 µin | 1.27 µm | 5 A | 50 | Gold | 3 | Panel Mount | 5 | D DD | Steel Yellow Chromate Plated Cadmium |
