R222M Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMPMAX M STR PCB SNAP C40
| Part | Voltage Rating | Center Contact Plating | Body Finish | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Frequency - Max [Max] | Mounting Type | Fastening Type | Impedance | Shield Termination | Contact Termination | Center Contact Material | Connector Type | Number of Ports | Dielectric Material | Cable Group | Cable Group | Style | Fastening Type | Adapter Series | Center Gender | Convert From (Adapter End) | Convert To (Adapter End) | Adapter Type | Conversion Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 330 VDC | Gold | Gold | Beryllium Copper Brass | -55 C | 165 °C | Gold | 6000 MHz | Through Hole | Snap-On | 50 Ohms | Solder | Solder | Brass | Receptacle Male Pin | 1 | |||||||||||
 Radiall USA, Inc. | |||||||||||||||||||||||||||
 Radiall USA, Inc. | 335 V | Gold | Gold | Brass | -55 C | 165 °C | Gold | 6000 MHz | Through Hole | Snap-On | 50 Ohms | Solder | Solder | Brass | Receptacle Male Pin | 1 | Liquid Crystal Polymer (LCP) Polyetheretherketone (PEEK) | ||||||||||

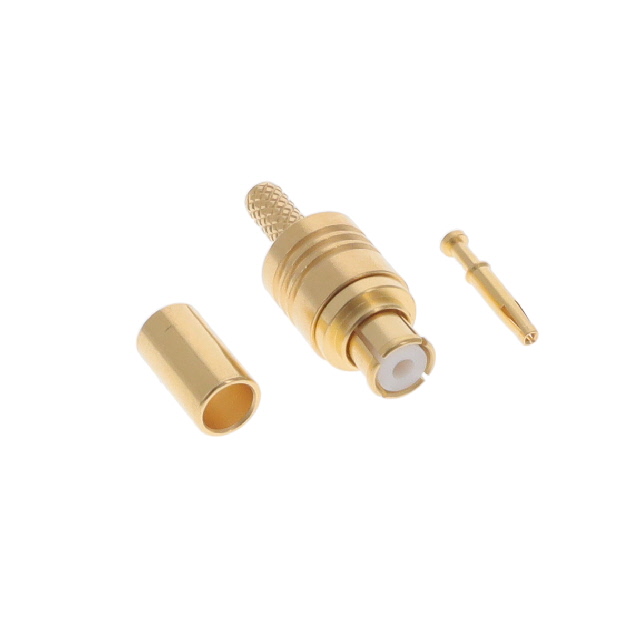

 Radiall USA, Inc. | 335 V | Gold | Gold | Brass | -55 C | 165 °C | Gold | 6000 MHz | Free Hanging (In-Line) | Snap-On | 50 Ohms | Crimp | Crimp | Beryllium Copper | Female Socket Plug | 1 | Polytetrafluoroethylene (PTFE) | RG-174 | 316 | ||||||||
 Radiall USA, Inc. | 335 V | Gold | Gold | Brass | -55 C | 165 °C | Gold | 6000 MHz | Through Hole | Snap-On | 50 Ohms | Solder | Solder | Brass | Receptacle Male Pin | 1 | Polytetrafluoroethylene (PTFE) | ||||||||||

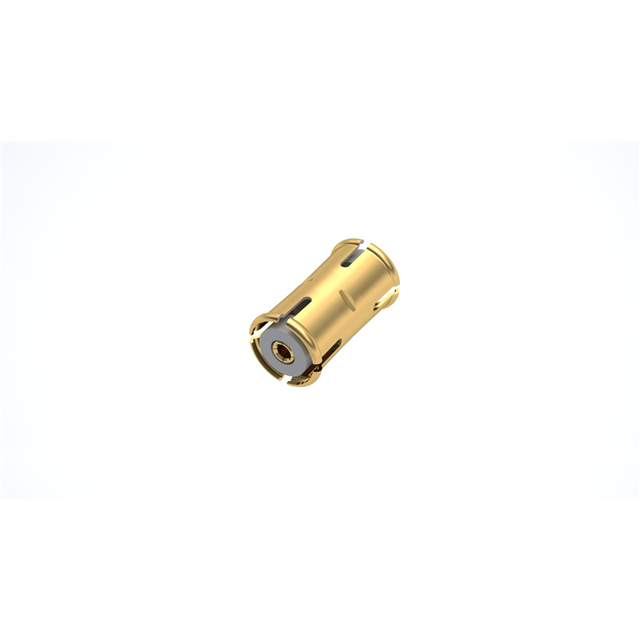

Radiall USA, Inc. | Gold | Gold | Brass | -55 C | 165 °C | 6000 MHz | Free Hanging (In-Line) | Snap-On | 50 Ohms | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Straight | Snap-On | SMP to SMP | Female to Female | Female Socket SMP Jack | SMP Jack Female Socket | Jack to Jack | Same Series | ||||||||
 Radiall USA, Inc. | 335 V | Gold | Gold | Brass | -55 C | 165 °C | Gold | 6000 MHz | Through Hole | Snap-On | 50 Ohms | Solder | Solder | Brass | Receptacle Male Pin | 1 | Polyetheretherketone (PEEK) | ||||||||||
 Radiall USA, Inc. | 335 V | Gold | Gold | Brass | -55 C | 165 °C | Gold | 10 GHz | Surface Mount | Snap-On | 50 Ohms | Solder | Solder | Brass | Receptacle Male Pin | 1 | Liquid Crystal Polymer (LCP) Polyetheretherketone (PEEK) | ||||||||||
 Radiall USA, Inc. | 335 V | Gold | Gold | Brass | -55 C | 165 °C | Gold | 6000 MHz | Surface Mount | Snap-On | 50 Ohms | Solder | Solder | Brass | Receptacle Male Pin | 1 | Polytetrafluoroethylene (PTFE) | ||||||||||
 Radiall USA, Inc. | Gold | Gold | Beryllium Copper | -55 C | 165 °C | 10 GHz | Free Hanging (In-Line) | Snap-On | 50 Ohms | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Straight | Snap-On | SMP to SMP | Female to Female | Female Socket SMP Jack | SMP Jack Female Socket | Jack to Jack | Same Series |
