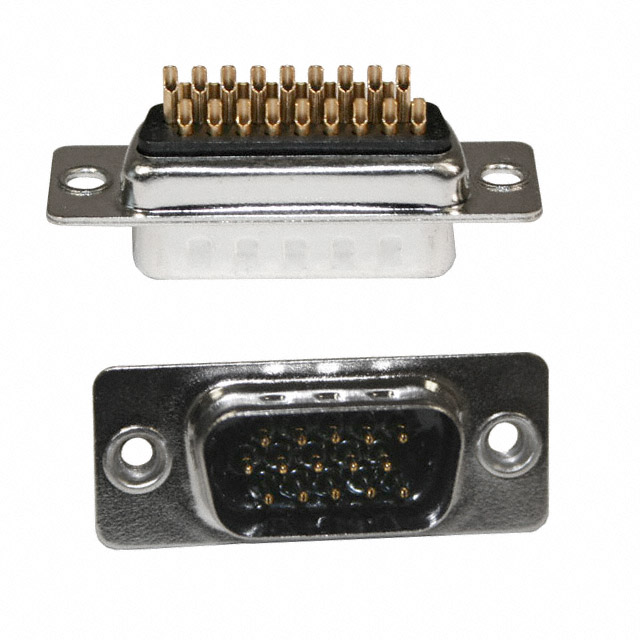

680-015 Series
Manufacturer: NorComp Inc.
Beta
⌘K
680-015-103L001 ROHS COMPLIANT: YES
| Part | Dielectric Material | Contact Form | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Style | Features | Material Flammability Rating | Ingress Protection | Current Rating (Amps) | Contact Type | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Rows [custom] | Shell Material, Finish | Contact Finish Thickness | Contact Finish | Mounting Type | Number of Positions | Flange Feature | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Stamped | Brass | 100 °C | -50 °C | D-Sub High Density | Grounding Indents | UL94 V-0 | IP66 - Dust Tight Water Resistant | 5 A | Signal | Plug Male Pins | (DE E) High Density | 1 | 3 | Nickel Plated Steel | Flash | Gold | Panel Mount | 15 | Housing/Shell (Unthreaded) | |
NorComp Inc. | Polybutylene Terephthalate (PBT) | Stamped | Brass | 100 °C | -50 °C | D-Sub High Density | Grounding Indents | UL94 V-0 | IP66 - Dust Tight Water Resistant | 5 A | Signal | Plug Male Pins | (DE E) High Density | 1 | 3 | Nickel Plated Steel | Flash | Gold | Panel Mount Through Hole | 15 | 4-40 | Solder |
NorComp Inc. | Polybutylene Terephthalate (PBT) | Stamped | Brass | 100 °C | -50 °C | D-Sub High Density | Grounding Indents | UL94 V-0 | IP66 - Dust Tight Water Resistant | 5 A | Signal | Plug Male Pins | (DE E) High Density | 1 | 3 | Nickel Plated Steel | Flash | Gold | Panel Mount | 15 | Cable Side (4-40) | |
NorComp Inc. | Polybutylene Terephthalate (PBT) | Stamped | Brass | 100 °C | -50 °C | D-Sub High Density | Grounding Indents | UL94 V-0 | IP66 - Dust Tight Water Resistant | 5 A | Signal | Plug Male Pins | (DE E) High Density | 1 | 3 | Nickel Plated Steel | Flash | Gold | Panel Mount Through Hole | 15 | Housing/Shell (Unthreaded) | Solder |
NorComp Inc. | Polybutylene Terephthalate (PBT) | Stamped | Brass | 100 °C | -50 °C | D-Sub High Density | Grounding Indents | UL94 V-0 | IP66 - Dust Tight Water Resistant | 5 A | Signal | Plug Male Pins | (DE E) High Density | 1 | 3 | Nickel Plated Steel | Flash | Gold | Panel Mount | 15 | 4-40 | |
NorComp Inc. | Polybutylene Terephthalate (PBT) | Stamped | Brass | 100 °C | -50 °C | D-Sub High Density | Grounding Indents | UL94 V-0 | IP66 - Dust Tight Water Resistant | 5 A | Signal | Plug Male Pins | (DE E) High Density | 1 | 3 | Nickel Plated Steel | Flash | Gold | Panel Mount Through Hole | 15 | Board Side (4-40) | Solder |
NorComp Inc. | Polybutylene Terephthalate (PBT) | Stamped | Brass | 100 °C | -50 °C | D-Sub High Density | Grounding Indents | UL94 V-0 | IP66 - Dust Tight Water Resistant | 5 A | Signal | Plug Male Pins | (DE E) High Density | 1 | 3 | Nickel Plated Steel | Flash | Gold | Panel Mount Through Hole | 15 | Board Side (4-40) | Solder |
