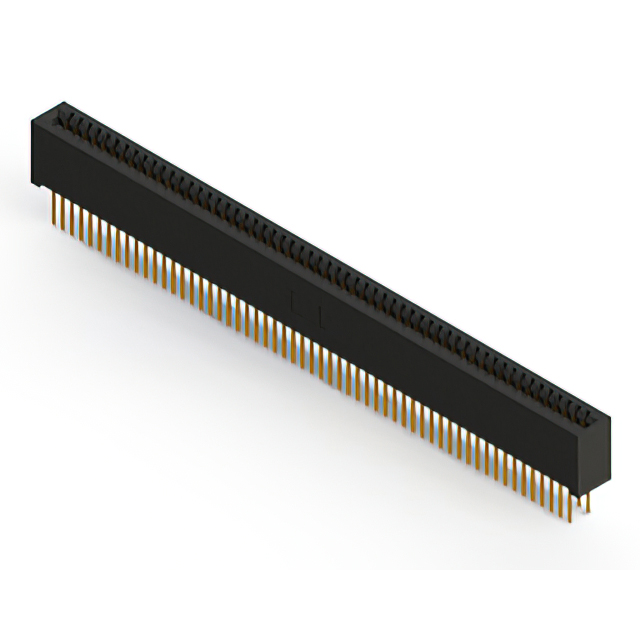

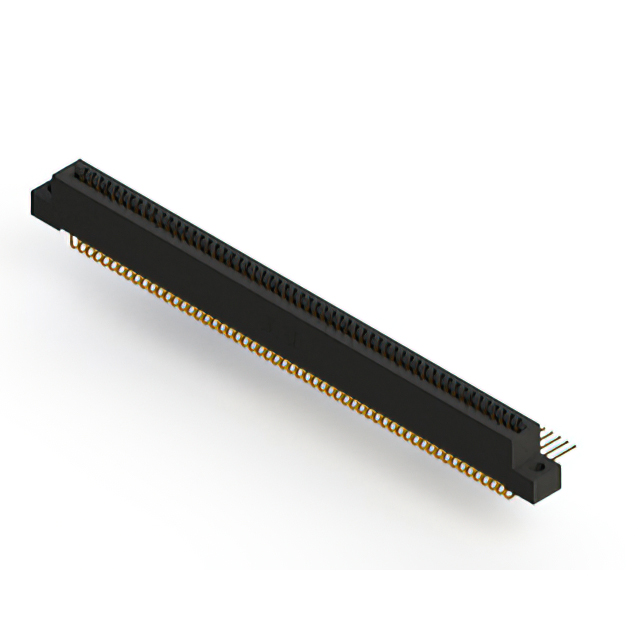

392-114 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Part	Material - Insulation	Termination Rows [custom]	Number of Positions	Gender	Contact Type	Termination	Contact Material	Card Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Mounting Type	Number of Positions/Bay/Row [custom]	Contact Finish	Read Out	Card Thickness [Max]	Card Thickness [Min]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Features
EDAC Inc. 392-114-558-202	Polyester Thermoplastic	2	114	Female	Cantilever	Solder Wire Wrap	Copper Alloy	Non Specified - Dual Edge	Black	-40 C	105 ░C	2	Right Angle Through Hole	57	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	0.25 Ám	10 Áin	0.1 "	2.54 mm

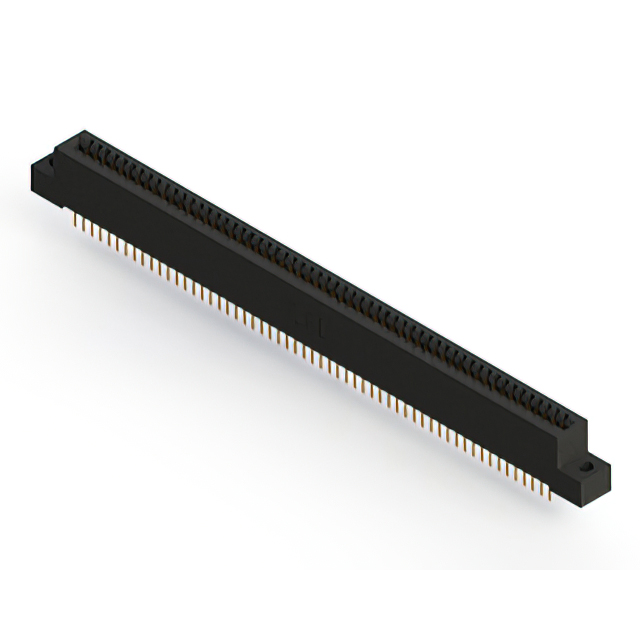

EDAC Inc. 392-114-524-204	Polyester Thermoplastic	2	114	Female	Cantilever	Solder	Copper Alloy	Non Specified - Dual Edge	Black	-40 C	105 ░C	2	Through Hole	57	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	0.25 Ám	10 Áin	0.1 "	2.54 mm

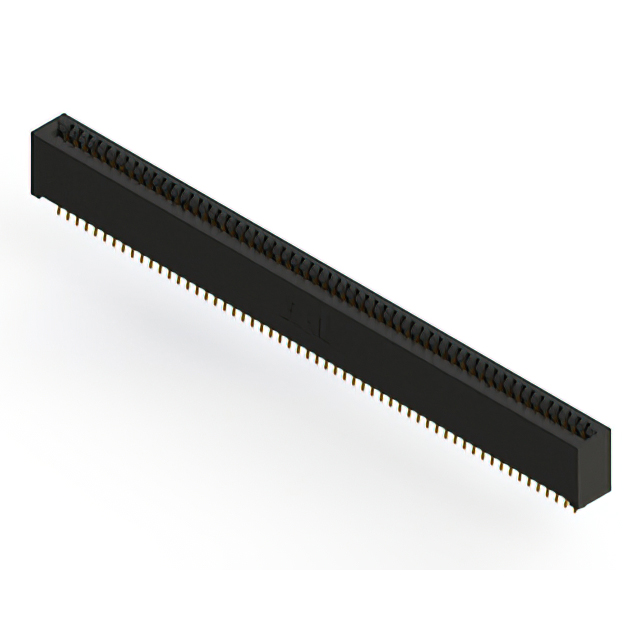

EDAC Inc. 392-114-556-201	Polyester Thermoplastic	2	114	Female	Cantilever	Solder	Copper Alloy	Non Specified - Dual Edge	Black	-40 C	105 ░C	2	Board Edge Straddle Mount	57	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm				0.25 Ám	10 Áin	0.1 "	2.54 mm	Card Extender

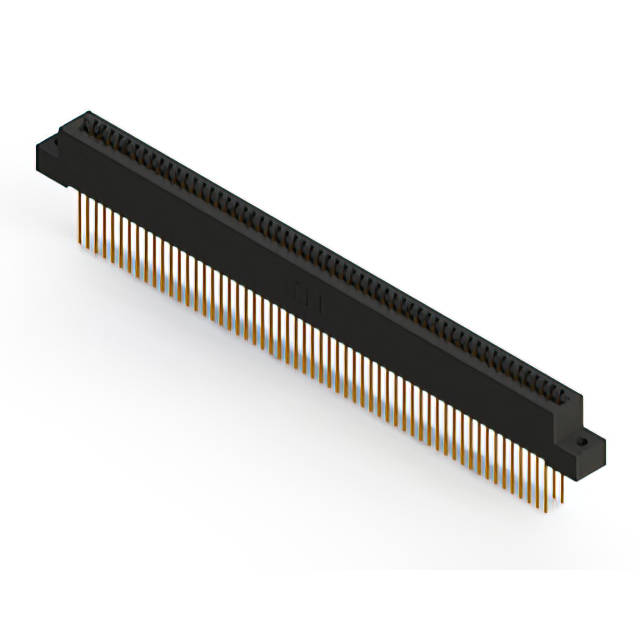

EDAC Inc. 392-114-542-202	Polyester Thermoplastic	2	114	Female	Cantilever	Wire Wrap	Copper Alloy	Non Specified - Dual Edge	Black	-40 C	105 ░C	2	Through Hole	57	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	0.25 Ám	10 Áin	0.1 "	2.54 mm
EDAC Inc. 392-114-540-207	Polyester Thermoplastic	2	114	Female	Cantilever	Wire Wrap	Copper Alloy	Non Specified - Dual Edge	Black	-40 C	105 ░C	2	Through Hole	57	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount M3 Threaded Insert Top Opening			0.25 Ám	10 Áin	0.1 "	2.54 mm
EDAC Inc. 392-114-560-207	Polyester Thermoplastic	2	114	Female	Cantilever	Solder	Copper Alloy	Non Specified - Dual Edge	Black	-40 C	105 ░C	2	Board Edge Straddle Mount	57	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount M3 Threaded Insert Top Opening			0.25 Ám	10 Áin	0.1 "	2.54 mm	Card Extender

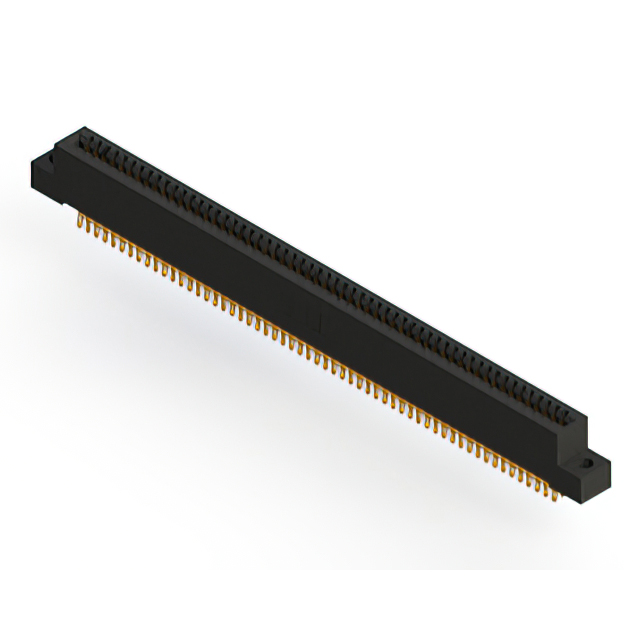

EDAC Inc. 392-114-555-204	Polyester Thermoplastic	2	114	Female	Cantilever	Solder Eyelet(s)	Copper Alloy	Non Specified - Dual Edge	Black	-40 C	105 ░C	2	Board Edge Straddle Mount	57	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	0.25 Ám	10 Áin	0.1 "	2.54 mm	Card Extender

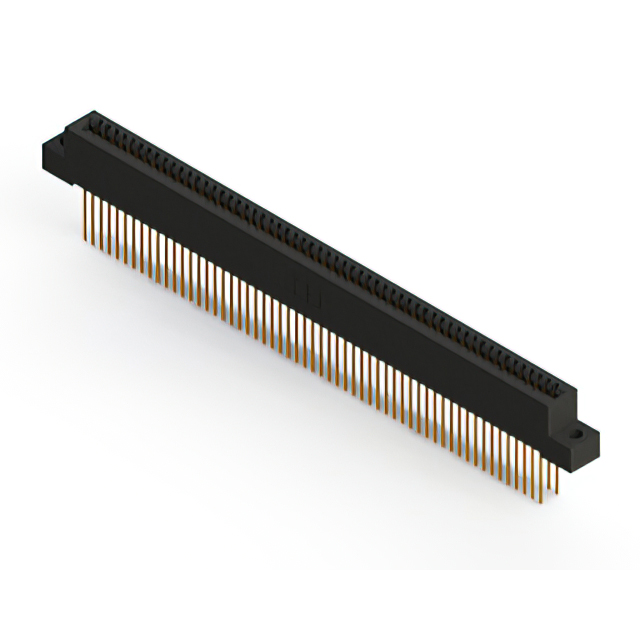

EDAC Inc. 392-114-541-204	Polyester Thermoplastic	2	114	Female	Cantilever	Wire Wrap	Copper Alloy	Non Specified - Dual Edge	Black	-40 C	105 ░C	2	Through Hole	57	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	0.25 Ám	10 Áin	0.1 "	2.54 mm

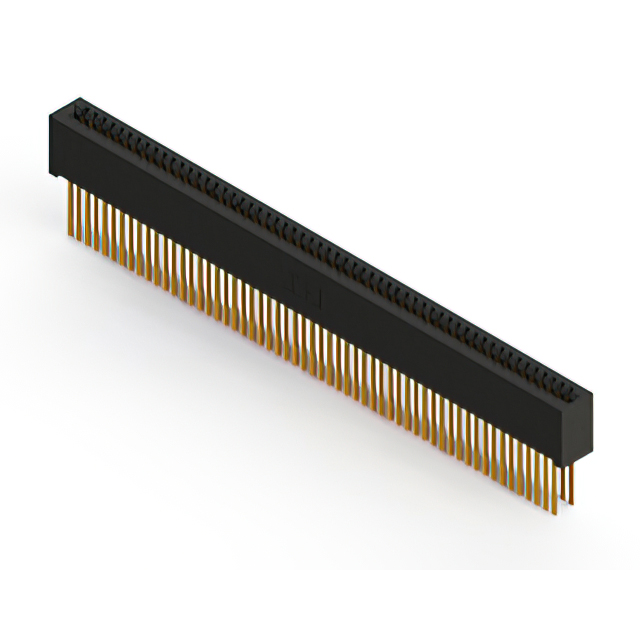

EDAC Inc. 392-114-544-201	Polyester Thermoplastic	2	114	Female	Cantilever	Wire Wrap	Copper Alloy	Non Specified - Dual Edge	Black	-40 C	105 ░C	2	Through Hole	57	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm				0.25 Ám	10 Áin	0.1 "	2.54 mm

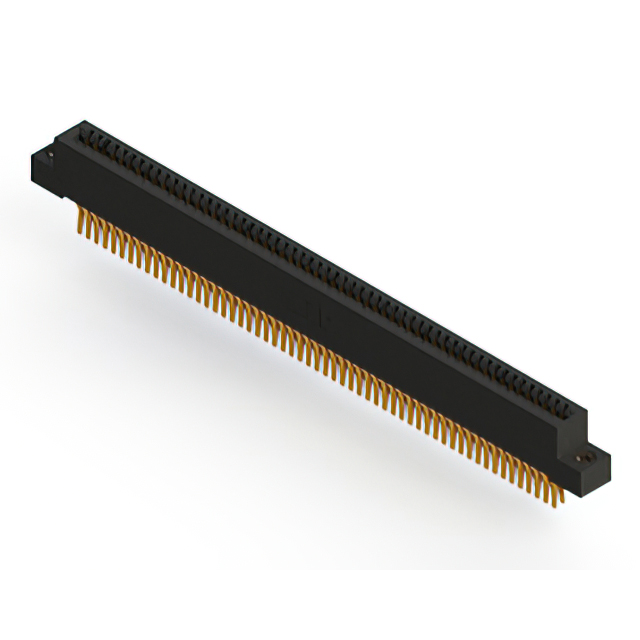

EDAC Inc. 392-114-560-208	Polyester Thermoplastic	2	114	Female	Cantilever	Solder	Copper Alloy	Non Specified - Dual Edge	Black	-40 C	105 ░C	2	Board Edge Straddle Mount	57	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening			0.25 Ám	10 Áin	0.1 "	2.54 mm	Card Extender
