179849 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

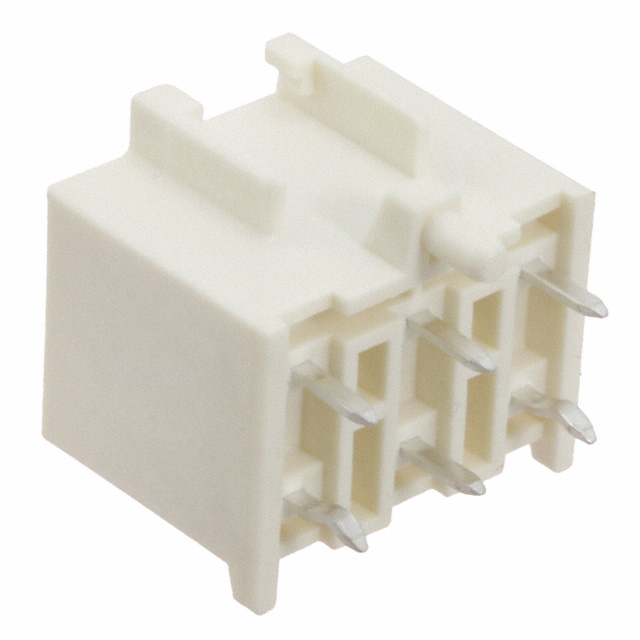

AMP POWER D/LOCK T/HDR ASSY 6P
| Part | Applications | Contact Finish - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Post [x] | Contact Length - Post [x] | Shrouding | Insulation Material | Number of Positions | Contact Type | Style | Number of Rows [custom] | Contact Material | Number of Positions Loaded | Insulation Height [z] | Insulation Height | Mounting Type | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Features | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Fastening Type | Contact Shape | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | Tin | 0.256 in | 6.5 mm | 3.81 mm | 0.15 in | Shrouded - 4 Wall | Nylon 6/6 Polyamide (PA66) | 6 | Tab | Board to Cable/Wire | 2 | Copper Alloy | All | 0.575 in | 14.6 mm | Through Hole | UL94 V-0 | 0.256 in | 6.5 mm | Varies by Wire Gauge | Board Guide | Kinked Pin Solder | -30 ░C | 105 ░C | Natural | Locking Ramp | Rectangular | Header |
