MNU18 Series

Catalog

QUICK DISCONNECT TERMINAL, SCOTCHLOK SERIES, MALE QUICK DISCONNECT, 4.75MM X 0.51MM, 0.187" X 0.02"

Part	Gender	Features	Tab Thickness	Tab Thickness	Terminal Type	Tab Width [x]	Tab Width [x]	Color	Termination	Mounting Type	Length - Overall [x]	Length - Overall [x]	Insulation	Contact Finish	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter	Insulation Diameter
3M Electronic Specialty MNU18-187DMIK	Male	Butted Seam	0.02 in	0.51 mm	Standard	0.187 in	4.75 mm	Red	Crimp	Free Hanging (In-Line)	0.87 in	22.1 mm	Fully Insulated	Tin	Copper ETP	22 AWG	17.5 AWG
3M Electronic Specialty MNU18-187DFIX-BOTTLE	Female	Butted Seam	0.02 in	0.51 mm	Standard	0.187 in	4.75 mm	Red	Crimp	Free Hanging (In-Line)	0.81 "	20.57 mm	Fully Insulated	Tin	Brass	22 AWG	17.5 AWG	0.145 in	3.68 mm

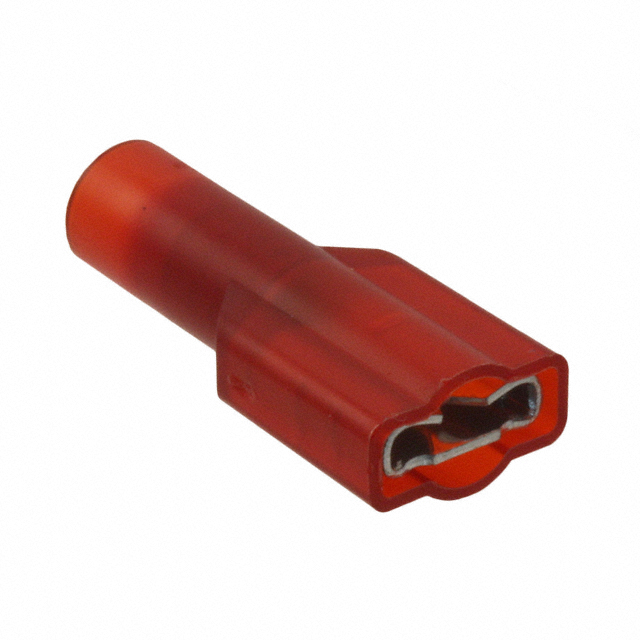

3M Electronic Specialty MNU18-250DFIK	Female	Butted Seam	0.032 in	0.81 mm	Standard	0.25 in	6.35 mm	Red	Crimp	Free Hanging (In-Line)	0.87 in	22.1 mm	Fully Insulated	Tin	Brass	22 AWG	17.5 AWG	0.145 in	3.68 mm
3M Electronic Specialty MNU18-187DFIK	Female	Butted Seam	0.02 in	0.51 mm	Standard	0.187 in	4.75 mm	Red	Crimp	Free Hanging (In-Line)	0.81 "	20.57 mm	Fully Insulated	Tin	Brass	22 AWG	17.5 AWG	0.145 in	3.68 mm
3M Electronic Specialty MNU18-250DFIX-BOTTLE	Female	Butted Seam	0.032 in	0.81 mm	Standard	0.25 in	6.35 mm	Red	Crimp	Free Hanging (In-Line)	0.87 in	22.1 mm	Fully Insulated	Tin	Brass	22 AWG	17.5 AWG	0.145 in	3.68 mm
