PBC33 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 33POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Contact Finish - Mating	Contact Finish - Post	Number of Positions Loaded	Style	Number of Rows	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Shrouding	Number of Positions [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [custom]	Contact Length - Post [custom]	Termination	Contact Shape	Mounting Type	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Material	Insulation Height	Insulation Height	Contact Type	Material Flammability Rating	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PBC33SBBN	2.54 µm	100 µin	Header Breakaway	Gold	Tin	All	Board to Board Cable	1	0.23 in	5.84 mm	Push-Pull	0.25 µm	10 µin	Black	Unshrouded	33	-65 ░C	125 °C	5.08 mm	0.2 "	Solder	Square	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Phosphor Bronze	3.56 mm	0.14 in	Male Pin	UL94 V-0	3 A

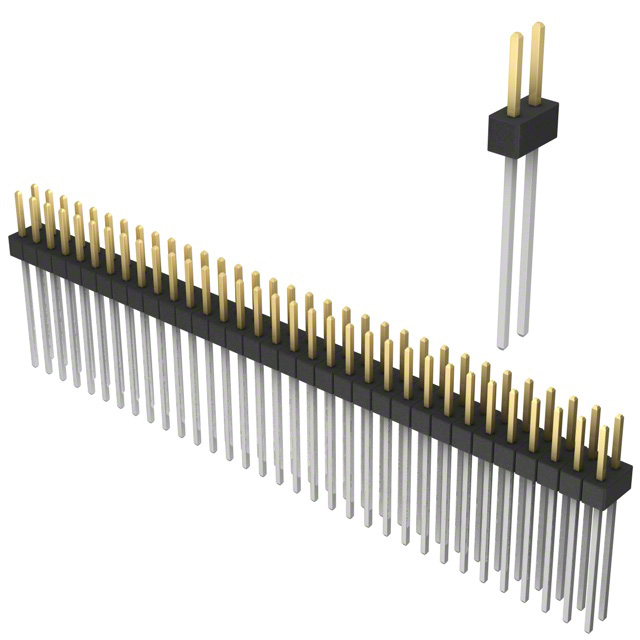

Sullins Connector Solutions PBC33DAFN	2.54 µm	100 µin	Header Breakaway	Gold	Tin	All	Board to Board Cable		0.23 in	5.84 mm	Push-Pull	0.25 µm	10 µin	Black	Unshrouded		-65 ░C	125 °C	15.75 mm	0.62 "	Solder	Square	Through Hole	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Phosphor Bronze	2.54 mm	0.1 in	Male Pin	UL94 V-0	3 A	0.95 in	24.13 mm	2	0.1 in	2.54 mm	66
Sullins Connector Solutions PBC33SADN	2.54 µm	100 µin	Header Breakaway	Gold	Tin	All	Board to Board Cable	1	0.23 in	5.84 mm	Push-Pull	0.25 µm	10 µin	Black	Unshrouded	33	-65 ░C	125 °C			Solder	Square	Through Hole	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Phosphor Bronze	2.54 mm	0.1 in	Male Pin	UL94 V-0	3 A							19.05 mm	0.75 in	10.67 mm	0.42 in
Sullins Connector Solutions PBC33DFDN	2.54 µm	100 µin	Header Breakaway	Gold	Tin	All	Board to Board Cable		0.318 in	8.08 mm	Push-Pull	0.25 µm	10 µin	Black	Unshrouded		-65 ░C	125 °C			Solder	Square	Through Hole	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Phosphor Bronze	2.54 mm	0.1 in	Male Pin	UL94 V-0	3 A	0.838 in	21.29 mm	2	0.1 in	2.54 mm	66			10.67 mm	0.42 in
Sullins Connector Solutions PBC33DABN	2.54 µm	100 µin	Header Breakaway	Gold	Tin	All	Board to Board Cable		0.23 in	5.84 mm	Push-Pull	0.25 µm	10 µin	Black	Unshrouded		-65 ░C	125 °C			Solder	Square	Through Hole	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Phosphor Bronze	2.54 mm	0.1 in	Male Pin	UL94 V-0	3 A	0.56 in	14.22 mm	2	0.1 in	2.54 mm	66			5.84 mm	0.23 "
Sullins Connector Solutions PBC33DFEN	2.54 µm	100 µin	Header Breakaway	Gold	Tin	All	Board to Board Cable		0.318 in	8.08 mm	Push-Pull	0.25 µm	10 µin	Black	Unshrouded		-65 ░C	125 °C			Solder	Square	Through Hole	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Phosphor Bronze	2.54 mm	0.1 in	Male Pin	UL94 V-0	3 A	0.938 in	23.83 mm	2	0.1 in	2.54 mm	66			13.21 mm	0.52 in

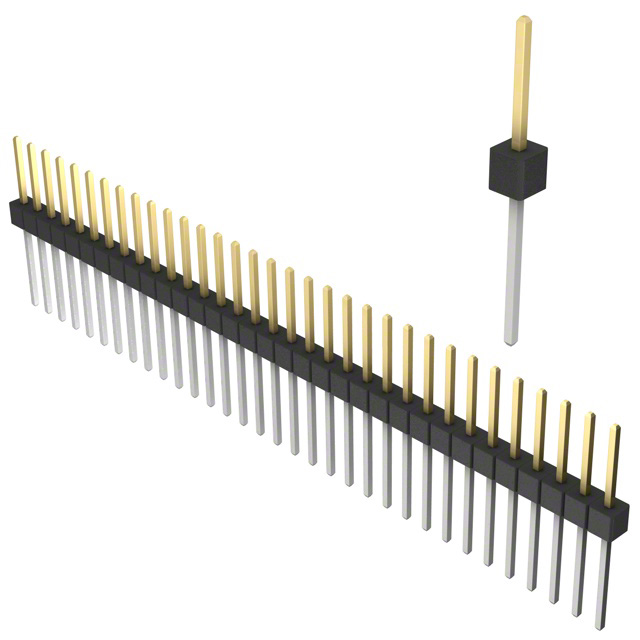

Sullins Connector Solutions PBC33SFDN	2.54 µm	100 µin	Header Breakaway	Gold	Tin	All	Board to Board Cable	1	0.318 in	8.08 mm	Push-Pull	0.25 µm	10 µin	Black	Unshrouded	33	-65 ░C	125 °C			Solder	Square	Through Hole	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Phosphor Bronze	2.54 mm	0.1 in	Male Pin	UL94 V-0	3 A	0.838 in	21.29 mm							10.67 mm	0.42 in
Sullins Connector Solutions PBC33DAAN	2.54 µm	100 µin	Header Breakaway	Gold	Tin	All	Board to Board Cable		0.23 in	5.84 mm	Push-Pull	0.25 µm	10 µin	Black	Unshrouded		-65 ░C	125 °C			Solder	Square	Through Hole	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Phosphor Bronze	2.54 mm	0.1 in	Male Pin	UL94 V-0	3 A			2	0.1 in	2.54 mm	66	11.43 mm	0.45 in	3.05 mm	0.12 in

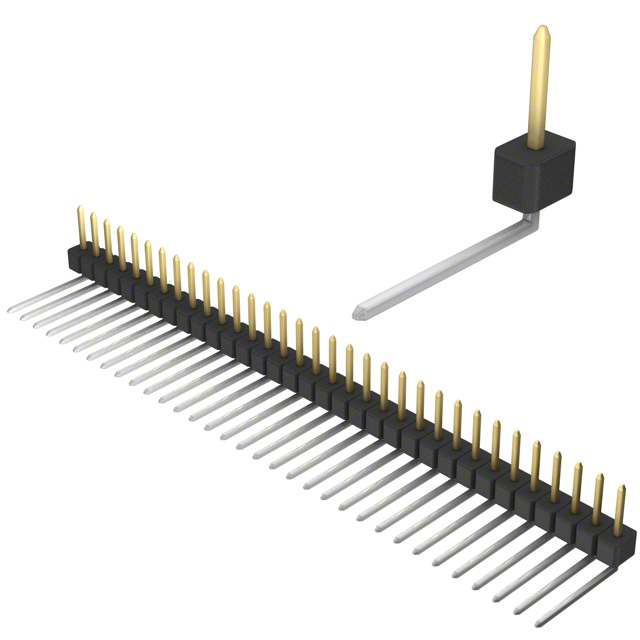

Sullins Connector Solutions PBC33SBDN	2.54 µm	100 µin	Header Breakaway	Gold	Tin	All	Board to Board Cable	1	0.23 in	5.84 mm	Push-Pull	0.25 µm	10 µin	Black	Unshrouded	33	-65 ░C	125 °C			Solder	Square	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Phosphor Bronze	3.56 mm	0.14 in	Male Pin	UL94 V-0	3 A									10.16 mm	0.4 in

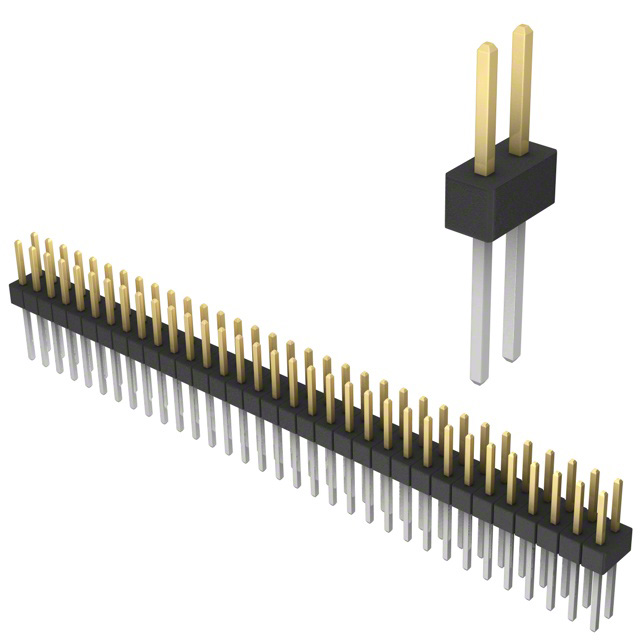

Sullins Connector Solutions PBC33DACN	2.54 µm	100 µin	Header Breakaway	Gold	Tin	All	Board to Board Cable		0.23 in	5.84 mm	Push-Pull	0.25 µm	10 µin	Black	Unshrouded		-65 ░C	125 °C			Solder	Square	Through Hole	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Phosphor Bronze	2.54 mm	0.1 in	Male Pin	UL94 V-0	3 A	0.65 in	16.51 mm	2	0.1 in	2.54 mm	66			8.13 mm	0.32 in
