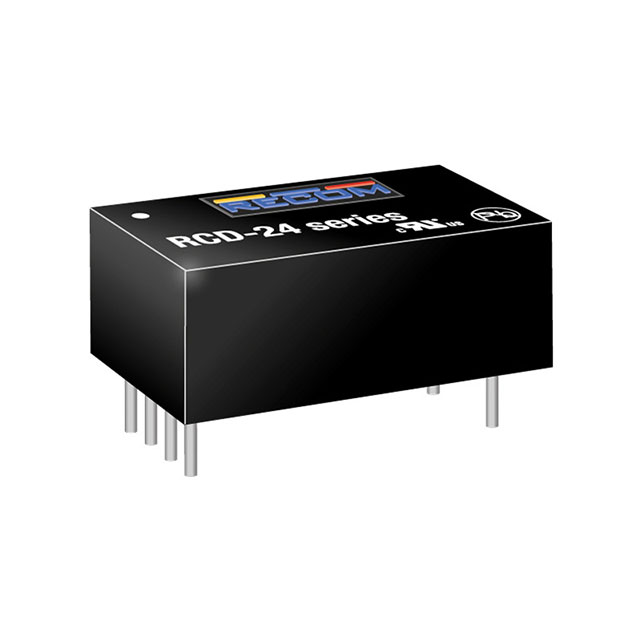

RCD-24 Series

LED Power Supplies 0.35A LED-Driver REG 4.5-36Vin 2-35Vout

Manufacturer: Recom Power

Catalog

LED Power Supplies 0.35A LED-Driver REG 4.5-36Vin 2-35Vout

Catalog

LED Power Supplies 0.35A LED-Driver REG 4.5-36Vin 2-35Vout

Part	Approval Agency	Voltage - Output [Min]	Voltage - Output [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Dimming	Efficiency	Voltage - Input (Min) [Min]	Power (Watts)	Features	Termination Style	Ratings	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Type	Number of Outputs	Mounting Type	Weight	Weight	Weight [custom]	Weight [custom]	Package / Case
Recom Power RCD-24-0.30/W/X3	cULus	2 V	35 V	85 °C	-40 C	Buck	12.6 mm	8.5 mm	22.1 mm	0.33 in	0.87 in	0.49 "	Analog PWM	96 %	4.5 V	11 W	Remote On/Off SCP	Wire Leads	IP67	36 V	0.3 A	Constant Current	1
Recom Power RCD-24-0.60/W/VREF	cULus	2 V	35 V	75 ░C	-40 C	Buck	12.6 mm	8.5 mm	22.1 mm	0.33 in	0.87 in	0.49 "	Analog	96 %	4.5 V	21 W	SCP	Wire Leads	IP67	36 V	600 mA	Constant Current	1	Chassis Mount	6.8 g	0.015 lb
Recom Power RCD-24-0.50/VREF	cULus	2 V	35 V	80 °C	-40 C	Buck	12.6 mm	8.5 mm	22.1 mm	0.33 in	0.87 in	0.49 "	Analog	96 %	4.5 V	18 W	SCP			36 V	500 mA	Constant Current	1	Through Hole			0.01 lb	4.54 g	6-DIP Module
Recom Power RCD-24-0.50/W/X3	cULus	2 V	35 V	80 °C	-40 C	Buck	12.6 mm	8.5 mm	22.1 mm	0.33 in	0.87 in	0.49 "	Analog PWM	96 %	4.5 V	18 W	Remote On/Off SCP	Wire Leads	IP67	36 V	500 mA	Constant Current	1

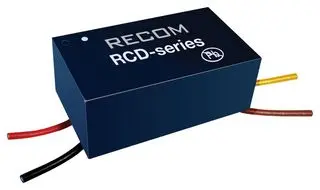

Recom Power RCD-24-1.00/W/X1	cULus	3 V	31 V	71 °C	-40 C	Buck	12.6 mm	8.5 mm	22.1 mm	0.33 in	0.87 in	0.49 "	Analog	96 %	6 V	33 W	SCP	Wire Leads	IP67	36 V	1 A	Constant Current	1
Recom Power RCD-24-0.60/W	cULus	2 V	35 V	75 ░C	-40 C	Buck	12.6 mm	8.5 mm	22.1 mm	0.33 in	0.87 in	0.49 "		96 %	4.5 V	21 W	SCP	Wire Leads	IP67	36 V	600 mA	Constant Current	1
Recom Power RCD-24-0.50/W/X1	cULus	2 V	35 V	80 °C	-40 C	Buck	12.6 mm	8.5 mm	22.1 mm	0.33 in	0.87 in	0.49 "	Analog	96 %	4.5 V	18 W	SCP	Wire Leads	IP67	36 V	500 mA	Constant Current	1	Chassis Mount	6.8 g	0.015 lb
Recom Power RCD-24-0.30/W/X2	cULus	2 V	35 V	85 °C	-40 C	Buck	12.6 mm	8.5 mm	22.1 mm	0.33 in	0.87 in	0.49 "	PWM	96 %	4.5 V	11 W	Remote On/Off SCP	Wire Leads	IP67	36 V	0.3 A	Constant Current	1	Chassis Mount	6.8 g	0.015 lb
Recom Power RCD-24-0.35/W/X1	cULus	2 V	35 V	85 °C	-40 C	Buck	12.6 mm	8.5 mm	22.1 mm	0.33 in	0.87 in	0.49 "	Analog	96 %	4.5 V	12 W	SCP	Wire Leads	IP67	36 V	350 mA	Constant Current	1
Recom Power RCD-24-0.30/VREF	cULus	2 V	35 V	85 °C	-40 C	Buck	12.6 mm	8.5 mm	22.1 mm	0.33 in	0.87 in	0.49 "	Analog	96 %	4.5 V	11 W	SCP			36 V	0.3 A	Constant Current	1	Through Hole					6-DIP Module
