CSJ-SGFB Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CBL ASSY SMA-MHF4 JCK-PLG 3.937"
| Part | Cable Type | Cable Type [diameter] | Frequency - Max [Max] | Overall Impedance | 1st Connector | 1st Connector Mounting Type | Color | 1st Connector Mounting Feature | Style | 1st Contact Gender | 2nd Connector Mounting Type | 2nd Contact Gender | Length | Length | 2nd Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

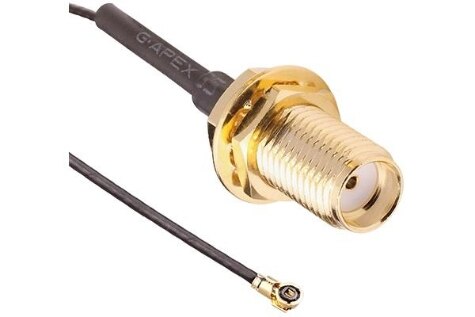

 TE Connectivity AMP Connectors | Coaxial Cable | 0.81 mm | 6000 MHz | 50 Ohms | SMA Jack | Panel Mount | Black | Bulkhead - Front Side Nut | SMA to I-PEX MHF4 | Female | Free Hanging (In-Line) | Female | 3.937 in | 100 mm | I-PEX MHF4 Plug Right Angle |
 TE Connectivity AMP Connectors | Coaxial Cable | 0.81 mm | 6000 MHz | 50 Ohms | SMA Jack | Panel Mount | Black | Bulkhead - Front Side Nut | SMA to I-PEX MHF4 | Female | Free Hanging (In-Line) | Female | 7.874 in | 200 mm | I-PEX MHF4 Plug Right Angle |

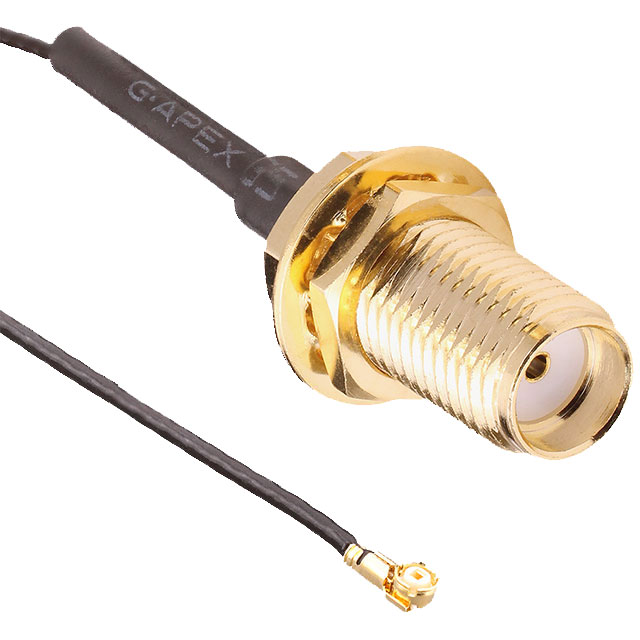

 TE Connectivity AMP Connectors | Coaxial Cable | 0.81 mm | 6000 MHz | 50 Ohms | SMA Jack | Panel Mount | Black | Bulkhead - Front Side Nut | SMA to W.FL I-PEX MHF3 | Female | Free Hanging (In-Line) | Female | 3.937 in | 100 mm | W.FL I-PEX MHF3 Plug Right Angle |
TE Connectivity AMP Connectors | Coaxial Cable | 0.81 mm | 6000 MHz | 50 Ohms | SMA Jack | Panel Mount | Black | Bulkhead - Front Side Nut | SMA to W.FL I-PEX MHF3 | Female | Free Hanging (In-Line) | Female | 7.874 in | 200 mm | W.FL I-PEX MHF3 Plug Right Angle |
