1624094 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

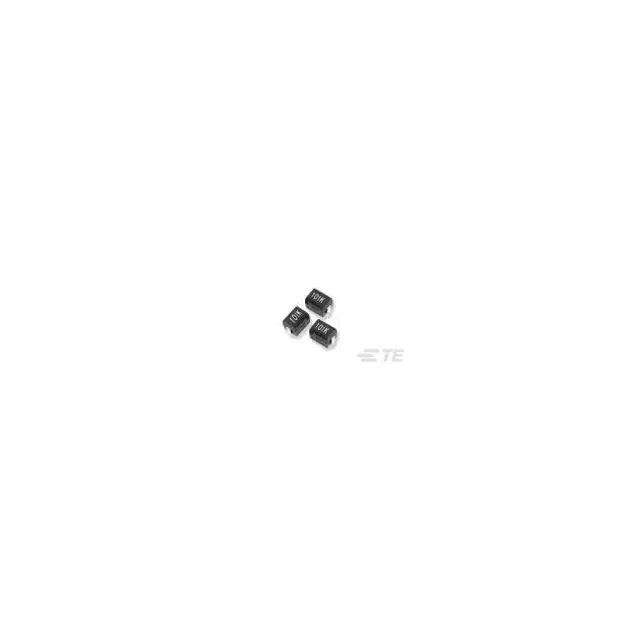

FIXED IND 3.3UH 355MA 800MOHM SM
| Part | Material - Core | Inductance | Q @ Freq | Inductance Frequency - Test | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Tolerance | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | DC Resistance (DCR) [Max] | Package / Case | Shielding | Frequency - Self Resonant |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Ferrite | 3.3 µH | 7.96 MHz 50 | 7.96 MHz | 0.177 in | 4.5 mm | 3.2 mm | 0.126 in | 10 % | Surface Mount | 0.134 in | 3.4 mm | 355 mA | -30 ░C | 100 °C | 800 mOhm | 1812 (4532 Metric) | Unshielded | 45 MHz |
