RT6255 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K

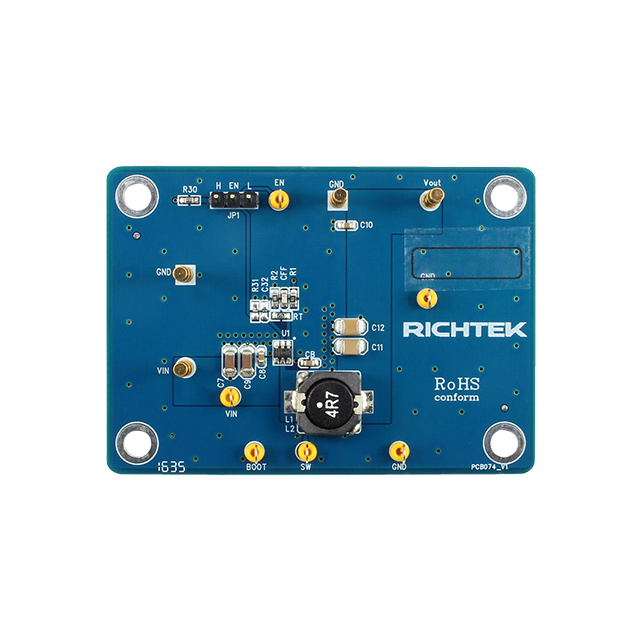

EVAL MODULE FOR RT6255AHGJ6F
| Part | Outputs and Type | Outputs and Type | Board Type | Supplied Contents | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Main Purpose | Voltage - Output | Current - Output | Voltage - Input [Max] | Voltage - Input [Min] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Function | Mounting Type | Voltage - Output (Min/Fixed) | Voltage - Input (Max) [Max] | Supplier Device Package | Voltage - Output (Max) [Max] | Output Configuration | Synchronous Rectifier | Number of Outputs | Output Type | Topology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | Buck | 500 kHz | Board(s) | RT6255A | DC/DC Step Down | 5 V | 5 A | 18 V | 4.5 V | |||||||||||||||
 Richtek USA Inc. | 500 kHz | 5 A | SOT-23-8 Thin TSOT-23-8 | 85 C | -40 ¯C | 4.5 V | Step-Down | Surface Mount | 0.6 V | 18 V | TSOT-23-8 | 5 V | Positive | 1 | Adjustable | Buck |
