M1WXK Series

Catalog

IDC CABLE - MPL34K/MC34M/X

Part	Number of Positions [custom]	Pitch - Connector	Pitch - Connector	Shielding	Connector Type	Color	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Contact Finish	Number of Rows [custom]	Cable Termination	Length	Length	Features	Number of Positions

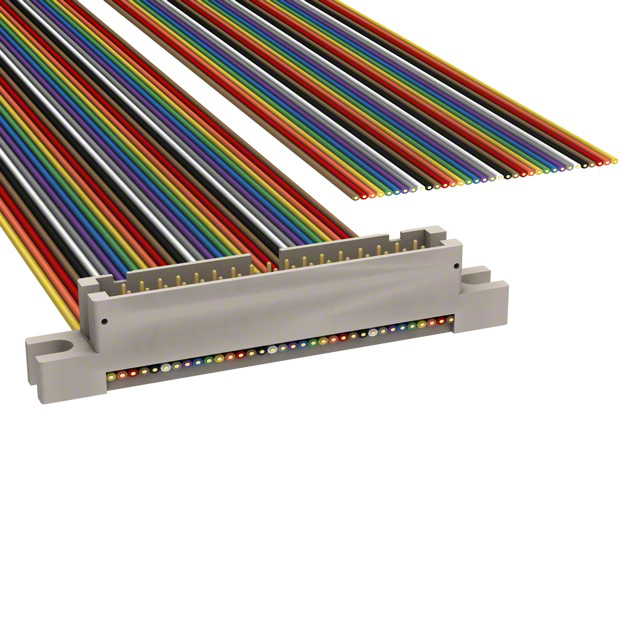

3M Electronic Specialty M1WXK-3436R	34	0.1 in	2.54 mm	Unshielded	Plug to Cable	Multiple Ribbon	30 Áin	0.76 Ám	0.05 in	1.27 mm	Gold	2	IDC	91.44 cm	3 ft	Flange Polarizing Key
3M Electronic Specialty M1WXK-3636R		0.1 in	2.54 mm	Unshielded	Plug to Cable	Multiple Ribbon	30 Áin	0.76 Ám	0.05 in	1.27 mm	Gold	2	IDC	91.44 cm	3 ft	Flange Polarizing Key	36

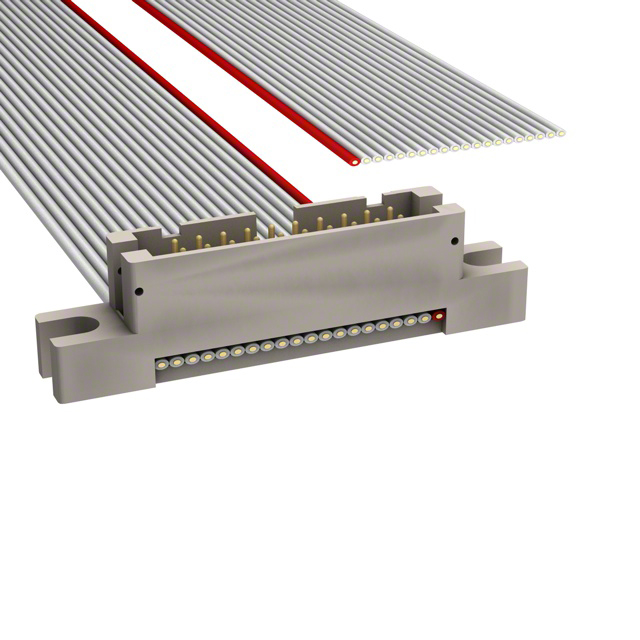

3M Electronic Specialty M1WXK-2036J		0.1 in	2.54 mm	Unshielded	Plug to Cable		30 Áin	0.76 Ám	0.05 in	1.27 mm	Gold	2	IDC	91.44 cm	3 ft	Flange Polarizing Key	20

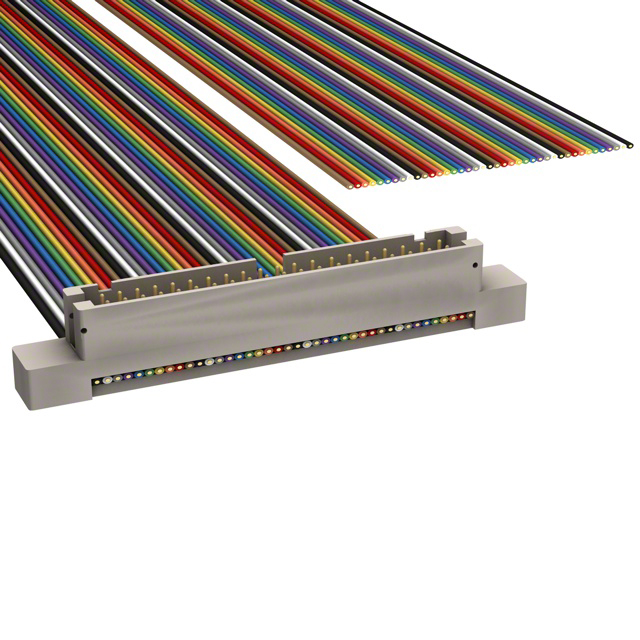

3M Electronic Specialty M1WXK-4040K		0.1 in	2.54 mm	Unshielded	Plug to Cable	Multiple Twisted Pair (Flat)	30 Áin	0.76 Ám	0.05 in	1.27 mm	Gold	2	IDC	1.02 m	3.34 ft	Flange Polarizing Key	40
3M Electronic Specialty M1WXK-4036R		0.1 in	2.54 mm	Unshielded	Plug to Cable	Multiple Ribbon	30 Áin	0.76 Ám	0.05 in	1.27 mm	Gold	2	IDC	91.44 cm	3 ft	Flange Polarizing Key	40
3M Electronic Specialty M1WXK-6436J		0.1 in	2.54 mm	Unshielded	Plug to Cable		30 Áin	0.76 Ám	0.05 in	1.27 mm	Gold	2	IDC	91.44 cm	3 ft	Flange Polarizing Key	64
3M Electronic Specialty M1WXK-3440K	34	0.1 in	2.54 mm	Unshielded	Plug to Cable	Multiple Twisted Pair (Flat)	30 Áin	0.76 Ám	0.05 in	1.27 mm	Gold	2	IDC	1.02 m	3.34 ft	Flange Polarizing Key

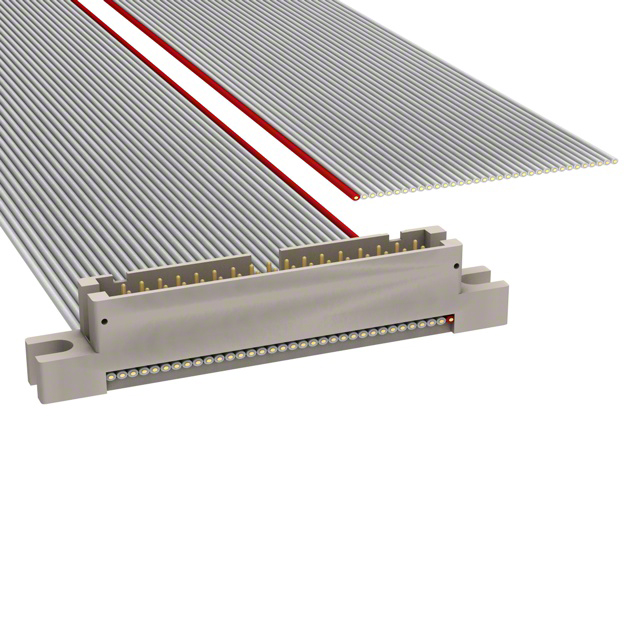

3M Electronic Specialty M1WXK-3436J	34	0.1 in	2.54 mm	Unshielded	Plug to Cable		30 Áin	0.76 Ám	0.05 in	1.27 mm	Gold	2	IDC	91.44 cm	3 ft	Flange Polarizing Key
3M Electronic Specialty M1WXK-5036R		0.1 in	2.54 mm	Unshielded	Plug to Cable	Multiple Ribbon	30 Áin	0.76 Ám	0.05 in	1.27 mm	Gold	2	IDC	91.44 cm	3 ft	Flange Polarizing Key	50
3M Electronic Specialty M1WXK-6440K		0.1 in	2.54 mm	Unshielded	Plug to Cable	Multiple Twisted Pair (Flat)	30 Áin	0.76 Ám	0.05 in	1.27 mm	Gold	2	IDC	1.02 m	3.34 ft	Flange Polarizing Key	64
