89705 Series
Manufacturer: Belden Inc.
Beta
⌘K

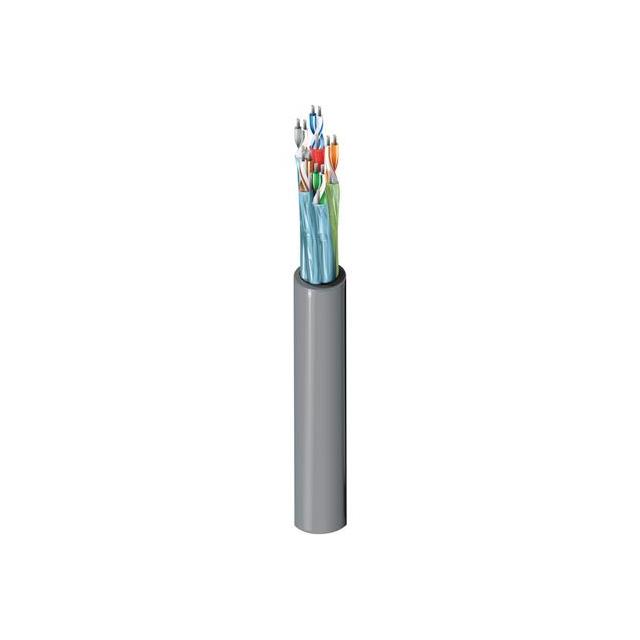

MULTI-PAIR 10CON 24AWG GRY
| Part | Shield Material | Shield Coverage | Conductor Insulation | Wire Gauge | Jacket Color | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Number of Conductors | Usage | Jacket (Insulation) Material | Ratings | Features | Conductor Material | Length | Length | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Foam Fluorinated Ethylene-Propylene (FFEP) | 24 AWG | Gray | Foil | 8.31 mm | 0.327 " | 0.014 in | 0.356 mm | -40 C | 150 °C | 7 | 32 AWG | 300 VDC | 10 | Computer | Plenum Polyvinylidene Fluoride (PVDF) | UL Style CMP | Drain Wire | Copper Tinned | 304.8 m | 1000 ft | Multi-Pair |
