Hercules Series

Catalog

ANTENNAS HERCULES MA520 2IN1 PERMANENT MOUNT 3G/2G WI-FI

Part	Gain	Frequency (Center/Band)	Ingress Protection	Features	Applications	Power - Max [Max]	Height (Max) [Max] [z]	Height (Max)	Frequency Range [Min]	Frequency Range [Max]	Number of Bands	Antenna Type	Return Loss	Frequency Group	RF Family/Standard	Mounting Type	Termination	Termination	Height (Max) [Max] [z]	VSWR	Frequency Group [Max]	Frequency Group [Min]

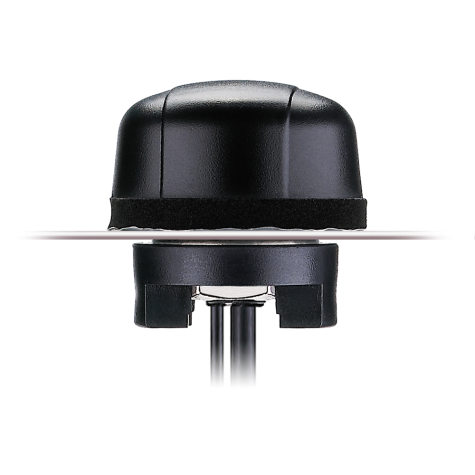

Taoglas Limited MA520.A.BC.008	-3.2 dBi -1.1 dBi -1 dBi 0.4 dBi 1 dBi 1.5 dBi 2.1 dBi	1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 5 GHz 850 MHz 900 MHz	IP67 IP69K	Cable - 2m	CDMA EVDO GPRS GSM HSPA UMTS WCDMA Wi-Fi	10 W	1.122 in	28.5 mm	1.71 GHz 2.4 GHz 5 GHz 850 MHz	2.17 GHz 2.483 GHz 5.825 GHz 960 MHz	7	Dome	-20.3 dB -19.5 dB -18 dB -16.5 dB -15 dB -8.5 dB -8.1 dB	Wide Band	Cellular WiFi	Panel Mount	RP-SMA Male (2)	SMA Male
Taoglas Limited IS.01.B.305111	1.6 dBi	430 MHz	IP69K			5 W	1.142 in		400 MHz	460 MHz	1	Dome		UHF		Panel Mount			29 mm	1.8	1 GHz	300 MHz
Taoglas Limited IS.04.B.301111	2.09 dBi	869 MHz	IP69K			10 W	1.142 in		868 MHz	870 MHz	1	Dome	-21.93 dB	UHF		Panel Mount			29 mm	2.5	1 GHz	300 MHz
