DR45 Series

Solid State Relays - Industrial Mount SSR Relay, DIN Rail Mount 45mm, 600VAC/45A, 4-32VDC In, Instantaneous

Catalog

Solid State Relays - Industrial Mount SSR Relay, DIN Rail Mount 45mm, 600VAC/45A, 4-32VDC In, Instantaneous

Part	Package / Case	Load Current	Mounting Type	Voltage - Load [Max]	Voltage - Load [Min]	Termination Style	Output Type	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]

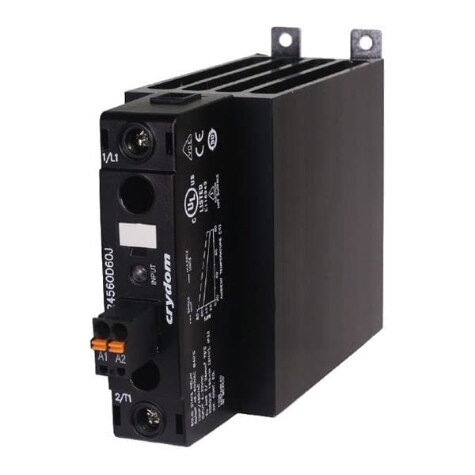

Sensata-Crydom DR4560D45RJ	SSR with Integrated Heat Sink	45 A	DIN Rail	600 V	48 V	Spring Terminal	AC	32 VDC	4 V	cULus VDE	80 °C	-40 C
Sensata-Crydom DR4560D60R	SSR with Integrated Heat Sink	60 A	DIN Rail	600 V	48 V	Screw Terminal	AC	32 VDC	4 V	cULus VDE	80 °C	-40 C
Sensata-Crydom DR4560D45	SSR with Integrated Heat Sink	45 A	DIN Rail	600 V	48 V	Screw Terminal	AC Zero Cross	32 VDC	4 V	cULus VDE	80 °C	-40 C
Sensata-Crydom DR4560D60J	SSR with Integrated Heat Sink	60 A	DIN Rail	600 V	48 V	Spring Terminal	AC Zero Cross	32 VDC	4 V	cULus VDE	80 °C	-40 C

Solid State Relays - Industrial Mount SSR Relay, DIN Rail Mount 45mm, 600VAC/45A, 4-32VDC In, Instantaneous
