Terminals MALE COUPLER 16-14
Terminals MALE COUPLER 16-14
| Part | Mounting Type | Features | Termination | Color | Terminal Type | Contact Material | Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Length - Overall [x] | Length - Overall [x] | Tab Width [x] | Tab Width [x] | Tab Thickness | Tab Thickness | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Free Hanging (In-Line) | Serrated Termination | Crimp | Red | Standard | Brass | Fully Insulated | 22 AWG | 17.5 AWG | Nickel | 22.86 mm | 0.9 " | 6.35 mm | 0.25 in | 0.81 mm | 0.032 in | Male |

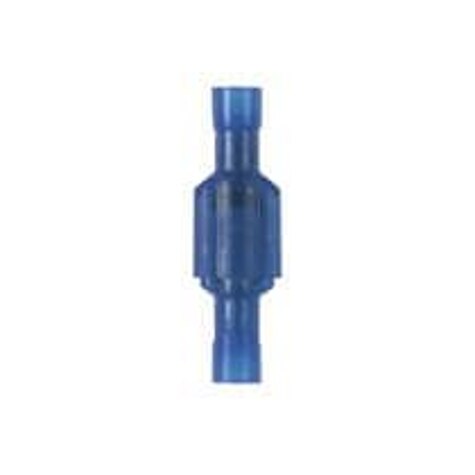

 Panduit Corp | Free Hanging (In-Line) | Serrated Termination | Crimp | Blue | Standard | Brass | Fully Insulated | 16 AWG | 14 AWG | Nickel | 22.86 mm | 0.9 " | 6.35 mm | 0.25 in | 0.81 mm | 0.032 in | Male |
 Panduit Corp | Free Hanging (In-Line) | Serrated Termination | Crimp | Blue | Standard | Brass | Fully Insulated | 16 AWG | 14 AWG | Tin | 24.64 mm | 0.97 in | 6.35 mm | 0.25 in | 0.81 mm | 0.032 in | Male |
