77135 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

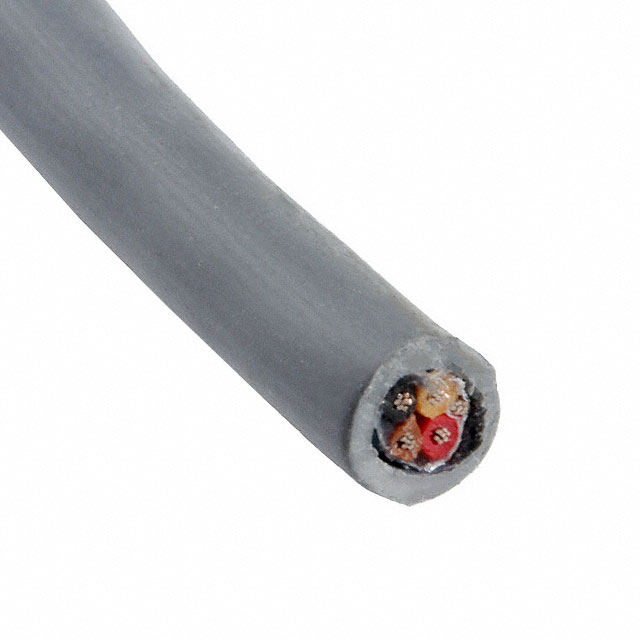

CABLE 4COND 16AWG SHLD
| Part | Shield Coverage | Shield Material | Wire Gauge | Voltage | Ratings | Cable Type | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [diameter] | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 16 AWG | 600 V | ISO 10993 | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | 19 | 0.0117 in | Polyphenylene Ether Modified (mPPE) | -50 °C | 105 ░C | Foil | Copper Tinned | 6.68 mm | 0.263 " | 304.8 m | 1000 ft | 4 | 0.813 mm | 0.032 in | Slate | Biological Compatibility |
