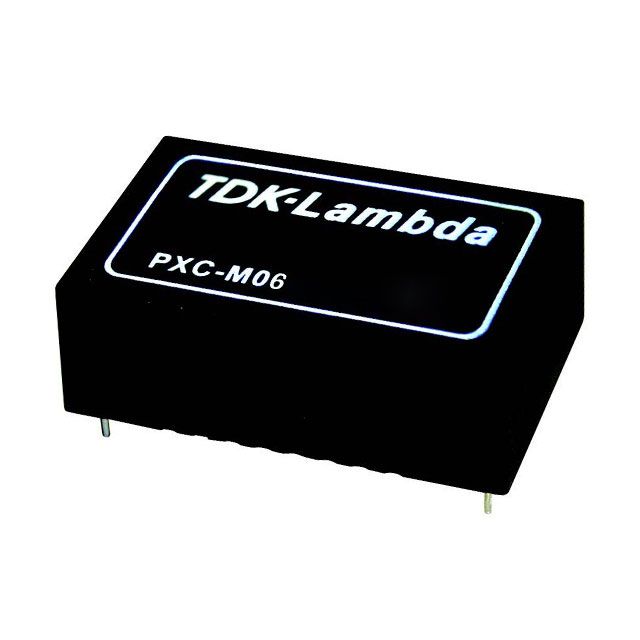

PXC-M06 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, DIP, 4:1, 6 W, 1 OUTPUT, 24 V

Part	Power (Watts)	Number of Outputs	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Voltage - Output 1	Mounting Type	Efficiency	Applications	Supplier Device Package	Package / Case	Current - Output (Max) [Max]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max) [Min]
TDK Corporation PXC-M06-48WS24-A	6 W	1	OCP OVP SCP	105 C	-40 °C	75 V	18 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	24 V	Through Hole	88 %	Medical	24-DIP	24-DIP Module 5 Leads	250 mA
TDK Corporation PXC-M06-24WS15-A	6 W	1	OCP OVP SCP	105 C	-40 °C	36 V	9 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	15 V	Through Hole	89 %	Medical	24-DIP	24-DIP Module 5 Leads	400 mA
TDK Corporation PXC-M06-24WD12-A	6 W	2	OCP OVP SCP	105 C	-40 °C	36 V	9 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	12 V	Through Hole	88.5 %	Medical	24-DIP	24-DIP Module 6 Leads		-12 V	250 mA
TDK Corporation PXC-M06-24WD15-A	6 W	2	OCP OVP SCP	105 C	-40 °C	36 V	9 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	15 V	Through Hole	88.5 %	Medical	24-DIP	24-DIP Module 6 Leads		-15 V
TDK Corporation PXC-M06-24WS05-A	6 W	1	OCP OVP SCP	105 C	-40 °C	36 V	9 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	5 V	Through Hole	86 %	Medical	24-DIP	24-DIP Module 5 Leads	1.2 A
TDK Corporation PXC-M06-48WS15-A	6 W	1	OCP OVP SCP	105 C	-40 °C	75 V	18 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	15 V	Through Hole	88.5 %	Medical	24-DIP	24-DIP Module 5 Leads	400 mA
TDK Corporation PXC-M06-48WS12-A	6 W	1	OCP OVP SCP	105 C	-40 °C	75 V	18 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	12 V	Through Hole	88 %	Medical	24-DIP	24-DIP Module 5 Leads	500 mA
TDK Corporation PXC-M06-24WS24-A	6 W	1	OCP OVP SCP	105 C	-40 °C	36 V	9 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	24 V	Through Hole	88.5 %	Medical	24-DIP	24-DIP Module 5 Leads	250 mA
TDK Corporation PXC-M06-48WD15-A	6 W	2	OCP OVP SCP	105 C	-40 °C	75 V	18 V	0.8 "	0.4 " 0.41 in	31.8 mm	10.2 mm 10.5 mm	20.3 mm	1.25 in	Isolated Module	15 V	Through Hole	87 %	Medical	24-DIP	24-DIP Module 6 Leads		-15 V
TDK Corporation PXC-M06-48WD05-A	6 W	2	OCP OVP SCP	105 C	-40 °C	75 V	18 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	5 V	Through Hole	85 %	Medical	24-DIP	24-DIP Module 6 Leads	600 mA	-5 V		600 mA
