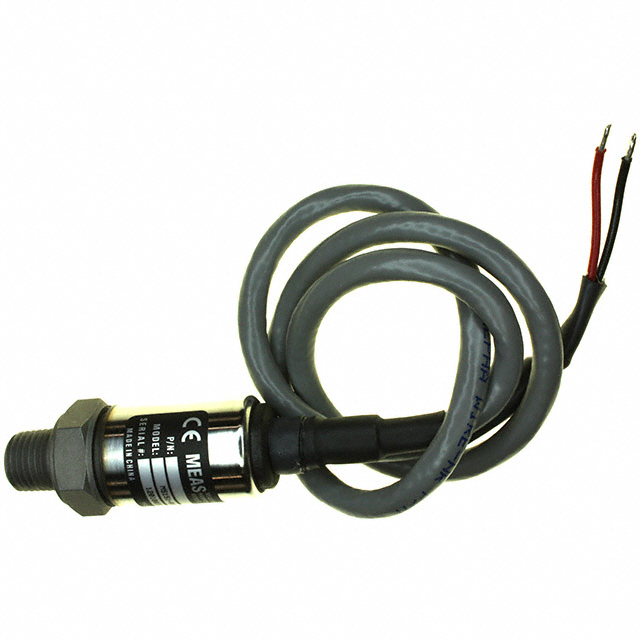

M5151 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
TRANSMITTER, GAUGE, 500PSI, ANALOG
| Part | Package / Case | Termination Style | Applications | Accuracy | Features | Voltage - Supply [Min] | Voltage - Supply [Max] | Pressure Type | Output Type | Output [Min] | Output [Max] | Port Style | Maximum Pressure | Maximum Pressure | Operating Pressure | Operating Pressure | Operating Temperature [Max] | Operating Temperature [Min] | Port Size | Port Size | Port Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Cylinder | Cable 2' | Industrial Automation | 1 % | Temperature Compensated | 9 V | 30 VDC | Vented Gauge | Analog Current | 4 mA | 20 mA | Threaded | 6894.76 kPa | 1000 PSI | 500 PSI | 3447.38 kPa | 125 °C | -40 C | Male NPT | 0.25 " | 0.25 in |
 TE Connectivity AMP Connectors | Cylinder | Cable 2' | Industrial Automation | 1 % | Temperature Compensated | 9 V | 30 VDC | Vented Gauge | Analog Current | 4 mA | 20 mA | Threaded | 689.48 kPa | 100 PSI | 50 PSI | 344.74 kPa | 125 °C | -40 C | Male NPT | 0.25 " | 0.25 in |
 TE Connectivity AMP Connectors | Cylinder | Cable 2' | Industrial Automation | 1 % | Temperature Compensated | 9 V | 30 VDC | Vented Gauge | Analog Current | 4 mA | 20 mA | Threaded | 3447.38 kPa | 500 PSI | 250 PSI | 1723.69 kPa | 125 °C | -40 C | Male NPT | 0.25 " | 0.25 in |
