150216 Series

Catalog

CONN RCPT 16P 0.079 GOLD PCB R/A

Part	Contact Material	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Style	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Type	Termination	Fastening Type	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Number of Positions Loaded	Contact Finish - Post	Number of Positions	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Features
3M Electronic Specialty 150216-5002-TH	Copper Alloy	Square	Thermoplastic	200 µin	5.08 µm	4.55 mm	0.179 in	500 V	0.38 µm	15 µin	Receptacle	Board to Board Cable	0.079 "	2 mm	Right Angle Through Hole	Female Socket	Solder	Push-Pull	0.1 in	2.54 mm	2	All	Tin-Lead	16	UL94 V-0	-55 C	105 ░C	Gold	Black	2 mm	0.079 in
3M Electronic Specialty 150216-6002-RB	Copper Alloy	Square	Thermoplastic	200 µin	5.08 µm	4.5 mm	0.177 in	500 V	0.76 Ám	30 Áin	Receptacle	Board to Board Cable	0.079 "	2 mm	Through Hole	Female Socket	Solder	Push-Pull	0.1 in	2.54 mm	2	All	Tin	16	UL94 V-0	-55 C	105 ░C	Gold	Black	2 mm	0.079 in
3M Electronic Specialty 150216-2020-TB	Copper Alloy	Square	Thermoplastic	200 µin	5.08 µm	4.65 mm	0.183 in	500 V	0.76 Ám	30 Áin	Receptacle	Board to Board Cable	0.079 "	2 mm	Surface Mount	Female Socket	Solder	Push-Pull			2	All	Tin-Lead	16	UL94 V-0	-55 C	105 ░C	Gold	Black	2 mm	0.079 in	Board Guide
3M Electronic Specialty 150216-2000-RB	Copper Alloy	Square	Thermoplastic	200 µin	5.08 µm	4.65 mm	0.183 in	500 V	0.76 Ám	30 Áin	Receptacle	Board to Board Cable	0.079 "	2 mm	Surface Mount	Female Socket	Solder	Push-Pull			2	All	Tin	16	UL94 V-0	-55 C	105 ░C	Gold	Black	2 mm	0.079 in
3M Electronic Specialty 150216-6002-TB	Copper Alloy	Square	Thermoplastic	200 µin	5.08 µm	4.5 mm	0.177 in	500 V	0.76 Ám	30 Áin	Receptacle	Board to Board Cable	0.079 "	2 mm	Through Hole	Female Socket	Solder	Push-Pull	0.1 in	2.54 mm	2	All	Tin-Lead	16	UL94 V-0	-55 C	105 ░C	Gold	Black	2 mm	0.079 in

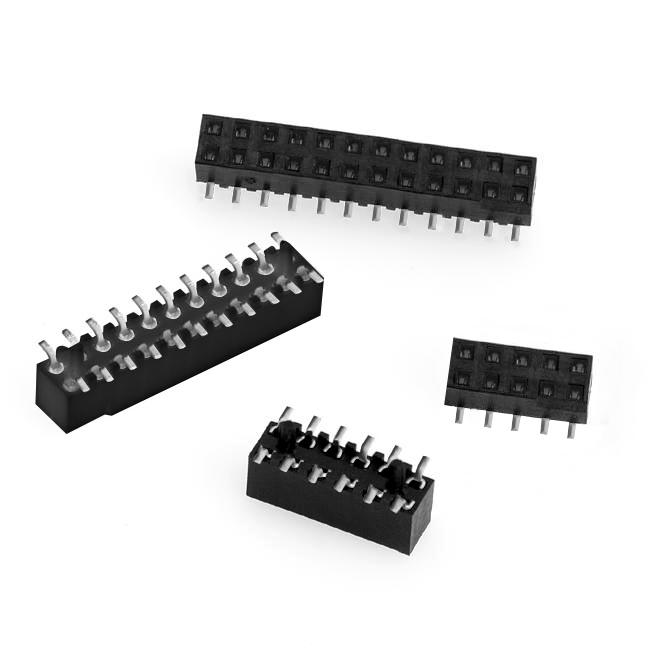

3M Electronic Specialty 150216-2020-RB	Copper Alloy	Square	Thermoplastic	200 µin	5.08 µm	4.65 mm	0.183 in	500 V	0.76 Ám	30 Áin	Receptacle	Board to Board Cable	0.079 "	2 mm	Surface Mount	Female Socket	Solder	Push-Pull			2	All	Tin	16	UL94 V-0	-55 C	105 ░C	Gold	Black	2 mm	0.079 in	Board Guide
