5424.1153 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

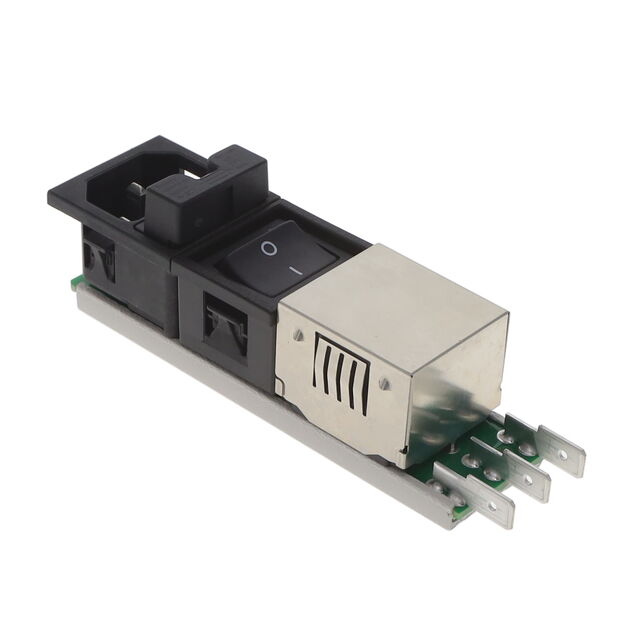

PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Switch Features | Number of Positions | Approval Agency | Connector Style | Fuse Holder, Drawer | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Filter Type | Current Rating - Filter | Mounting Type | Accomodates a Fuse | Material Flammability Rating | Ingress Protection | Panel Thickness | Panel Thickness | Connector Type | Termination | Termination | Termination | Current Rating - Appliance Inlet | Voltage Rating - Appliance Inlet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | Switch On-Off | 3 | cULus ENEC | IEC 320-C14 | Fuse Holder | 87.9 mm | 27.6 mm | Filtered (EMI RFI) - Commercial | 1 A | Panel Mount Snap-In | UL94 V-0 | IP40 | 0.118 " | 3 mm | Receptacle Male Blades - Module | 6.3 mm | Quick Connect | 0.25 " | 10 A | 250 VAC | |
 SCHURTER Inc. | Switch On-Off | 3 | cULus ENEC | IEC 320-C14 | Fuse Holder | 87.9 mm | 27.6 mm | Filtered (EMI RFI) - Commercial | 1 A | Panel Mount Snap-In | UL94 V-0 | IP40 | 0.059 in | 1.5 mm | Receptacle Male Blades - Module | 6.3 mm | Quick Connect | 0.25 " | 10 A | 250 VAC |
