SDF-V15 Series
Manufacturer: NorComp Inc.
Beta
⌘K

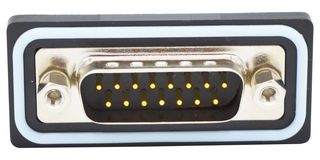

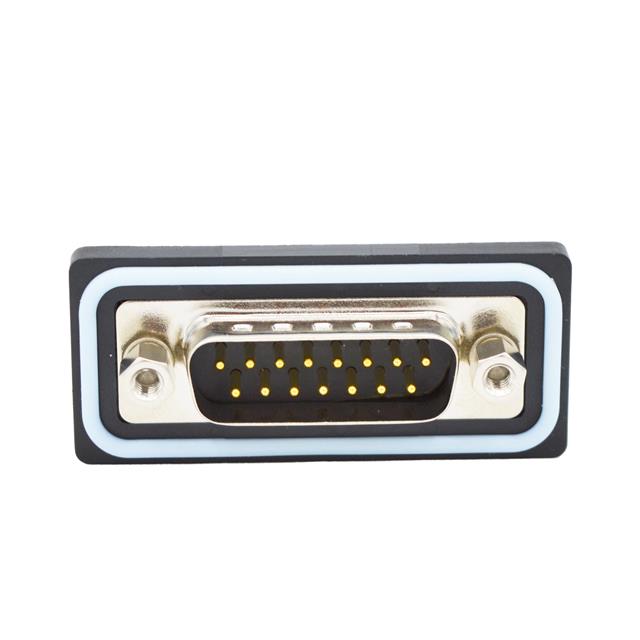

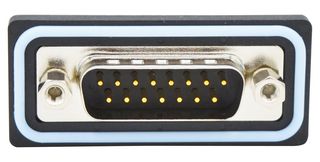

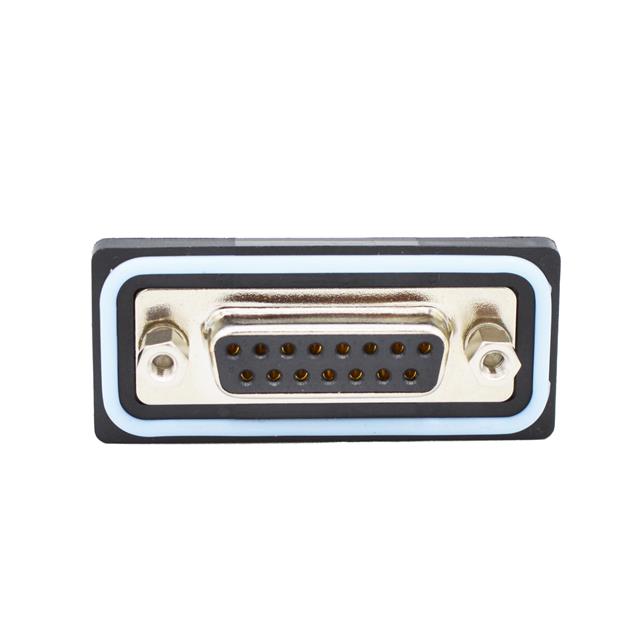

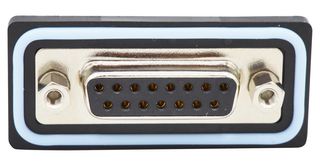

D SUB CONNECTOR, IP67, STANDARD, PLUG, NANOOK SERIES, 15 CONTACTS, DA, SOLDER
| Part | Color | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Number of Positions | Contact Finish | Mounting Type | Shell Size, Connector Layout | Termination | Material Flammability Rating | Number of Rows [custom] | Current Rating (Amps) | Contact Type | Ingress Protection | Connector Style | Flange Feature | Shell Material, Finish | Features | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Black | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | 15 | Gold | Panel Mount Through Hole | 2 | Solder | UL94 V-0 | 2 | 5 A | Signal | IP67 - Dust Tight Waterproof | D-Sub | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | Grounding Indents | 30 Áin | 0.76 Ám | Plug Male Pins | |
 NorComp Inc. | Black | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | 15 | Gold | Panel Mount Through Hole | 2 | Solder | UL94 V-0 | 2 | 5 A | Signal | IP67 - Dust Tight Waterproof | D-Sub | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | 30 Áin | 0.76 Ám | Receptacle Female Sockets | ||
 NorComp Inc. | Black | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | 15 | Gold | Panel Mount Through Hole | 2 | Solder | UL94 V-0 | 2 | 5 A | Signal | IP67 - Dust Tight Waterproof | D-Sub | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | Board Lock | Receptacle Female Sockets | Flash | ||
 NorComp Inc. | Black | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | 15 | Gold | Panel Mount Through Hole | 2 | Solder | UL94 V-0 | 2 | 5 A | Signal | IP67 - Dust Tight Waterproof | D-Sub | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | Grounding Indents | Plug Male Pins | Flash | ||
 NorComp Inc. | Black | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | 15 | Gold | Panel Mount Through Hole | 2 | Solder | UL94 V-0 | 2 | 5 A | Signal | IP67 - Dust Tight Waterproof | D-Sub | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | Board Lock Grounding Indents | 30 Áin | 0.76 Ám | Plug Male Pins | |
NorComp Inc. | Black | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | 15 | Gold | Panel Mount Through Hole | 2 | Solder | UL94 V-0 | 2 | 5 A | Signal | IP67 - Dust Tight Waterproof | D-Sub | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | Receptacle Female Sockets | Flash |
