305-082 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 82POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Read Out	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Color	Contact Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mounting Type	Card Type	Contact Finish	Number of Positions/Bay/Row	Termination	Features

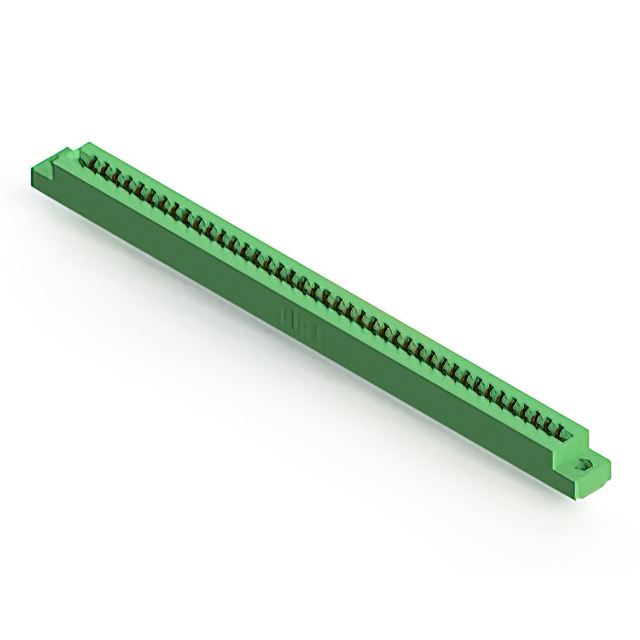

EDAC Inc. 305-082-521-204	Polyester Thermoplastic	2	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Copper Alloy	-40 C	105 ░C	Female	Green	Semi Bellows	3.96 mm	0.156 in	0.25 Ám	10 Áin	82	Panel Mount Through Hole	Non Specified - Dual Edge	Gold	41	Solder
EDAC Inc. 305-082-555-578	Polyester Thermoplastic	2	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	-40 C	105 ░C	Female	Green	Semi Bellows	3.96 mm	0.156 in	0.25 Ám	10 Áin	82	Board Edge Straddle Mount	Non Specified - Dual Edge	Gold	41	Solder	Card Extender Card Guides

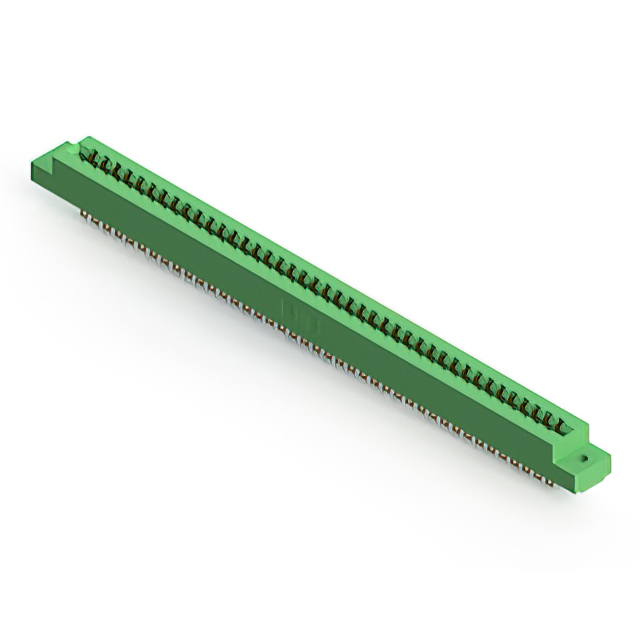

EDAC Inc. 305-082-555-202	Polyester Thermoplastic	2	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	-40 C	105 ░C	Female	Green	Semi Bellows	3.96 mm	0.156 in	0.25 Ám	10 Áin	82	Board Edge Straddle Mount	Non Specified - Dual Edge	Gold	41	Solder	Card Extender

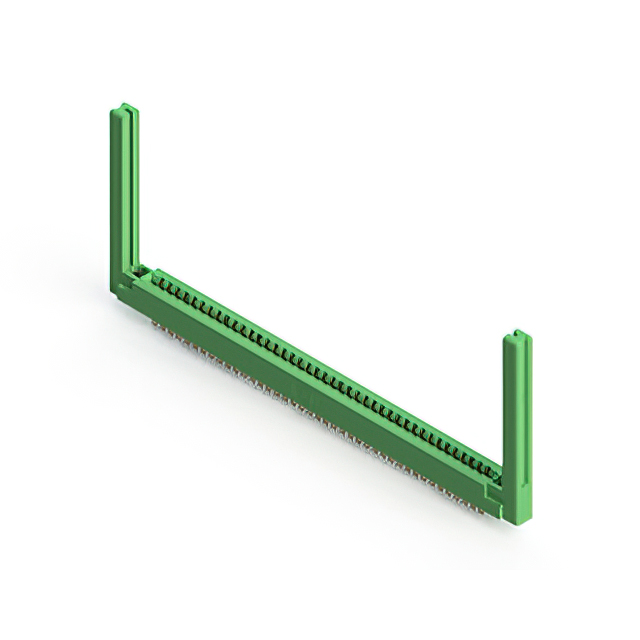

EDAC Inc. 305-082-555-258	Polyester Thermoplastic	2	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	-40 C	105 ░C	Female	Green	Semi Bellows	3.96 mm	0.156 in	0.25 Ám	10 Áin	82	Board Edge Straddle Mount	Non Specified - Dual Edge	Gold	41	Solder	Card Extender Card Guides

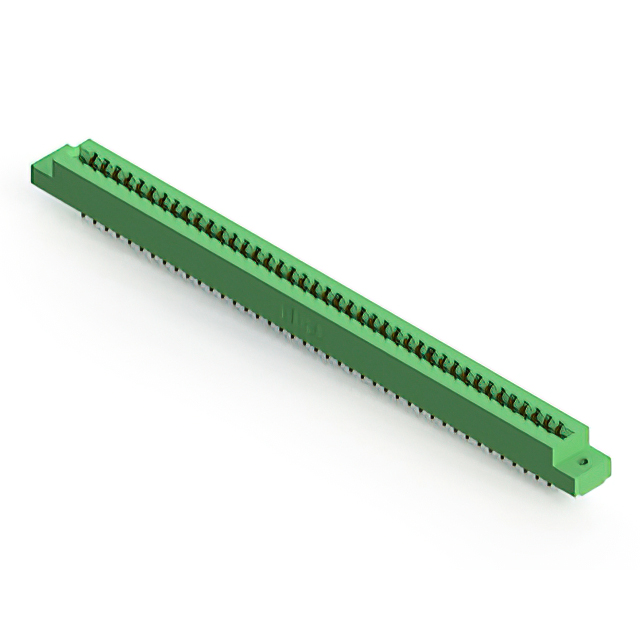

EDAC Inc. 305-082-556-502	Polyester Thermoplastic	2	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	-40 C	105 ░C	Female	Green	Semi Bellows	3.96 mm	0.156 in	0.25 Ám	10 Áin	82	Board Edge Straddle Mount	Non Specified - Dual Edge	Gold	41	Solder	Card Extender
EDAC Inc. 305-082-555-568	Polyester Thermoplastic	2	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	-40 C	105 ░C	Female	Green	Semi Bellows	3.96 mm	0.156 in	0.25 Ám	10 Áin	82	Board Edge Straddle Mount	Non Specified - Dual Edge	Gold	41	Solder	Card Extender Card Guides

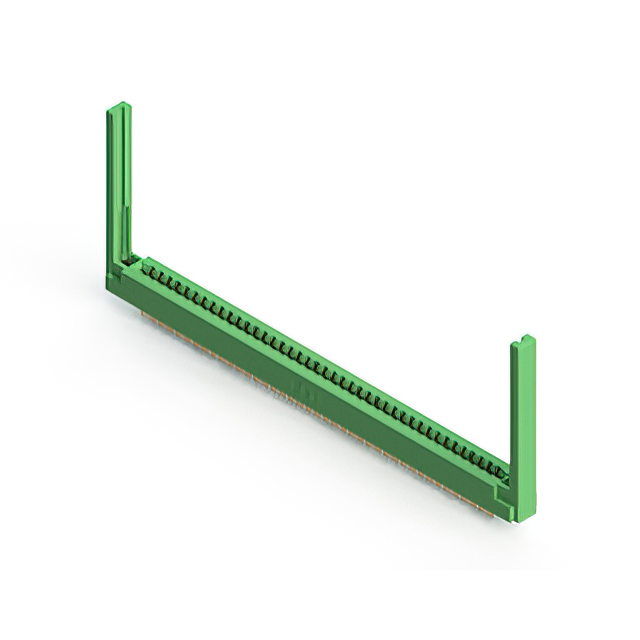

EDAC Inc. 305-082-500-268	Polyester Thermoplastic	2	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	-40 C	105 ░C	Female	Green	Semi Bellows	3.96 mm	0.156 in	0.25 Ám	10 Áin	82	Panel Mount	Non Specified - Dual Edge	Gold	41	Solder Eyelet(s)

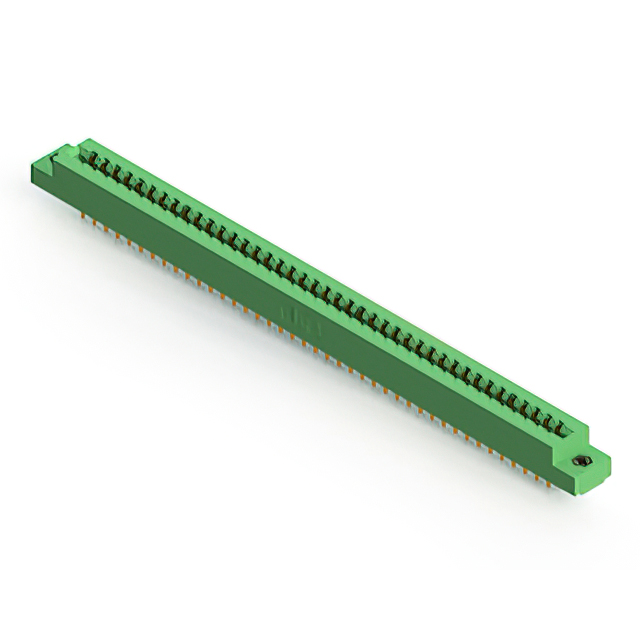

EDAC Inc. 305-082-520-508	Polyester Thermoplastic	2	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	-40 C	105 ░C	Female	Green	Semi Bellows	3.96 mm	0.156 in	0.25 Ám	10 Áin	82	Panel Mount Through Hole	Non Specified - Dual Edge	Gold	41	Solder

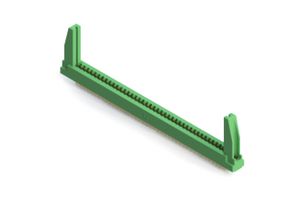

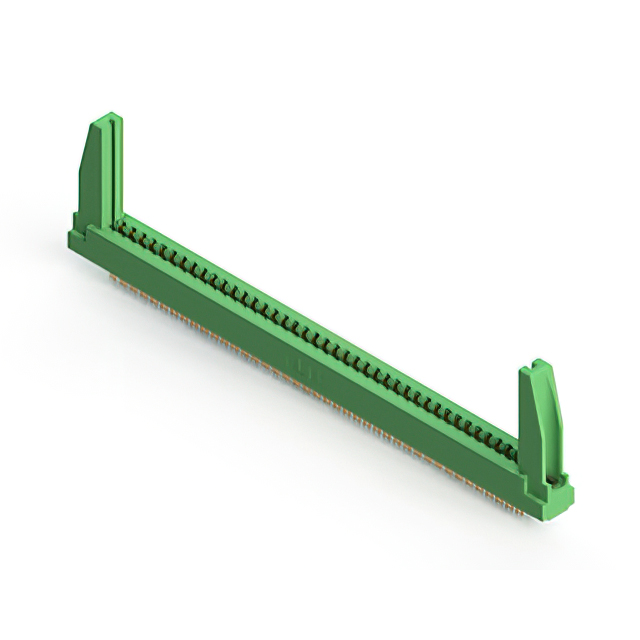

EDAC Inc. 305-082-500-578	Polyester Thermoplastic	2	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	-40 C	105 ░C	Female	Green	Semi Bellows	3.96 mm	0.156 in	0.25 Ám	10 Áin	82	Panel Mount	Non Specified - Dual Edge	Gold	41	Solder Eyelet(s)
EDAC Inc. 305-082-500-558	Polyester Thermoplastic	2	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	-40 C	105 ░C	Female	Green	Semi Bellows	3.96 mm	0.156 in	0.25 Ám	10 Áin	82	Panel Mount	Non Specified - Dual Edge	Gold	41	Solder Eyelet(s)
