DD50 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

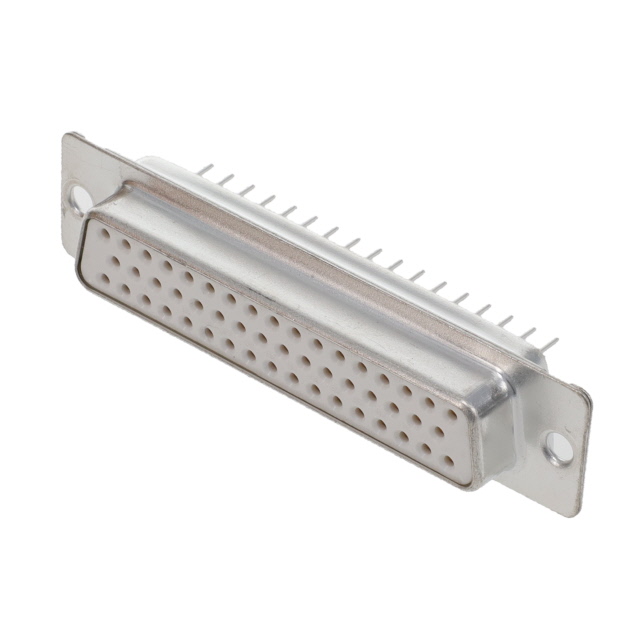

DSUB SIGNAL STC 50SOCKET
| Part | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Dielectric Material | Contact Finish | Contact Type | Flange Feature | Number of Positions | Color | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage Rating | Current Rating (Amps) | Connector Style | Contact Finish Thickness | Termination | Contact Material | Backset Spacing | Backset Spacing | Material Flammability Rating | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 3 | 0.76 Ám | 30 Áin | 5 | Thermoplastic | Gold GXT™ | Signal | Housing/Shell (Unthreaded) | 50 | Natural | Receptacle Female Sockets | -55 °C | 125 °C | Free Hanging (In-Line) | 300 VDC | 5 A | D-Sub | ||||||||
Amphenol ICC (FCI) | 3 | 5 | Signal | 50 | Receptacle Female Sockets | D-Sub | |||||||||||||||||||
Amphenol ICC (FCI) | 3 | 5 | Thermoplastic | Gold | Signal | Housing/Shell (Unthreaded) | 50 | Natural | Receptacle Female Sockets | -55 °C | 125 °C | Free Hanging (In-Line) | 300 VDC | 5 A | D-Sub | Flash | |||||||||
 Amphenol ICC (FCI) | 3 | 5 | Thermoplastic | Gold | Signal | Housing/Shell (Unthreaded) | 50 | Receptacle Female Sockets | -55 °C | 125 °C | Through Hole | 300 VDC | 5 A | D-Sub | Flash | Solder | Copper Alloy | ||||||||
Amphenol ICC (FCI) | 3 | 5 | Thermoplastic | Gold GXT™ | Signal | Housing/Shell (Unthreaded) | 50 | Receptacle Female Sockets | -55 °C | 125 °C | Through Hole Right Angle | 300 VDC | 5 A | D-Sub | Flash | Solder | Copper Alloy | 0.409 in | 10.4 mm | UL94 V-0 | |||||
Amphenol ICC (FCI) | 3 | 0.76 Ám | 30 Áin | 5 | Thermoplastic | Gold GXT™ | Signal | Housing/Shell (Unthreaded) | 50 | Receptacle Female Sockets | -55 °C | 125 °C | Through Hole | 300 VDC | 5 A | D-Sub | Solder | Copper Alloy | |||||||
Amphenol ICC (FCI) | 3 | 0.76 Ám | 30 Áin | 5 | Thermoplastic | Gold GXT™ | Signal | Housing/Shell (Unthreaded) | 50 | Male Pins Plug | -55 °C | 125 °C | Through Hole Right Angle | 300 VDC | 5 A | D-Sub | Solder | Copper Alloy | 0.409 in | 10.4 mm | UL94 V-0 | Grounding Indents Mounting Brackets | |||
Amphenol ICC (FCI) | 3 | 0.76 Ám | 30 Áin | 5 | Thermoplastic | Gold GXT™ | Signal | Housing/Shell (Unthreaded) | 50 | Male Pins Plug | -55 °C | 125 °C | Through Hole Right Angle | 5 A | D-Sub | Solder | Grounding Indents | ||||||||
Amphenol ICC (FCI) | 3 | 5 | Thermoplastic | Gold | Signal | Housing/Shell (Unthreaded) | 50 | Receptacle Female Sockets | -55 °C | 125 °C | Through Hole Right Angle | 5 A | D-Sub | Flash | Solder | ||||||||||
Amphenol ICC (FCI) | 3 | 5 | Thermoplastic | Gold GXT™ | Signal | Housing/Shell (Unthreaded) | 50 | Male Pins Plug | Through Hole Right Angle | 300 VDC | 5 A | D-Sub | Flash | Solder | UL94 V-0 | Grounding Indents | -55 °C |
