337-010 Series
Manufacturer: EDAC Inc.
Beta
⌘K

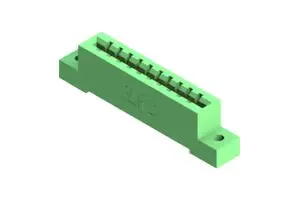

CONN EDGE SGL FMALE 10POS 0.156
| Part | Material - Insulation | Termination Rows | Number of Positions | Number of Positions/Bay/Row | Mounting Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Color | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Number of Rows | Contact Type | Pitch | Pitch | Gender | Contact Finish | Termination | Card Type | Read Out | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

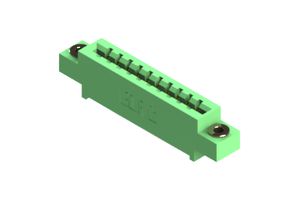

 EDAC Inc. | Polyester Thermoplastic | 1 | 10 | 10 | Through Hole | Copper Alloy | -40 C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 3.96 mm | 0.156 in | Female | Gold | Wire Wrap | Non Specified - Single Edge | Single | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 10 | 10 | Through Hole | Copper Alloy | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 3.96 mm | 0.156 in | Female | Gold | Solder Eyelet(s) | Non Specified - Single Edge | Single | 3.25 mm | 0.128 " | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 10 | 10 | Right Angle Through Hole | Copper Alloy | -40 C | 105 ░C | Floating Bobbin Top Mount Opening | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 3.96 mm | 0.156 in | Female | Gold | Wire Wrap | Non Specified - Single Edge | Single | 2.95 mm | 0.116 " | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 10 | 10 | Through Hole | Copper Alloy | -40 C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 3.96 mm | 0.156 in | Female | Gold | Solder | Non Specified - Single Edge | Single | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 10 | 10 | Right Angle Through Hole | Copper Alloy | -40 C | 105 ░C | Side Mount Opening Unthreaded | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 3.96 mm | 0.156 in | Female | Gold | Wire Wrap | Non Specified - Single Edge | Single | 3.25 mm | 0.128 " | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 10 | 10 | Through Hole | Copper Alloy | -40 C | 105 ░C | Flush Mount Side Opening Unthreaded | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 3.96 mm | 0.156 in | Female | Gold | Solder | Non Specified - Single Edge | Single | 3.25 mm | 0.128 " | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 10 | 10 | Through Hole | Copper Alloy | -40 C | 105 ░C | Floating Bobbin Top Mount Opening | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 3.96 mm | 0.156 in | Female | Gold | Solder | Non Specified - Single Edge | Single | 2.95 mm | 0.116 " | |

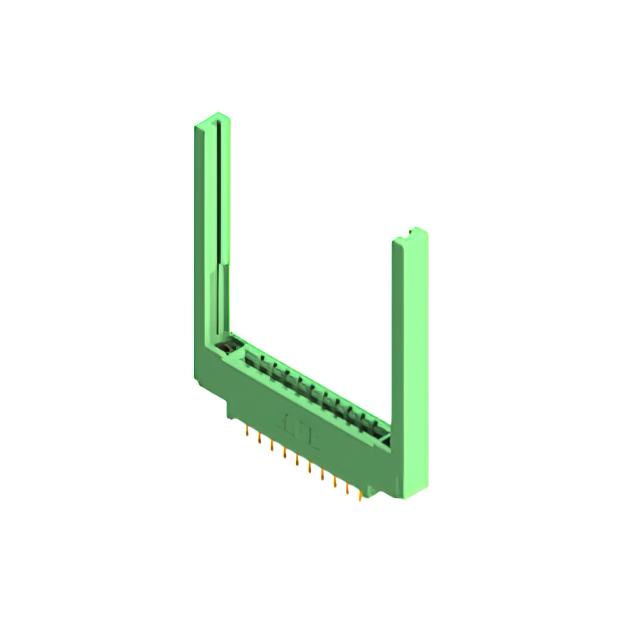

 EDAC Inc. | Polyester Thermoplastic | 1 | 10 | 10 | Right Angle Through Hole | Copper Alloy | -40 C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 3.96 mm | 0.156 in | Female | Gold | Wire Wrap | Non Specified - Single Edge | Single | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 10 | 10 | Through Hole | Copper Alloy | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 3.96 mm | 0.156 in | Female | Gold | Solder | Non Specified - Single Edge | Single | 3.25 mm | 0.128 " | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 10 | 10 | Through Hole | Copper Alloy | -40 C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 3.96 mm | 0.156 in | Female | Gold | Solder | Non Specified - Single Edge | Single | Card Guides |
