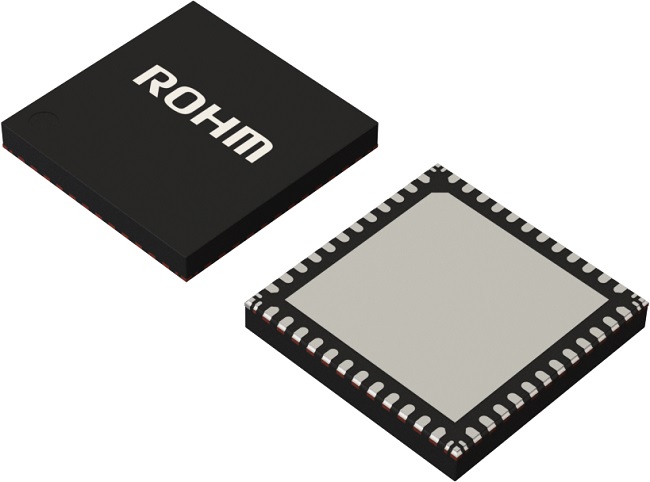

BD12801MUF-M Series

16-channel Constant Current Driver Embedded Automotive Backlight LED Driver

Catalog

16-channel Constant Current Driver Embedded Automotive Backlight LED Driver

Part	Topology	Package / Case	Voltage - Supply (Max) [Max]	Current - Output / Channel	Applications	Number of Outputs	Voltage - Supply (Min) [Min]	Dimming	Mounting Type	Supplier Device Package	Qualification	Grade	Operating Temperature [Max]	Operating Temperature [Min]	Internal Switch(s)	Type
Rohm Semiconductor BD12801MUF-ME2	Constant Current	48-VFQFN Exposed Pad	5.5 V	130 mA	Backlight	16	3 V	PWM SPI	Surface Mount	VQFN48FAV070	AEC-Q100	Automotive	125 °C	-40 C		Linear

Catalog

16-channel Constant Current Driver Embedded Automotive Backlight LED Driver

Description

BD12801MUF-M is 16-channel constant current driver with 13bit PWM dimming and 8bit local DC dimming individual channels. Communication with µController via SPI is feasible.
