TPS62135 Series
Manufacturer: Texas Instruments
Beta
⌘K
CONV DC-DC 3V TO 17V SYNCHRONOUS STEP DOWN SINGLE-OUT 0.8V TO 12V 4A 11-PIN VQFN-HR T/R
| Part | Output Configuration | Voltage - Input (Min) [Min] | Current - Output | Voltage - Input (Max) [Max] | Mounting Type | Voltage - Output (Min/Fixed) | Function | Number of Outputs | Synchronous Rectifier | Supplier Device Package | Topology | Operating Temperature [Min] | Operating Temperature [Max] | Output Type | Frequency - Switching | Voltage - Output (Max) [Max] | Package / Case | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Voltage - Output | Regulator Topology | Contents | Utilized IC / Part | Voltage - Input [Min] | Voltage - Input [Max] | Main Purpose |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Positive | 3 V | 4 A | 17 V | Surface Mount | 0.8 V | Step-Down | 1 | 11-VQFN-HR (2x3) | Buck | -40 C | 125 °C | Adjustable | 2.5 MHz | 12 V | 11-VFQFN | ||||||||||||
 Texas Instruments | Positive | 3 V | 4 A | 17 V | Surface Mount | 0.8 V | Step-Down | 1 | 11-VQFN-HR (2x3) | Buck | -40 C | 125 °C | Adjustable | 2.5 MHz | 12 V | 11-VFQFN | ||||||||||||
Texas Instruments | Positive | 3 V | 4 A | 17 V | Surface Mount | 0.8 V | Step-Down | 1 | 11-VQFN-HR (2x3) | Buck | -40 °C -40 C | 125 ¯C 125 °C | Adjustable | 2.5 MHz | 12 V | 11-VFQFN | ||||||||||||
Texas Instruments | Positive | 3 V | 4 A | 17 V | Surface Mount | 0.8 V | Step-Down | 1 | 11-VQFN-HR (2x3) | Buck | -40 C | 125 °C | Adjustable | 2.5 MHz | 12 V | 11-VFQFN | ||||||||||||

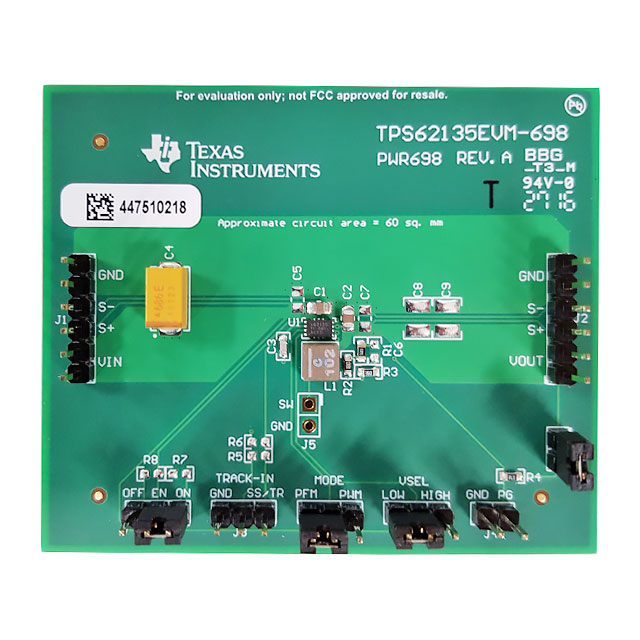

 Texas Instruments | 4 A | 2.5 MHz | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | 3.3 V 5 V | Buck | Board(s) | TPS62135 | 3 V | 17 V | DC/DC Step Down |
