VN10 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K
CONN N PLUG STR 50 OHM SOLDER
| Part | Body Finish | Center Contact Plating | Dielectric Material | Includes | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Body Material | Mating Cycles | Impedance | Shield Termination | Frequency - Max [Max] | Connector Style | Connector Type | Contact Termination | Center Contact Material | Cable Group | Number of Ports | Housing Color | Mounting Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

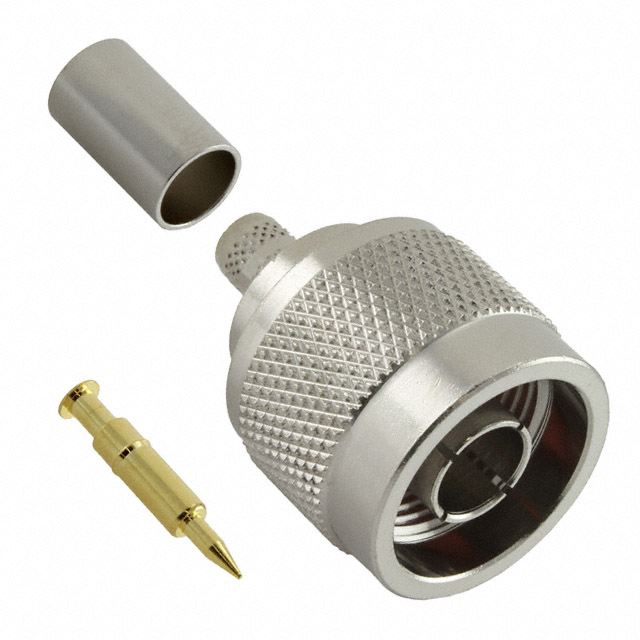

 Cinch Connectivity Solutions | Nickel | Gold | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Contact 1 Ferrule | 1000 VDC | -65 ░C | 165 °C | 0.3 dB | Brass | 500 | 50 Ohms | Crimp | 1 GHz | N Type | Plug Male Pin | Solder | Brass | RG-59 | 1 | Silver | Free Hanging (In-Line) | Threaded |

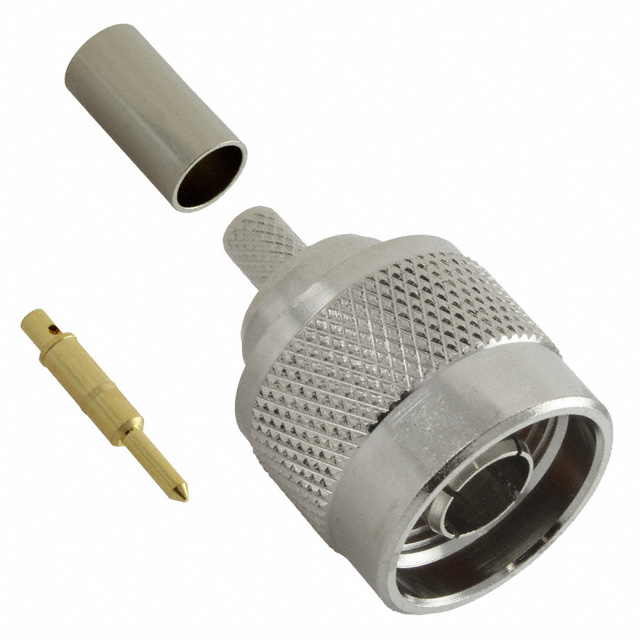

 Cinch Connectivity Solutions | Nickel | Gold | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Contact 1 Ferrule | 1500 V | -65 ░C | 165 °C | 0.17 dB | Brass | 500 | 50 Ohms | Crimp | 11 GHz | N Type | Plug Male Pin | Solder | Brass | RG-58 | 1 | Silver | Free Hanging (In-Line) | Threaded |
