SGA18E24 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

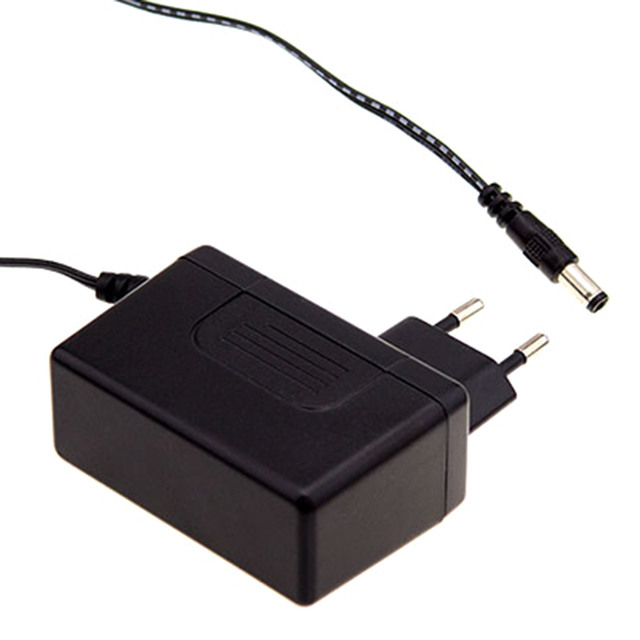

AC/DC WALL MOUNT ADAPTER 24V 18W
| Part | Applications | Polarization | Form | Efficiency | Output Connector [x] | Output Connector [diameter] | Output Connector | Voltage - Input [Max] | Voltage - Input [Min] | Region Utilized | Voltage - Output | Cord Length | Cord Length | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Current - Output (Max) [Max] | Input Type | Input Connector | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Approval Agency | No Load Power Consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | ITE (Commercial) | Positive Center | Wall Mount | Level VI | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | 264 VAC | 90 VAC | Europe | 24 V | 1.5 m | 59 in | 1.26 in | 47.5 mm | 2.97 in | 32 mm | 1.87 in | 75.5 mm | 750 mA | Fixed Blade | CEE 7/16 | -20 ░C | 60 °C | 18 W | CB CE GS | 75 mW |
