A18KV Series

Catalog

PROCESS SEALED SUBMINIATURE TOGGLE

Part	Electrical Life	Actuator Material	Switch Function	Actuator Type	Mounting Type	Voltage Rating - DC	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Bushing Thread	Illumination	Termination Style	Current Rating (Amps)	Features	Circuit	Actuator Length [x]	Mechanical Life	Color - Actuator/Cap	Approval Agency	Actuator Marking

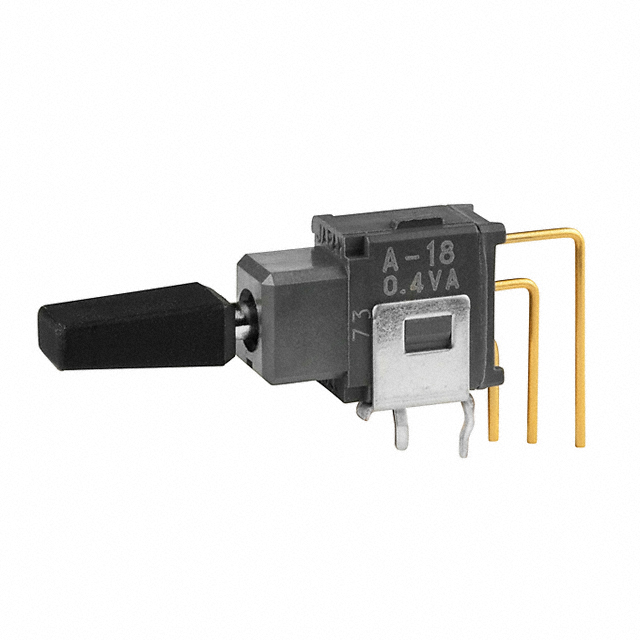

NKK Switches A18KV-AA	50000 Cycles	Glass Filled Nylon Polyamide (PA)	Mom-Off-Mom	Snap On Paddle	Right Angle Through Hole Vertical	28 V	28 V	85 °C	-30 ░C	Unthreaded Square	Non-Illuminated	PC Pin	0.4 VA	Black Actuator	SPDT	9.4 mm
NKK Switches A18KV-CC	50000 Cycles		Mom-Off-Mom	Concave	Right Angle Through Hole Vertical	28 V	28 V	85 °C	-30 ░C			PC Pin	0.4 VA	Process Sealed	SPDT		50000 Cycles	Red	CSA UL	No Marking
NKK Switches A18KV1-BF	50000 Cycles	Glass Filled Nylon Polyamide (PA)	Mom-Off-Mom	Snap On Paddle	Right Angle Through Hole Vertical	28 V	28 V	85 °C	-30 ░C	Unthreaded Square	Non-Illuminated	PC Pin	0.4 VA	Green Actuator	SPDT
NKK Switches A18KV1-CA	50000 Cycles		Mom-Off-Mom	Concave	Right Angle Through Hole Vertical	28 V	28 V	85 °C	-30 ░C			PC Pin	0.4 VA	Process Sealed	SPDT		50000 Cycles	Black	CSA UL	No Marking
NKK Switches A18KV1	50000 Cycles		Mom-Off-Mom	Actuator Arm Cap Required	Right Angle Through Hole Vertical	28 V	28 V	85 °C	-30 ░C			PC Pin	0.4 VA	Process Sealed	SPDT		50000 Cycles		CSA UL	No Marking
NKK Switches A18KV1-CG	50000 Cycles		Mom-Off-Mom	Concave	Right Angle Through Hole Vertical	28 V	28 V	85 °C	-30 ░C			PC Pin	0.4 VA	Process Sealed	SPDT		50000 Cycles	Blue	CSA UL	No Marking
NKK Switches A18KV1-AA	50000 Cycles	Glass Filled Nylon Polyamide (PA)	Mom-Off-Mom	Snap On Paddle	Right Angle Through Hole Vertical	28 V	28 V	85 °C	-30 ░C	Unthreaded Square	Non-Illuminated	PC Pin	0.4 VA	Black Actuator	SPDT	9.4 mm
