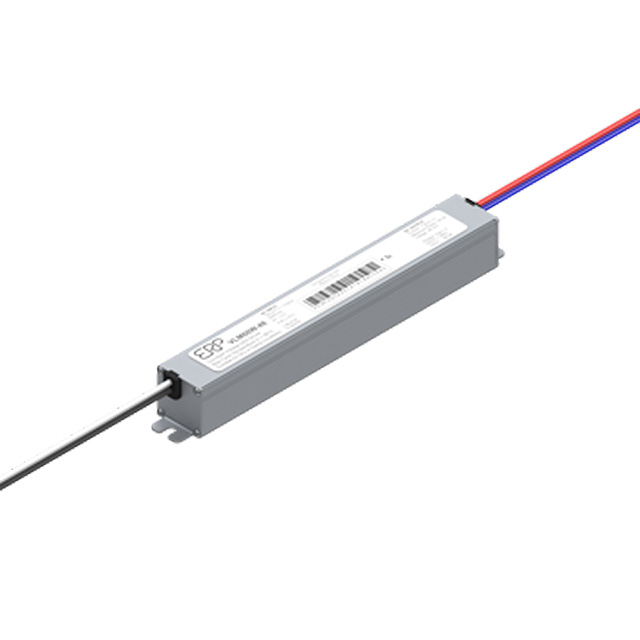

VLM40W Series

Catalog

LED DRIVER CC 120-277VAC 12VDC

Part	Mounting Type	Number of Outputs	Efficiency	Power (Watts)	Voltage - Input (Min) [Min]	Ratings	Approval Agency	Type	Operating Temperature	Voltage - Output	Current - Output (Max) [Max]	Termination Style	Voltage - Input (Max) [Max]	Topology	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
ERP Power, LLC VLM40W-12	Chassis Mount	1	93 %	40 W	120 VAC	IP20	CB CE cULus	Constant Voltage	194 °F	12 V	3.33 A	Wire Leads	277 VAC	AC DC Converter	19.7 mm	0.78 in	5.12 in	19.8 mm	130 mm	0.77 in
ERP Power, LLC VLM40W-48	Chassis Mount	1	93 %	40 W	120 VAC	IP20	CB CE cULus	Constant Voltage	194 °F	48 V	830 mA	Wire Leads	277 VAC	AC DC Converter	19.7 mm	0.78 in	5.12 in	19.8 mm	130 mm	0.77 in
ERP Power, LLC VLM40W-24	Chassis Mount	1	93 %	40 W	120 VAC	IP20	CB CE cULus	Constant Voltage	194 °F	24 V	1.67 A	Wire Leads	277 VAC	AC DC Converter	19.7 mm	0.78 in	5.12 in	19.8 mm	130 mm	0.77 in
