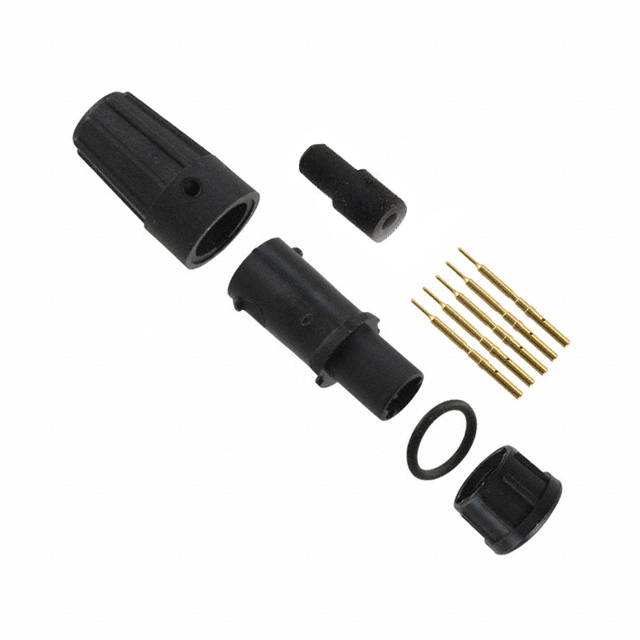

16980-5P Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
CONN PLUG MALE 5POS GOLD CRIMP
| Part | Ingress Protection | Backshell Material, Plating | Contact Finish - Mating | Color | Shielding | Number of Positions | Fastening Type | Material Flammability Rating | Connector Type | Current Rating (Amps) | Orientation | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Contact Material | Mounting Type | Features | Voltage Rating | Applications | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SWITCHCRAFT/CONXALL | IP67 - Dust Tight Waterproof | Thermoplastic | Gold | Black | Unshielded | 5 | Bayonet Lock | UL94 HB | Plug Male Pins | 4 A | B | Plastic | 85 °C | -40 C | Crimp | Copper Alloy | Free Hanging (In-Line) | Backshell | 600 VAC | Data Industrial Instrumentation Medical | ||||
 SWITCHCRAFT/CONXALL | IP67 - Dust Tight Waterproof | Thermoplastic | Gold | Black | Unshielded | 5 | Bayonet Lock | UL94 HB | Plug Male Pins | 4 A | B | Plastic | 85 °C | -40 C | Crimp | Copper Alloy | Free Hanging (In-Line) | Backshell | 600 VAC | Data Industrial Instrumentation Medical | 5.59 mm | 5.84 mm | 0.23 in | 0.22 in |
