320569 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RING CIRC 10AWG #1/4 CRIMP

Part	Stud/Tab Size	Contact Finish	Termination	Material - Insulation	Length - Overall [x]	Length - Overall [x]	Mounting Type	Wire Gauge	Color	Thickness	Thickness	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Width - Outer Edges [custom]	Width - Outer Edges [custom]	Terminal Type	Contact Material	Insulation	Features	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Max]

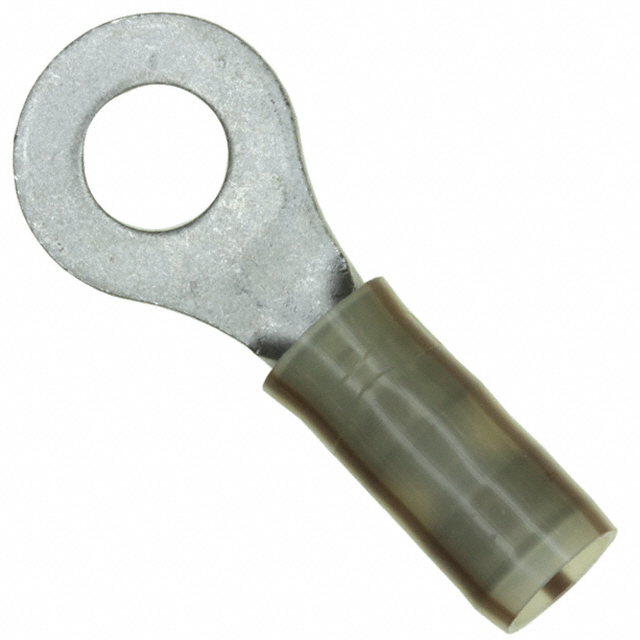

TE Connectivity Raychem Cable Protection 2-320569-6	0.25 Stud	Tin	Crimp	Nylon Polyamide (PA)	35.36 mm	1.392 in	Free Hanging (In-Line)	10 AWG	Yellow Brown Stripe	0.04 in	1.02 mm	3.02 mm	5.08 mm	5.08 mm	0.119 in	13.49 mm	0.531 "	Circular	Copper	Insulated	Insulation Restriction Serrated Termination
TE Connectivity Raychem Cable Protection 8-320569-2	0.25 Stud	Tin	Crimp	Nylon Polyamide (PA)	33.58 mm	1.322 in	Free Hanging (In-Line)		Yellow	0.04 in	1.02 mm					13.49 mm	0.531 "	Circular	Copper	Insulated	Serrated Termination	12 AWG	10 AWG	0.15 "	3.81 mm	0.23 in	5.84 mm
TE Connectivity Raychem Cable Protection 2-320569-5	0.25 Stud	Tin	Crimp	Nylon Polyamide (PA)	35.36 mm	1.392 in	Free Hanging (In-Line)	12 AWG	Yellow Yellow Stripe	0.04 in	1.02 mm					13.49 mm	0.531 "	Circular	Copper	Insulated	Insulation Restriction Serrated Termination			0.095 "	2.41 mm	0.2 "		5.08 mm

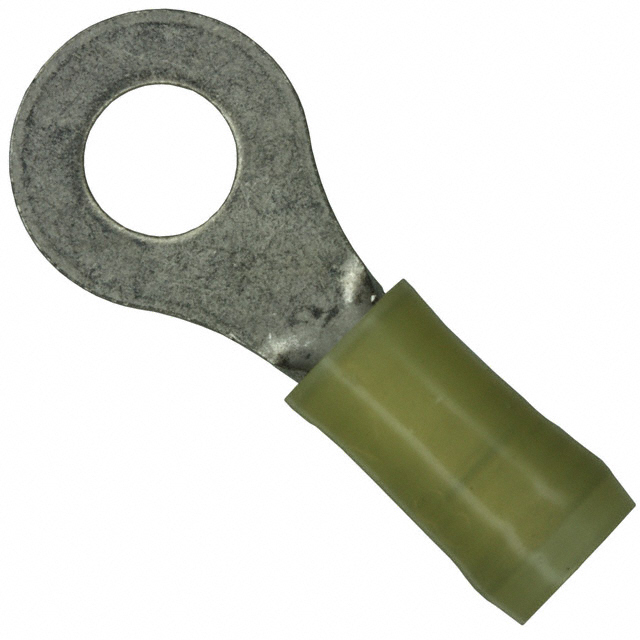

TE Connectivity Raychem Cable Protection 2-320569-3	0.25 Stud	Tin	Crimp	Nylon Polyamide (PA)	33.58 mm	1.322 in	Free Hanging (In-Line)		Yellow	0.04 in	1.02 mm					13.49 mm	0.531 "	Circular	Copper	Insulated	Serrated Termination	12 AWG	10 AWG	0.15 "	3.81 mm	0.23 in	5.84 mm
