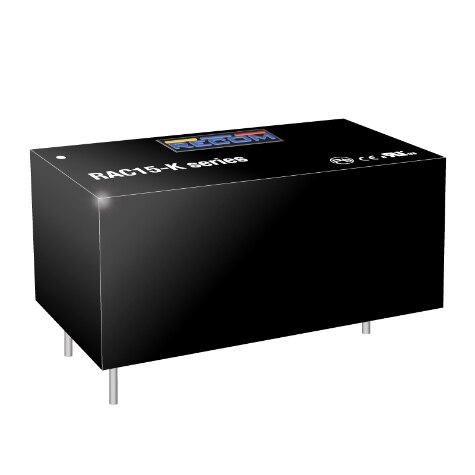

RAC15-K Series
Manufacturer: Recom Power
Beta
⌘K
AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUT, 15 W, 24 V, 625 MA
| Part | Current - Output (Max) [Max] | Type | Approval Agency | Voltage - Output 1 | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Features | Number of Outputs | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Efficiency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Load Regulation | Weight | Weight | Line Regulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 630 mA | Enclosed | CE cURus | 24 V | Through Hole | 85 VAC 120 VDC | 264 VAC 370 VDC | IP20 Universal Input | 1 | Household Appliances ITE (Commercial) | -40 °C | 85 °C | 15 W | 85 % | 27.4 mm | 0.91 in | 2.07 in | 23 mm | 52.5 mm | 1.08 in | 5-DIP Module 4 Leads | ||||
Recom Power | 3 A | Enclosed | CE cURus | 5 V | Through Hole | 85 VAC 120 VDC | 264 VAC 370 VDC | IP20 Universal Input | 1 | Household Appliances ITE (Commercial) | -40 °C | 85 °C | 15 W | 84 % | 27.4 mm | 0.91 in | 2.07 in | 23 mm | 52.5 mm | 1.08 in | 5-DIP Module 4 Leads | 1 % | 59.87 g | 0.132 lb | 1 % |
 Recom Power | 1.67 A | Enclosed | CE cURus | 12 V | Through Hole | 85 VAC 120 VDC | 264 VAC 370 VDC | IP20 Universal Input | 1 | Household Appliances ITE (Commercial) | -40 °C | 85 °C | 15 W | 86 % | 27.4 mm | 0.91 in | 2.07 in | 23 mm | 52.5 mm | 1.08 in | 5-DIP Module 4 Leads | 1 % | 1 % | ||
 Recom Power | 1 A | Enclosed | CE cURus | 15 V | Through Hole | 85 VAC 120 VDC | 264 VAC 370 VDC | IP20 Universal Input | 1 | Household Appliances ITE (Commercial) | -40 °C | 85 °C | 15 W | 86 % | 27.4 mm | 0.91 in | 2.07 in | 23 mm | 52.5 mm | 1.08 in | 5-DIP Module 4 Leads | 1 % | 1 % |
